2-1747277-2

Active

TE Connectivity Raychem Cable Protection

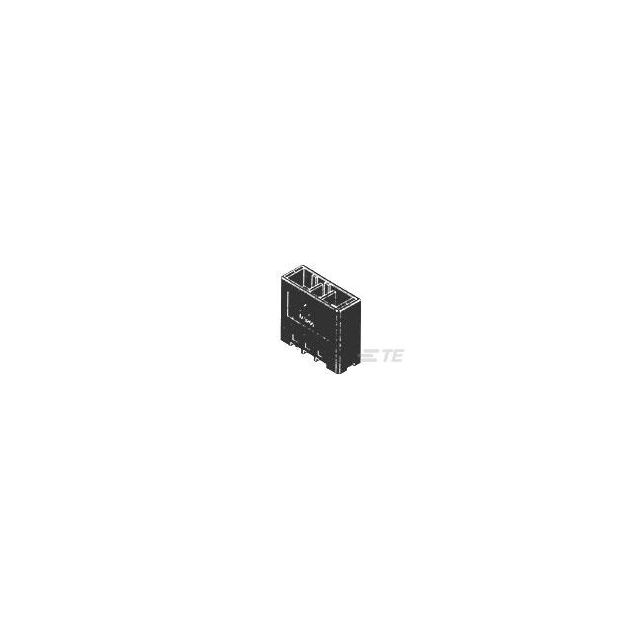

DYNAMIC D4200 V-HDR ASSY 2P/Y

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsENG_CD_1747277_B.pdf Datasheet +3

2-1747277-2

Active

TE Connectivity Raychem Cable Protection

DYNAMIC D4200 V-HDR ASSY 2P/Y

Deep-Dive with AI

DocumentsENG_CD_1747277_B.pdf Datasheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2-1747277-2

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Length - Post [x]	0.15 in
Contact Length - Post [x]	3.81 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	24 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.937 in
Insulation Height	23.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	6.35 mm
Pitch - Mating	0.25 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	600 VAC

Dynamic 4000 Series Series

Headers & Wire Housings DYNAMIC D-4800 REC HSG 8P WITH HTS CONN

Part	Number of Rows	Contact Type	Insulation Material	Row Spacing	Row Spacing	Number of Positions	Contact Termination	Mounting Type	Fastening Type	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Note	Pitch [x]	Pitch [x]	Color	Type	Pin or Socket	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish	Features	Current Rating (Amps)	Number of Positions Loaded	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Insulation Color	Termination	Shrouding	Contact Length - Post [x]	Contact Length - Post [x]	Voltage Rating	Insulation Height	Insulation Height	Contact Shape	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating
TE Connectivity Raychem Cable Protection 3-1903329-3	2	Male Pin	Glass Filled Polyester Thermoplastic	0.346 in	8.8 mm	6	Crimp	Free Hanging (In-Line)	Latch Lock	Receptacle	105 ░C	-55 °C	Contacts Not Included	0.25 in	6.35 mm	Black
TE Connectivity Raychem Cable Protection 1-1747276-3	1	Female Socket	Glass Filled Polyester Thermoplastic				Crimp	Free Hanging (In-Line)	Latch Lock	Receptacle	105 ░C	-55 °C	Contacts Not Included			Black
TE Connectivity Raychem Cable Protection 2-1747276-2	1	Female Socket				2	Crimp	Free Hanging (In-Line)	Latch Lock	Receptacle	105 ░C	-55 °C	Contacts Not Included	0.25 in	6.35 mm	Black
TE Connectivity Raychem Cable Protection 1-1747414-4	1	Tab	Glass Filled Polyester Thermoplastic			4	Crimp	Free Hanging (In-Line)		Plug	105 ░C	-55 °C	Contacts Not Included			Black
TE Connectivity Raychem Cable Protection 1-1747416-2							Crimp										Power	Tab	15 µin	0.38 µm	14 AWG	12 AWG	Gold
TE Connectivity Raychem Cable Protection 1-1903331-3	2	Tab	Glass Filled Polyester Thermoplastic	0.346 in	8.8 mm	6	Crimp			Plug	105 ░C	-55 °C	Contacts Not Included			Black								Mounting Flange
TE Connectivity Raychem Cable Protection 1-1903330-3	2	Tab		0.346 in	8.8 mm	6	Crimp	Free Hanging (In-Line)		Plug			Contacts Not Included			Black
TE Connectivity Raychem Cable Protection 1747415-2							Crimp										Power	Socket	15 µin	0.38 µm	14 AWG	12 AWG	Gold
TE Connectivity Raychem Cable Protection 2-1747277-2	1	Male Pin				2		Through Hole	Push-Pull	Header	105 ░C	-55 °C													24 A	All	Copper Alloy	15 µin	0.38 µm	Board to Board Cable	Black	Solder	Shrouded - 4 Wall	0.15 in	3.81 mm	600 VAC	0.937 in	23.8 mm	Square	Gold	6.35 mm	0.25 in	Tin	2 çm	78.7 çin	UL94 V-0
