1-1747414-4
ActiveTE Connectivity Raychem Cable Protection

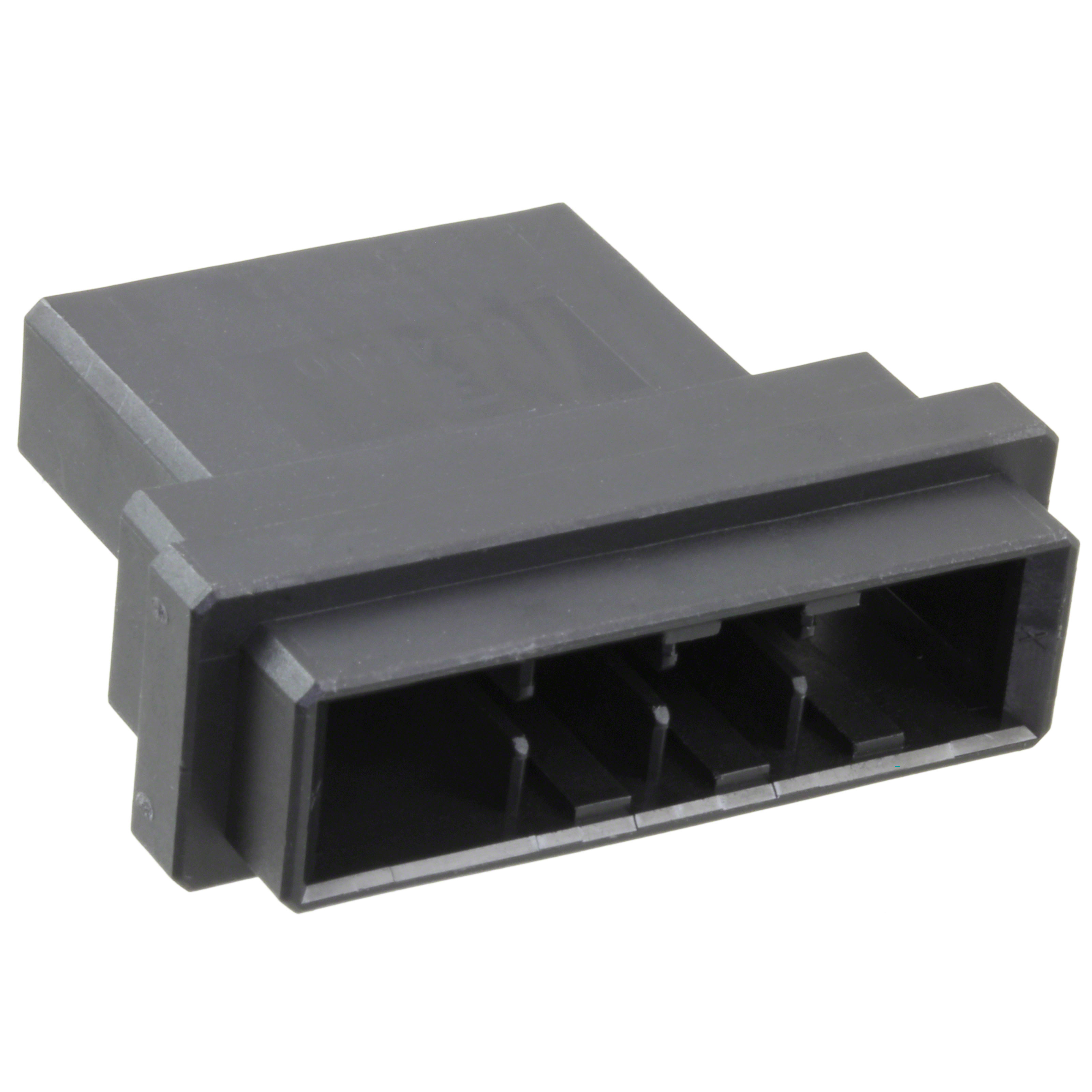

DYNAMIC 4200S TAB HSG 4P F/H X
Deep-Dive with AI
Search across all available documentation for this part.
1-1747414-4
ActiveTE Connectivity Raychem Cable Protection
DYNAMIC 4200S TAB HSG 4P F/H X
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1747414-4 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Insulation Material | Thermoplastic, Glass Filled, Polyester |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
Dynamic 4000 Series Series
Headers & Wire Housings DYNAMIC D-4800 REC HSG 8P WITH HTS CONN
| Part | Number of Rows | Contact Type | Insulation Material | Row Spacing | Row Spacing | Number of Positions | Contact Termination | Mounting Type | Fastening Type | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Note | Pitch [x] | Pitch [x] | Color | Type | Pin or Socket | Contact Finish Thickness | Contact Finish Thickness | Wire Gauge [Max] | Wire Gauge [Min] | Contact Finish | Features | Current Rating (Amps) | Number of Positions Loaded | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Style | Insulation Color | Termination | Shrouding | Contact Length - Post [x] | Contact Length - Post [x] | Voltage Rating | Insulation Height | Insulation Height | Contact Shape | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 2 | Male Pin | Glass Filled Polyester Thermoplastic | 0.346 in | 8.8 mm | 6 | Crimp | Free Hanging (In-Line) | Latch Lock | Receptacle | 105 ░C | -55 °C | Contacts Not Included | 0.25 in | 6.35 mm | Black | ||||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | 1 | Female Socket | Glass Filled Polyester Thermoplastic | Crimp | Free Hanging (In-Line) | Latch Lock | Receptacle | 105 ░C | -55 °C | Contacts Not Included | Black | |||||||||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | 1 | Female Socket | 2 | Crimp | Free Hanging (In-Line) | Latch Lock | Receptacle | 105 ░C | -55 °C | Contacts Not Included | 0.25 in | 6.35 mm | Black | |||||||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | 1 | Tab | Glass Filled Polyester Thermoplastic | 4 | Crimp | Free Hanging (In-Line) | Plug | 105 ░C | -55 °C | Contacts Not Included | Black | |||||||||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Crimp | Power | Tab | 15 µin | 0.38 µm | 14 AWG | 12 AWG | Gold | ||||||||||||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | 2 | Tab | Glass Filled Polyester Thermoplastic | 0.346 in | 8.8 mm | 6 | Crimp | Plug | 105 ░C | -55 °C | Contacts Not Included | Black | Mounting Flange | |||||||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | 2 | Tab | 0.346 in | 8.8 mm | 6 | Crimp | Free Hanging (In-Line) | Plug | Contacts Not Included | Black | ||||||||||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | Crimp | Power | Socket | 15 µin | 0.38 µm | 14 AWG | 12 AWG | Gold | ||||||||||||||||||||||||||||||||||||||
TE Connectivity Raychem Cable Protection | 1 | Male Pin | 2 | Through Hole | Push-Pull | Header | 105 ░C | -55 °C | 24 A | All | Copper Alloy | 15 µin | 0.38 µm | Board to Board Cable | Black | Solder | Shrouded - 4 Wall | 0.15 in | 3.81 mm | 600 VAC | 0.937 in | 23.8 mm | Square | Gold | 6.35 mm | 0.25 in | Tin | 2 çm | 78.7 çin | UL94 V-0 | ||||||||||||||||
TE Connectivity Raychem Cable Protection |
