1-1903331-3

Active

TE Connectivity Raychem Cable Protection

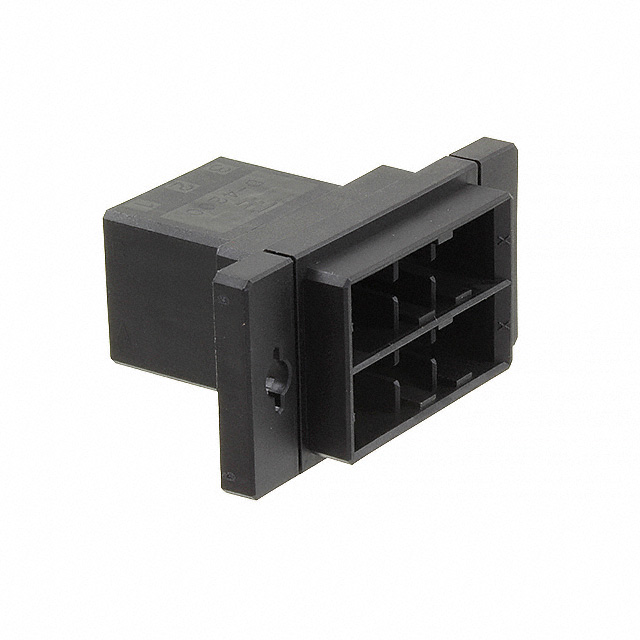

DYNAMIC 4200M TAB HSG 6P P/M XX

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet DYNAMIC CONNECTOR D4000 SERIES CONTACT +3

1-1903331-3

Active

TE Connectivity Raychem Cable Protection

DYNAMIC 4200M TAB HSG 6P P/M XX

Deep-Dive with AI

DocumentsDatasheet DYNAMIC CONNECTOR D4000 SERIES CONTACT +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1-1903331-3

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Tab
Features	Mounting Flange
Insulation Material	Thermoplastic, Glass Filled, Polyester
Note	Contacts Not Included
Number of Positions	6
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Row Spacing	0.346 in
Row Spacing	8.8 mm

Dynamic 4000 Series Series

Headers & Wire Housings DYNAMIC D-4800 REC HSG 8P WITH HTS CONN

Part	Number of Rows	Contact Type	Insulation Material	Row Spacing	Row Spacing	Number of Positions	Contact Termination	Mounting Type	Fastening Type	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Note	Pitch [x]	Pitch [x]	Color	Type	Pin or Socket	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish	Features	Current Rating (Amps)	Number of Positions Loaded	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Insulation Color	Termination	Shrouding	Contact Length - Post [x]	Contact Length - Post [x]	Voltage Rating	Insulation Height	Insulation Height	Contact Shape	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating
TE Connectivity Raychem Cable Protection 3-1903329-3	2	Male Pin	Glass Filled Polyester Thermoplastic	0.346 in	8.8 mm	6	Crimp	Free Hanging (In-Line)	Latch Lock	Receptacle	105 ░C	-55 °C	Contacts Not Included	0.25 in	6.35 mm	Black
TE Connectivity Raychem Cable Protection 1-1747276-3	1	Female Socket	Glass Filled Polyester Thermoplastic				Crimp	Free Hanging (In-Line)	Latch Lock	Receptacle	105 ░C	-55 °C	Contacts Not Included			Black
TE Connectivity Raychem Cable Protection 2-1747276-2	1	Female Socket				2	Crimp	Free Hanging (In-Line)	Latch Lock	Receptacle	105 ░C	-55 °C	Contacts Not Included	0.25 in	6.35 mm	Black
TE Connectivity Raychem Cable Protection 1-1747414-4	1	Tab	Glass Filled Polyester Thermoplastic			4	Crimp	Free Hanging (In-Line)		Plug	105 ░C	-55 °C	Contacts Not Included			Black
TE Connectivity Raychem Cable Protection 1-1747416-2							Crimp										Power	Tab	15 µin	0.38 µm	14 AWG	12 AWG	Gold
TE Connectivity Raychem Cable Protection 1-1903331-3	2	Tab	Glass Filled Polyester Thermoplastic	0.346 in	8.8 mm	6	Crimp			Plug	105 ░C	-55 °C	Contacts Not Included			Black								Mounting Flange
TE Connectivity Raychem Cable Protection 1-1903330-3	2	Tab		0.346 in	8.8 mm	6	Crimp	Free Hanging (In-Line)		Plug			Contacts Not Included			Black
TE Connectivity Raychem Cable Protection 1747415-2							Crimp										Power	Socket	15 µin	0.38 µm	14 AWG	12 AWG	Gold
TE Connectivity Raychem Cable Protection 2-1747277-2	1	Male Pin				2		Through Hole	Push-Pull	Header	105 ░C	-55 °C													24 A	All	Copper Alloy	15 µin	0.38 µm	Board to Board Cable	Black	Solder	Shrouded - 4 Wall	0.15 in	3.81 mm	600 VAC	0.937 in	23.8 mm	Square	Gold	6.35 mm	0.25 in	Tin	2 çm	78.7 çin	UL94 V-0
TE Connectivity Raychem Cable Protection 1747416-2
