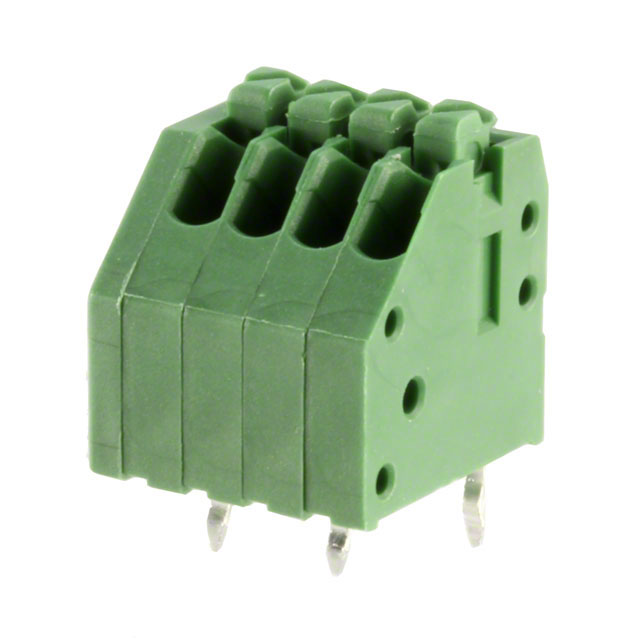

1-2834021-4
ActiveTE Connectivity Raychem Cable Protection
4POS 2.5MM TES CONN.
Deep-Dive with AI
Search across all available documentation for this part.
1-2834021-4
ActiveTE Connectivity Raychem Cable Protection
4POS 2.5MM TES CONN.
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2834021-4 |
|---|---|
| Color | Green |
| Contact Material - Plating | Copper Alloy - Tin Plated |
| Current | 5 A |
| Mating Orientation | Vertical with Board |
| Mounting Type | Through Hole, Kinked Pin |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.098 in |
| Pitch [x] | 2.5 mm |
| Positions Per Level | 4 |
| Voltage | 300 V |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 20 AWG |
| Wire Termination | Screwless - Push Button Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.56 | |
| 10 | $ 0.53 | |||
| 25 | $ 0.51 | |||
| 50 | $ 0.50 | |||
| 100 | $ 0.44 | |||
| 250 | $ 0.42 | |||
| 980 | $ 0.41 | |||
Description
General part information
BUCHANAN WireMate Modular Screwless Series
4 Position PCB Terminal Block, Receptacle, Wire-to-Board, 1 Row, 45° Wire Entry Angle, 26 – 20 AWG, 300 VAC, BUCHANAN WireMate Modular Screwless
