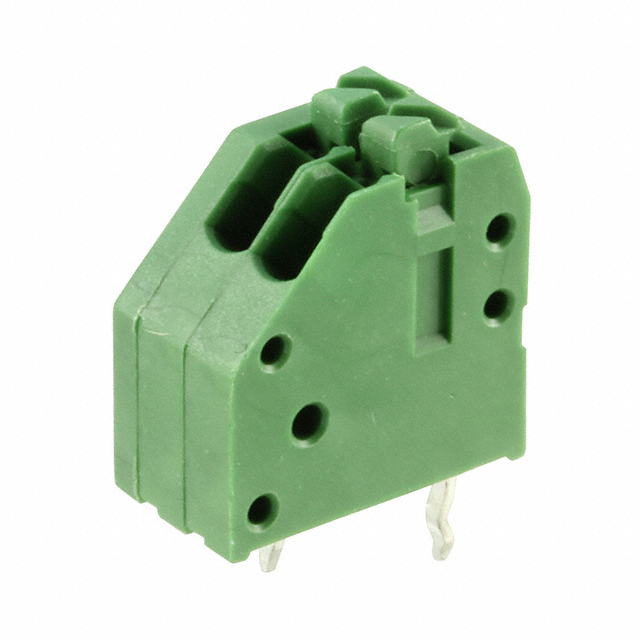

1-2834021-2

Active

TE Connectivity Raychem Cable Protection

TERM BLK 2P TOP ENTRY 2.5MM PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-2834021-2

Active

TE Connectivity Raychem Cable Protection

TERM BLK 2P TOP ENTRY 2.5MM PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1-2834021-2

Color	Green
Contact Material - Plating	Copper Alloy - Tin Plated
Current	5 A
Mating Orientation	Vertical with Board
Mounting Type	Through Hole, Kinked Pin
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.098 in
Pitch [x]	2.5 mm
Positions Per Level	2
Voltage	300 V
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	20 AWG
Wire Termination	Screwless - Push Button Clamp

BUCHANAN WireMate Modular Screwless Series

Part	Wire Gauge [Min]	Wire Gauge [Max]	Mating Orientation	Contact Material - Plating	Number of Levels	Pitch [x]	Pitch [x]	Positions Per Level	Voltage	Current	Wire Termination	Operating Temperature [Min]	Operating Temperature [Max]	Color	Mounting Type	Clamp Material - Plating	Contact Material - Plating [custom]	Features	Mating Orientation	Mating Orientation
TE Connectivity Raychem Cable Protection 1-2834015-3	20 AWG	26 AWG	Vertical with Board	Copper Alloy - Tin Plated	1	2.54 mm	0.1 in	3	150 V	6 A	Screwless - Spring Cage Tension Clamp	-40 °C	105 ░C	Green	Through Hole	Stainless Steel
TE Connectivity Raychem Cable Protection 1-2834021-4	20 AWG	26 AWG	Vertical with Board	Copper Alloy - Tin Plated	1	2.5 mm	0.098 in	4	300 V	5 A	Screwless - Push Button Clamp	-40 °C	105 ░C	Green	Kinked Pin Through Hole
TE Connectivity Raychem Cable Protection 2834080-1	12 AWG	28 AWG	Horizontal with Board		1	5 mm	0.197 in	2	300 V	20 A	Screwless - Spring Cage Tension Clamp	-40 °C	105 ░C	Gray	Through Hole		Brass - Tin Plated	Interlocking (Side) Lever Actuated
TE Connectivity Raychem Cable Protection 1-2834021-2	20 AWG	26 AWG	Vertical with Board	Copper Alloy - Tin Plated	1	2.5 mm	0.098 in	2	300 V	5 A	Screwless - Push Button Clamp	-40 °C	105 ░C	Green	Kinked Pin Through Hole
TE Connectivity Raychem Cable Protection 1-2834021-6	20 AWG	26 AWG	Vertical with Board	Copper Alloy - Tin Plated	1	2.5 mm	0.098 in	6	300 V	5 A	Screwless - Push Button Clamp	-40 °C	105 ░C	Green	Kinked Pin Through Hole
TE Connectivity Raychem Cable Protection 2834078-2	14 AWG	28 AWG			1	5 mm	0.197 in	3	300 V	16 A	Screwless - Spring Cage Tension Clamp	-40 °C	105 ░C		Through Hole		Brass - Tin Plated	Interlocking (Side)	135 °	45 °
TE Connectivity Raychem Cable Protection 2834078-1	14 AWG	28 AWG			1	5 mm	0.197 in	2	300 V	16 A	Screwless - Spring Cage Tension Clamp	-40 °C	105 ░C		Through Hole		Brass - Tin Plated	Interlocking (Side)	135 °	45 °

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.42
		10	$ 0.38
		25	$ 0.38
		50	$ 0.37
		100	$ 0.31
		250	$ 0.28
		500	$ 0.27
		1764	$ 0.23
		5292	$ 0.21

Description

General part information

BUCHANAN WireMate Modular Screwless Series

2 Position Wire to Board Terminal Block Vertical with Board 0.098" (2.50mm) Through Hole, Kinked Pin
