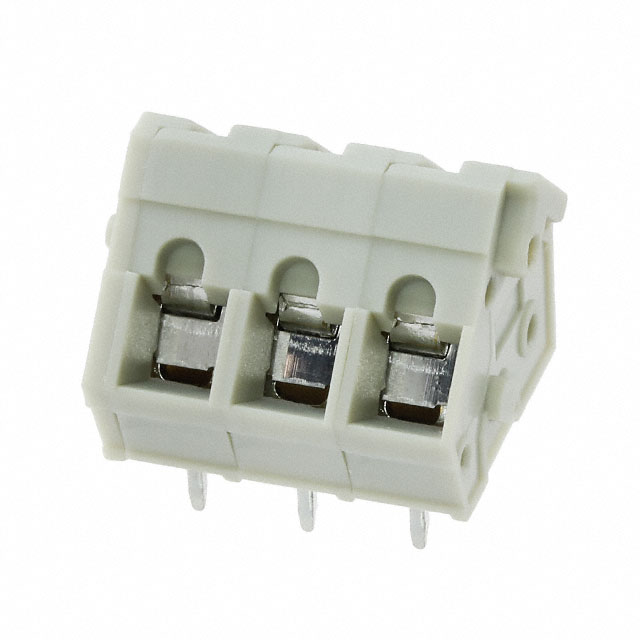

2834078-2
ActiveTE Connectivity Raychem Cable Protection
5.0MM TOP ENTRY MSC 3P_GY
Deep-Dive with AI
Search across all available documentation for this part.
2834078-2
ActiveTE Connectivity Raychem Cable Protection
5.0MM TOP ENTRY MSC 3P_GY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2834078-2 |
|---|---|
| Contact Material - Plating [custom] | Brass - Tin Plated |
| Current | 16 A |
| Features | Interlocking (Side) |
| Mating Orientation | 135 ° |
| Mating Orientation | 45 ° |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Positions Per Level | 3 |
| Voltage | 300 V |
| Wire Gauge [Max] | 28 AWG |
| Wire Gauge [Min] | 14 AWG |
| Wire Termination | Screwless - Spring Cage, Tension Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.75 | |
| 10 | $ 0.70 | |||
| 25 | $ 0.67 | |||
| 50 | $ 0.67 | |||
| 100 | $ 0.60 | |||
| 250 | $ 0.58 | |||
| 635 | $ 0.57 | |||
Description
General part information
BUCHANAN WireMate Modular Screwless Series
3 Position PCB Terminal Block, Receptacle, Wire-to-Board, 1 Row, 45° Wire Entry Angle, 28 – 14 AWG, 300 VAC, BUCHANAN WireMate Modular Screwless
