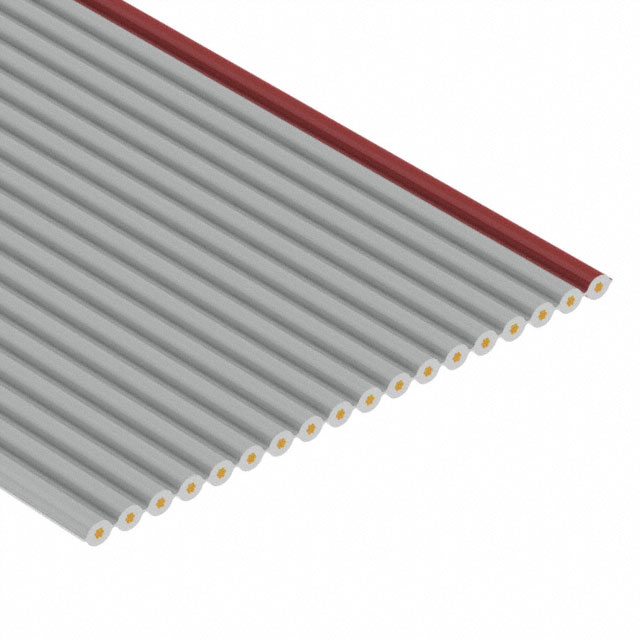

3365/18SF

Active

3M (TC)

CBL RIBN 18COND 0.05 GRAY 500'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Stripped Ribbon Cable Length Guide

3365/18SF

Active

3M (TC)

CBL RIBN 18COND 0.05 GRAY 500'

Deep-Dive with AI

DocumentsDatasheet Stripped Ribbon Cable Length Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3365/18SF

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
Features	Zippable, Splice Free
First Conductor Mark	Red
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	152.4 m
Length	6000 in
Number of Conductors	18
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 2651
Ribbon Thickness	0.89 mm
Ribbon Thickness	0.035 in
Ribbon Width	0.9 in
Ribbon Width	22.86 mm
Shielding	Unshielded
Voltage	300 V
Wire Gauge	28 AWG

3365A Series

...

Part	Ribbon Thickness	Ribbon Thickness	Jacket Color	Length	Length	Conductor Material	Voltage	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Ribbon Width [custom]	Ribbon Width [custom]	Ratings	Wire Gauge	Insulation Resistance	Pitch [x]	Pitch [x]	Conductor Strand [custom]	Conductor Strand [custom]	Shielding	First Conductor Mark	Number of Conductors	Cable Type	Length [x]	Length [x]	Features	Ribbon Width	Ribbon Width	Ribbon Width [x]	Ribbon Width [x]	Ribbon Width [y]	Ribbon Width [y]	Length	Spool Size	Spool Size
3M (TC) 3365/10 300SF	0.89 mm	0.035 in	Gray	1 ft 25 ft 50 ft 300 ft	7.62 m 15.24 m 91.44 m 304.8 mm	Copper Tinned	300 V	Poly-Vinyl Chloride (PVC)	-20 C	105 ░C	0.5 "	12.7 mm	UL Style 2651	28 AWG	10 GOhm	0.05 in	1.27 mm	7	36 AWG	Unshielded	Red	10	Flat Cable	100 ft	30.48 m	Splice Free Zippable
3M (TC) 3365/18SF	0.89 mm	0.035 in	Gray	6000 in	152.4 m	Copper Tinned	300 V	Poly-Vinyl Chloride (PVC)	-20 C	105 ░C			UL Style 2651	28 AWG	10 GOhm	0.05 in	1.27 mm	7	36 AWG	Unshielded	Red	18	Flat Cable			Splice Free Zippable	0.9 in	22.86 mm
3M (TC) 3365/25SF	0.89 mm	0.035 in	Gray	6000 in	152.4 m	Copper Tinned	300 V	Poly-Vinyl Chloride (PVC)	-20 C	105 ░C			UL Style 2651	28 AWG	10 GOhm	0.05 in	1.27 mm	7	36 AWG	Unshielded	Red	25	Flat Cable			Splice Free Zippable			1.25 "	31.75 mm
3M (TC) 3365/50 300SF	0.89 mm	0.035 in	Gray	1 ft 25 ft 300 ft	7.62 m 91.44 m 304.8 mm	Copper Tinned	300 V	Poly-Vinyl Chloride (PVC)	-20 C	105 ░C			UL Style 2651	28 AWG	10 GOhm	0.05 in	1.27 mm	7	36 AWG	Unshielded	Red	50	Flat Cable			Splice Free Zippable	2.5 "	63.5 mm
3M (TC) 3365/50 300	0.89 mm	0.035 in	Gray	1 ft 50 ft 300 ft	15.24 m 91.44 m 304.8 mm	Copper Tinned	300 V	Poly-Vinyl Chloride (PVC)	-20 C	105 ░C			UL Style 2651	28 AWG	10 GOhm	0.05 in	1.27 mm	7	36 AWG	Unshielded	Red	50	Flat Cable	10 ft 100 ft	3.05 m 30.48 m	Zippable	2.5 "	63.5 mm
3M (TC) 3365/64SF 100	0.89 mm	0.035 in	Gray	1 ft 25 ft 50 ft	7.62 m 15.24 m 304.8 mm	Copper Tinned	300 V	Poly-Vinyl Chloride (PVC)	-20 C	105 ░C			UL Style 2651	28 AWG	10 GOhm	0.05 in	1.27 mm	7	36 AWG	Unshielded	Red	64	Flat Cable	10 ft	3.05 m	Zippable					81.28 mm	3.2 in
3M (TC) 3365/34 300	0.89 mm	0.035 in	Gray	1 ft 25 ft 50 ft 300 ft	7.62 m 15.24 m 91.44 m 304.8 mm	Copper Tinned	300 V	Poly-Vinyl Chloride (PVC)	-20 C	105 ░C			UL Style 2651	28 AWG	10 GOhm	0.05 in	1.27 mm	7	36 AWG	Unshielded	Red	34	Flat Cable	10 ft	3.05 m	Zippable					43.18 mm	1.7 in	Enter Number of Feet in Order Quantity	300 ft	91.44 m
3M (TC) 3365/50SF 100	0.89 mm	0.035 in	Gray	1 ft 25 ft	7.62 m 304.8 mm	Copper Tinned	300 V	Poly-Vinyl Chloride (PVC)	-20 C	105 ░C			UL Style 2651	28 AWG	10 GOhm	0.05 in	1.27 mm	7	36 AWG	Unshielded	Red	50	Flat Cable	100 ft	30.48 m	Zippable	2.5 "	63.5 mm
3M (TC) 3365/10SF 100	0.89 mm	0.035 in	Gray	1 ft 50 ft	15.24 m 304.8 mm	Copper Tinned	300 V	Poly-Vinyl Chloride (PVC)	-20 C	105 ░C	0.5 "	12.7 mm	UL Style 2651	28 AWG	10 GOhm	0.05 in	1.27 mm	7	36 AWG	Unshielded	Red	10	Flat Cable	10 ft 100 ft	3.05 m 30.48 m	Zippable							Enter Number of Feet in Order Quantity	100 ft	30.48 m
3M (TC) 3365/10	0.89 mm	0.035 in	Gray	6000 in	152.4 m	Copper Tinned	300 V	Poly-Vinyl Chloride (PVC)	-20 C	105 ░C	0.5 "	12.7 mm	UL Style 2651	28 AWG	10 GOhm	0.05 in	1.27 mm	7	36 AWG	Unshielded	Red	10	Flat Cable			Zippable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

3365A Series

Flat Ribbon Cable Gray 18 Conductors 0.050" (1.27mm) Flat Cable 500.0' (152.40m)
