3365/64SF 100

Unknown

3M (TC)

CBL RIBN 64COND 0.05 GRAY 1'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Stripped Ribbon Cable Length Guide +2

3365/64SF 100

Unknown

3M (TC)

CBL RIBN 64COND 0.05 GRAY 1'

Deep-Dive with AI

DocumentsDatasheet Stripped Ribbon Cable Length Guide +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3365/64SF 100

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
Features	Zippable
First Conductor Mark	Red
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	25 ft, 50 ft, 1 ft
Length	7.62 m, 15.24 m, 304.8 mm
Length [x]	3.05 m
Length [x]	10 ft
Number of Conductors	64
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 2651
Ribbon Thickness	0.89 mm
Ribbon Thickness	0.035 in
Ribbon Width [y]	81.28 mm
Ribbon Width [y]	3.2 in
Shielding	Unshielded
Voltage	300 V
Wire Gauge	28 AWG

3365A Series

...

Part	Ribbon Thickness	Ribbon Thickness	Jacket Color	Length	Length	Conductor Material	Voltage	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Ribbon Width [custom]	Ribbon Width [custom]	Ratings	Wire Gauge	Insulation Resistance	Pitch [x]	Pitch [x]	Conductor Strand [custom]	Conductor Strand [custom]	Shielding	First Conductor Mark	Number of Conductors	Cable Type	Length [x]	Length [x]	Features	Ribbon Width	Ribbon Width	Ribbon Width [x]	Ribbon Width [x]	Ribbon Width [y]	Ribbon Width [y]	Length	Spool Size	Spool Size
3M (TC) 3365/10 300SF	0.89 mm	0.035 in	Gray	1 ft 25 ft 50 ft 300 ft	7.62 m 15.24 m 91.44 m 304.8 mm	Copper Tinned	300 V	Poly-Vinyl Chloride (PVC)	-20 C	105 ░C	0.5 "	12.7 mm	UL Style 2651	28 AWG	10 GOhm	0.05 in	1.27 mm	7	36 AWG	Unshielded	Red	10	Flat Cable	100 ft	30.48 m	Splice Free Zippable
3M (TC) 3365/18SF	0.89 mm	0.035 in	Gray	6000 in	152.4 m	Copper Tinned	300 V	Poly-Vinyl Chloride (PVC)	-20 C	105 ░C			UL Style 2651	28 AWG	10 GOhm	0.05 in	1.27 mm	7	36 AWG	Unshielded	Red	18	Flat Cable			Splice Free Zippable	0.9 in	22.86 mm
3M (TC) 3365/25SF	0.89 mm	0.035 in	Gray	6000 in	152.4 m	Copper Tinned	300 V	Poly-Vinyl Chloride (PVC)	-20 C	105 ░C			UL Style 2651	28 AWG	10 GOhm	0.05 in	1.27 mm	7	36 AWG	Unshielded	Red	25	Flat Cable			Splice Free Zippable			1.25 "	31.75 mm
3M (TC) 3365/50 300SF	0.89 mm	0.035 in	Gray	1 ft 25 ft 300 ft	7.62 m 91.44 m 304.8 mm	Copper Tinned	300 V	Poly-Vinyl Chloride (PVC)	-20 C	105 ░C			UL Style 2651	28 AWG	10 GOhm	0.05 in	1.27 mm	7	36 AWG	Unshielded	Red	50	Flat Cable			Splice Free Zippable	2.5 "	63.5 mm
3M (TC) 3365/50 300	0.89 mm	0.035 in	Gray	1 ft 50 ft 300 ft	15.24 m 91.44 m 304.8 mm	Copper Tinned	300 V	Poly-Vinyl Chloride (PVC)	-20 C	105 ░C			UL Style 2651	28 AWG	10 GOhm	0.05 in	1.27 mm	7	36 AWG	Unshielded	Red	50	Flat Cable	10 ft 100 ft	3.05 m 30.48 m	Zippable	2.5 "	63.5 mm
3M (TC) 3365/64SF 100	0.89 mm	0.035 in	Gray	1 ft 25 ft 50 ft	7.62 m 15.24 m 304.8 mm	Copper Tinned	300 V	Poly-Vinyl Chloride (PVC)	-20 C	105 ░C			UL Style 2651	28 AWG	10 GOhm	0.05 in	1.27 mm	7	36 AWG	Unshielded	Red	64	Flat Cable	10 ft	3.05 m	Zippable					81.28 mm	3.2 in
3M (TC) 3365/34 300	0.89 mm	0.035 in	Gray	1 ft 25 ft 50 ft 300 ft	7.62 m 15.24 m 91.44 m 304.8 mm	Copper Tinned	300 V	Poly-Vinyl Chloride (PVC)	-20 C	105 ░C			UL Style 2651	28 AWG	10 GOhm	0.05 in	1.27 mm	7	36 AWG	Unshielded	Red	34	Flat Cable	10 ft	3.05 m	Zippable					43.18 mm	1.7 in	Enter Number of Feet in Order Quantity	300 ft	91.44 m
3M (TC) 3365/50SF 100	0.89 mm	0.035 in	Gray	1 ft 25 ft	7.62 m 304.8 mm	Copper Tinned	300 V	Poly-Vinyl Chloride (PVC)	-20 C	105 ░C			UL Style 2651	28 AWG	10 GOhm	0.05 in	1.27 mm	7	36 AWG	Unshielded	Red	50	Flat Cable	100 ft	30.48 m	Zippable	2.5 "	63.5 mm
3M (TC) 3365/10SF 100	0.89 mm	0.035 in	Gray	1 ft 50 ft	15.24 m 304.8 mm	Copper Tinned	300 V	Poly-Vinyl Chloride (PVC)	-20 C	105 ░C	0.5 "	12.7 mm	UL Style 2651	28 AWG	10 GOhm	0.05 in	1.27 mm	7	36 AWG	Unshielded	Red	10	Flat Cable	10 ft 100 ft	3.05 m 30.48 m	Zippable							Enter Number of Feet in Order Quantity	100 ft	30.48 m
3M (TC) 3365/10	0.89 mm	0.035 in	Gray	6000 in	152.4 m	Copper Tinned	300 V	Poly-Vinyl Chloride (PVC)	-20 C	105 ░C	0.5 "	12.7 mm	UL Style 2651	28 AWG	10 GOhm	0.05 in	1.27 mm	7	36 AWG	Unshielded	Red	10	Flat Cable			Zippable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.65
		1	$ 89.83
		1	$ 170.48
		1	$ 38.67
		2	$ 4.22
		3	$ 3.99
		5	$ 135.48
		5	$ 30.76
		5	$ 71.67
		5	$ 3.72
		7	$ 3.54
		10	$ 3.37
		10	$ 123.16
		10	$ 27.90
		10	$ 64.86
		25	$ 24.53
		25	$ 108.25
		25	$ 57.08
		25	$ 2.96
		50	$ 22.19
		50	$ 51.56
		50	$ 2.68
		50	$ 97.88
		100	$ 2.43
		100	$ 47.02
		100	$ 20.11
		100	$ 84.27

Description

General part information

3365A Series

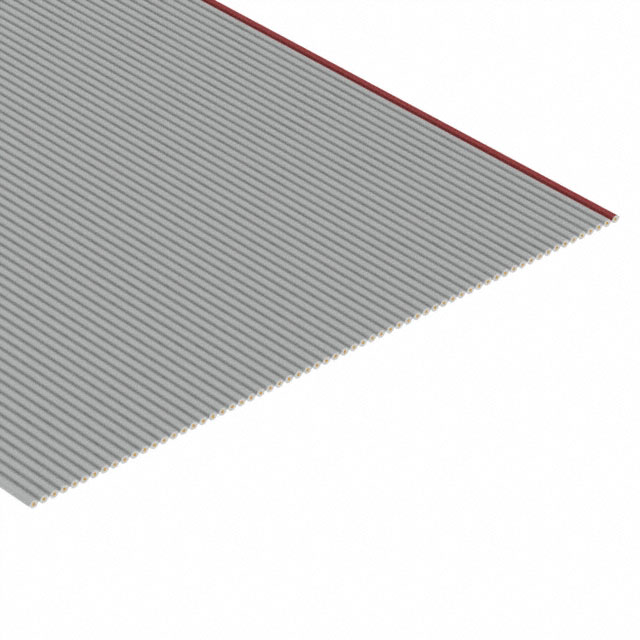

Flat Ribbon Cable Gray 64 Conductors 0.050" (1.27mm) Flat Cable 1.00' (304.80mm)

Documents

Technical documentation and resources

Datasheet

Stripped Ribbon Cable Length Guide

Datasheet

Cables & Accessories Selection Guide

Datasheet
