3365/10

Active

3M (TC)

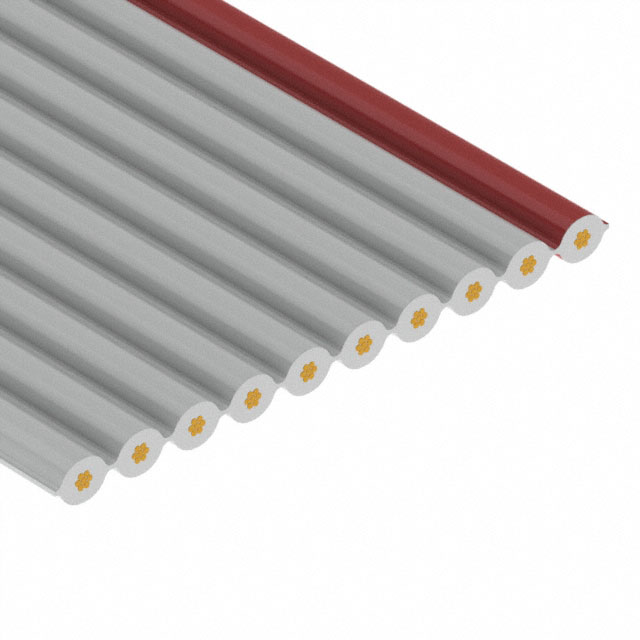

RIBBON CABLE, ROUND CONDUCTOR FLAT, UNSHIELDED, 10 CONDUCTOR, 28 AWG, 0.072 MM², 100 FT, 30.5 M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsStripped Ribbon Cable Length Guide Datasheet +1

3365/10

Active

3M (TC)

RIBBON CABLE, ROUND CONDUCTOR FLAT, UNSHIELDED, 10 CONDUCTOR, 28 AWG, 0.072 MM², 100 FT, 30.5 M

Deep-Dive with AI

DocumentsStripped Ribbon Cable Length Guide Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3365/10

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
Features	Zippable
First Conductor Mark	Red
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	152.4 m
Length	6000 in
Number of Conductors	10
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 2651
Ribbon Thickness	0.89 mm
Ribbon Thickness	0.035 in
Ribbon Width [custom]	0.5 "
Ribbon Width [custom]	12.7 mm
Shielding	Unshielded
Voltage	300 V
Wire Gauge	28 AWG

3365A Series

...

Part	Ribbon Thickness	Ribbon Thickness	Jacket Color	Length	Length	Conductor Material	Voltage	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Ribbon Width [custom]	Ribbon Width [custom]	Ratings	Wire Gauge	Insulation Resistance	Pitch [x]	Pitch [x]	Conductor Strand [custom]	Conductor Strand [custom]	Shielding	First Conductor Mark	Number of Conductors	Cable Type	Length [x]	Length [x]	Features	Ribbon Width	Ribbon Width	Ribbon Width [x]	Ribbon Width [x]	Ribbon Width [y]	Ribbon Width [y]	Length	Spool Size	Spool Size
3M (TC) 3365/10 300SF	0.89 mm	0.035 in	Gray	1 ft 25 ft 50 ft 300 ft	7.62 m 15.24 m 91.44 m 304.8 mm	Copper Tinned	300 V	Poly-Vinyl Chloride (PVC)	-20 C	105 ░C	0.5 "	12.7 mm	UL Style 2651	28 AWG	10 GOhm	0.05 in	1.27 mm	7	36 AWG	Unshielded	Red	10	Flat Cable	100 ft	30.48 m	Splice Free Zippable
3M (TC) 3365/18SF	0.89 mm	0.035 in	Gray	6000 in	152.4 m	Copper Tinned	300 V	Poly-Vinyl Chloride (PVC)	-20 C	105 ░C			UL Style 2651	28 AWG	10 GOhm	0.05 in	1.27 mm	7	36 AWG	Unshielded	Red	18	Flat Cable			Splice Free Zippable	0.9 in	22.86 mm
3M (TC) 3365/25SF	0.89 mm	0.035 in	Gray	6000 in	152.4 m	Copper Tinned	300 V	Poly-Vinyl Chloride (PVC)	-20 C	105 ░C			UL Style 2651	28 AWG	10 GOhm	0.05 in	1.27 mm	7	36 AWG	Unshielded	Red	25	Flat Cable			Splice Free Zippable			1.25 "	31.75 mm
3M (TC) 3365/50 300SF	0.89 mm	0.035 in	Gray	1 ft 25 ft 300 ft	7.62 m 91.44 m 304.8 mm	Copper Tinned	300 V	Poly-Vinyl Chloride (PVC)	-20 C	105 ░C			UL Style 2651	28 AWG	10 GOhm	0.05 in	1.27 mm	7	36 AWG	Unshielded	Red	50	Flat Cable			Splice Free Zippable	2.5 "	63.5 mm
3M (TC) 3365/50 300	0.89 mm	0.035 in	Gray	1 ft 50 ft 300 ft	15.24 m 91.44 m 304.8 mm	Copper Tinned	300 V	Poly-Vinyl Chloride (PVC)	-20 C	105 ░C			UL Style 2651	28 AWG	10 GOhm	0.05 in	1.27 mm	7	36 AWG	Unshielded	Red	50	Flat Cable	10 ft 100 ft	3.05 m 30.48 m	Zippable	2.5 "	63.5 mm
3M (TC) 3365/64SF 100	0.89 mm	0.035 in	Gray	1 ft 25 ft 50 ft	7.62 m 15.24 m 304.8 mm	Copper Tinned	300 V	Poly-Vinyl Chloride (PVC)	-20 C	105 ░C			UL Style 2651	28 AWG	10 GOhm	0.05 in	1.27 mm	7	36 AWG	Unshielded	Red	64	Flat Cable	10 ft	3.05 m	Zippable					81.28 mm	3.2 in
3M (TC) 3365/34 300	0.89 mm	0.035 in	Gray	1 ft 25 ft 50 ft 300 ft	7.62 m 15.24 m 91.44 m 304.8 mm	Copper Tinned	300 V	Poly-Vinyl Chloride (PVC)	-20 C	105 ░C			UL Style 2651	28 AWG	10 GOhm	0.05 in	1.27 mm	7	36 AWG	Unshielded	Red	34	Flat Cable	10 ft	3.05 m	Zippable					43.18 mm	1.7 in	Enter Number of Feet in Order Quantity	300 ft	91.44 m
3M (TC) 3365/50SF 100	0.89 mm	0.035 in	Gray	1 ft 25 ft	7.62 m 304.8 mm	Copper Tinned	300 V	Poly-Vinyl Chloride (PVC)	-20 C	105 ░C			UL Style 2651	28 AWG	10 GOhm	0.05 in	1.27 mm	7	36 AWG	Unshielded	Red	50	Flat Cable	100 ft	30.48 m	Zippable	2.5 "	63.5 mm
3M (TC) 3365/10SF 100	0.89 mm	0.035 in	Gray	1 ft 50 ft	15.24 m 304.8 mm	Copper Tinned	300 V	Poly-Vinyl Chloride (PVC)	-20 C	105 ░C	0.5 "	12.7 mm	UL Style 2651	28 AWG	10 GOhm	0.05 in	1.27 mm	7	36 AWG	Unshielded	Red	10	Flat Cable	10 ft 100 ft	3.05 m 30.48 m	Zippable							Enter Number of Feet in Order Quantity	100 ft	30.48 m
3M (TC) 3365/10	0.89 mm	0.035 in	Gray	6000 in	152.4 m	Copper Tinned	300 V	Poly-Vinyl Chloride (PVC)	-20 C	105 ░C	0.5 "	12.7 mm	UL Style 2651	28 AWG	10 GOhm	0.05 in	1.27 mm	7	36 AWG	Unshielded	Red	10	Flat Cable			Zippable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 229.16
		2	$ 207.52
		3	$ 195.84
		5	$ 182.08
		7	$ 173.58
		10	$ 165.02
		25	$ 145.07
		50	$ 131.76
Newark	Spool of 100	1	$ 43.66
		10	$ 40.57
		25	$ 36.32
		50	$ 35.35
		100	$ 31.30
		250	$ 27.63
		500	$ 27.05

Description

General part information

3365A Series

3365/10 100 is a 3365 series .050" 28AWG stranded, PVC round conductor flat cable. This flat cable conductor that brings exceptional performance and design flexibility to applications. With its size 28AWG wire on .050 in. centers, this cable allows for mass termination to a wide range of IDC connectors. The stranded-wire design of the 3M™ round conductor flat cable 3365 series provides both flexibility and an extended cable life, making it an ideal choice for various applications. This high-quality, versatile flat cable is zippable, allowing for easy branching or discrete termination.

Documents

Technical documentation and resources

Stripped Ribbon Cable Length Guide

Datasheet

Technical Data Sheet EN

Datasheet
