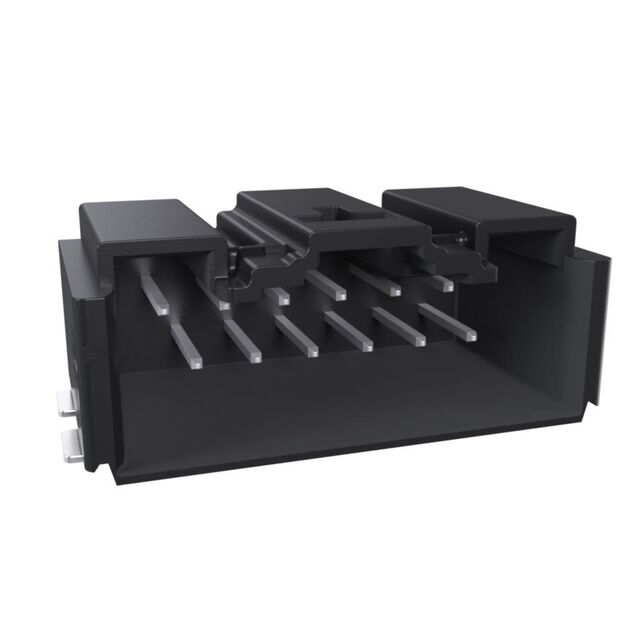

10142344-312KLF

Active

Amphenol ICC (FCI)

CONN MICROSPACE HDR-ASSY STG T

Deep-Dive with AI

Search across all available documentation for this part.

Documentsgs-20-0513Other Related Documents 10161117-001 +1

10142344-312KLF

Active

Amphenol ICC (FCI)

CONN MICROSPACE HDR-ASSY STG T

Deep-Dive with AI

Documentsgs-20-0513Other Related Documents 10161117-001 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10142344-312KLF

Applications	Industrial, General Purpose, Automotive
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	4 A
Fastening Type	Latch Holder
Features	Solder Retention, Board Guide
Insulation Color	Black
Insulation Height [custom]	0.35 in
Insulation Height [custom]	8.89 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating	2.43 mm
Row Spacing - Mating	0.096 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	48 VDC

10142344 Series

Part	Contact Type	Number of Positions Loaded	Voltage Rating	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Termination	Number of Rows	Contact Material	Insulation Material	Connector Type	Contact Finish - Post	Current Rating (Amps)	Material Flammability Rating	Insulation Color	Mounting Type	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Style	Insulation Height [custom]	Insulation Height [custom]	Features	Applications	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Number of Positions
Amphenol ICC (FCI) 10142344-108KLF	Male Pin	All	48 VDC	8	118.1 µin	3 µm	2.43 mm	0.096 in	Latch Holder	Solder	2	Copper Alloy	Thermoplastic	Header	Tin	4 A	UL94 V-0	Black	Surface Mount Right Angle	Shrouded - 4 Wall	-40 °C	130 °C	Board to Cable/Wire	0.35 in	8.89 mm	Board Guide Solder Retention	Automotive General Purpose Industrial	Square	0.1 in	2.54 mm
Amphenol ICC (FCI) 10142344-112KLF	Male Pin	All	48 VDC	12	118.1 µin	3 µm	2.43 mm	0.096 in	Latch Holder	Solder	2	Copper Alloy	Thermoplastic	Header	Tin	4 A	UL94 V-0	Black	Surface Mount Right Angle	Shrouded - 4 Wall	-40 °C	130 °C	Board to Cable/Wire	0.35 in	8.89 mm	Board Guide Solder Retention	Automotive General Purpose Industrial	Square	0.1 in	2.54 mm
Amphenol ICC (FCI) 10142344-304KLF	Male Pin	All	48 VDC	4	0.76 Ám		2.43 mm	0.096 in	Latch Holder	Solder	2	Copper Alloy	Thermoplastic	Header	Tin	4 A	UL94 V-0	Black	Surface Mount Right Angle	Shrouded - 4 Wall	-40 °C	130 °C	Board to Cable/Wire	0.35 in	8.89 mm	Board Guide Solder Retention	Automotive General Purpose Industrial	Square	0.1 in	2.54 mm	30 Áin	Gold
Amphenol ICC (FCI) 10142344-116KLF	Male Pin	All	48 VDC		118.1 µin	3 µm	2.43 mm	0.096 in	Latch Holder	Solder	2	Copper Alloy	Thermoplastic	Header	Tin	4 A	UL94 V-0	Black	Surface Mount Right Angle	Shrouded - 4 Wall	-40 °C	130 °C	Board to Cable/Wire	0.35 in	8.89 mm	Board Guide Solder Retention	Automotive General Purpose Industrial	Square	0.1 in	2.54 mm			16
Amphenol ICC (FCI) 10142344-115KLF	Male Pin	All	48 VDC	15	118.1 µin	3 µm	2.43 mm	0.096 in	Latch Holder	Solder	2	Copper Alloy	Thermoplastic	Header	Tin	4 A	UL94 V-0	Black	Surface Mount Right Angle	Shrouded - 4 Wall	-40 °C	130 °C	Board to Cable/Wire	0.35 in	8.89 mm	Board Guide Solder Retention	Automotive General Purpose Industrial	Square	0.1 in	2.54 mm
Amphenol ICC (FCI) 10142344-212KLF	Male Pin	All	48 VDC	12	118.1 µin	3 µm	2.43 mm	0.096 in	Latch Holder	Solder	2	Copper Alloy	Thermoplastic	Header	Tin	4 A	UL94 V-0	Black	Surface Mount Right Angle	Shrouded - 4 Wall	-40 °C	130 °C	Board to Cable/Wire	0.35 in	8.89 mm	Board Guide Solder Retention	Automotive General Purpose Industrial	Square	0.1 in	2.54 mm
Amphenol ICC (FCI) 10142344-312KLF	Male Pin	All	48 VDC	12	0.76 Ám		2.43 mm	0.096 in	Latch Holder	Solder	2	Copper Alloy	Thermoplastic	Header	Tin	4 A	UL94 V-0	Black	Surface Mount Right Angle	Shrouded - 4 Wall	-40 °C	130 °C	Board to Cable/Wire	0.35 in	8.89 mm	Board Guide Solder Retention	Automotive General Purpose Industrial	Square	0.1 in	2.54 mm	30 Áin	Gold
Amphenol ICC (FCI) 10142344-211KLF	Male Pin	All	48 VDC	11	118.1 µin	3 µm	2.43 mm	0.096 in	Latch Holder	Solder	2	Copper Alloy	Thermoplastic	Header	Tin	4 A	UL94 V-0	Black	Surface Mount Right Angle	Shrouded - 4 Wall	-40 °C	130 °C	Board to Cable/Wire	0.35 in	8.89 mm	Board Guide Solder Retention	Automotive General Purpose Industrial	Square	0.1 in	2.54 mm
Amphenol ICC (FCI) 10142344-305KLF	Male Pin	All	48 VDC		0.76 Ám		2.43 mm	0.096 in	Latch Holder	Solder	2	Copper Alloy	Thermoplastic	Header	Tin	4 A	UL94 V-0	Black	Surface Mount Right Angle	Shrouded - 4 Wall	-40 °C	130 °C	Board to Cable/Wire	0.35 in	8.89 mm	Board Guide Solder Retention	Automotive General Purpose Industrial	Square	0.1 in	2.54 mm	30 Áin	Gold
Amphenol ICC (FCI) 10142344-307KLF	Male Pin	All	48 VDC	7	0.76 Ám		2.43 mm	0.096 in	Latch Holder	Solder	2	Copper Alloy	Thermoplastic	Header	Tin	4 A	UL94 V-0	Black	Surface Mount Right Angle	Shrouded - 4 Wall	-40 °C	130 °C	Board to Cable/Wire	0.35 in	8.89 mm	Board Guide Solder Retention	Automotive General Purpose Industrial	Square	0.1 in	2.54 mm	30 Áin	Gold
