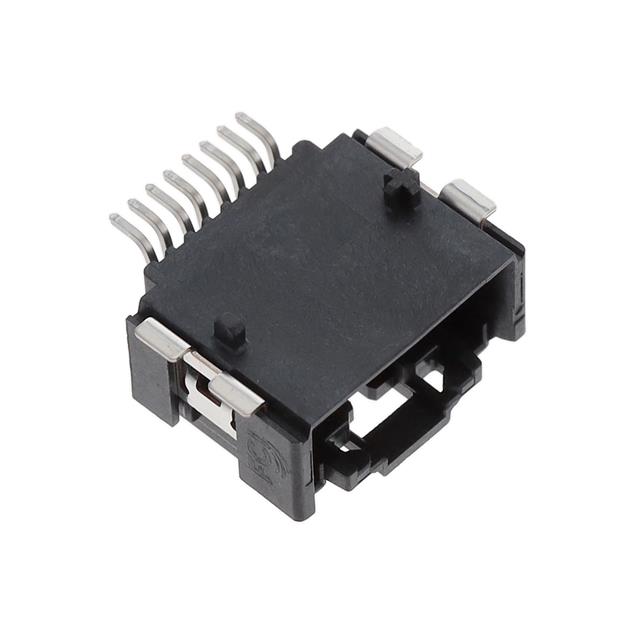

10142344-108KLF

Active

Amphenol ICC (FCI)

CONN MICROSPACE HDR-ASSY STG T

Deep-Dive with AI

Documentsgs-20-0513Other Related Documents microspace productpresentation Other Related Document +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10142344-108KLF

Applications	Industrial, General Purpose, Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	118.1 µin
Contact Finish Thickness - Mating	3 µm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	4 A
Fastening Type	Latch Holder
Features	Solder Retention, Board Guide
Insulation Color	Black
Insulation Height [custom]	0.35 in
Insulation Height [custom]	8.89 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating	2.43 mm
Row Spacing - Mating	0.096 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	48 VDC

10142344 Series

Part	Contact Type	Number of Positions Loaded	Voltage Rating	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Termination	Number of Rows	Contact Material	Insulation Material	Connector Type	Contact Finish - Post	Current Rating (Amps)	Material Flammability Rating	Insulation Color	Mounting Type	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Style	Insulation Height [custom]	Insulation Height [custom]	Features	Applications	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Number of Positions
Amphenol ICC (FCI) 10142344-108KLF	Male Pin	All	48 VDC	8	118.1 µin	3 µm	2.43 mm	0.096 in	Latch Holder	Solder	2	Copper Alloy	Thermoplastic	Header	Tin	4 A	UL94 V-0	Black	Surface Mount Right Angle	Shrouded - 4 Wall	-40 °C	130 °C	Board to Cable/Wire	0.35 in	8.89 mm	Board Guide Solder Retention	Automotive General Purpose Industrial	Square	0.1 in	2.54 mm
Amphenol ICC (FCI) 10142344-112KLF	Male Pin	All	48 VDC	12	118.1 µin	3 µm	2.43 mm	0.096 in	Latch Holder	Solder	2	Copper Alloy	Thermoplastic	Header	Tin	4 A	UL94 V-0	Black	Surface Mount Right Angle	Shrouded - 4 Wall	-40 °C	130 °C	Board to Cable/Wire	0.35 in	8.89 mm	Board Guide Solder Retention	Automotive General Purpose Industrial	Square	0.1 in	2.54 mm
Amphenol ICC (FCI) 10142344-304KLF	Male Pin	All	48 VDC	4	0.76 Ám		2.43 mm	0.096 in	Latch Holder	Solder	2	Copper Alloy	Thermoplastic	Header	Tin	4 A	UL94 V-0	Black	Surface Mount Right Angle	Shrouded - 4 Wall	-40 °C	130 °C	Board to Cable/Wire	0.35 in	8.89 mm	Board Guide Solder Retention	Automotive General Purpose Industrial	Square	0.1 in	2.54 mm	30 Áin	Gold
Amphenol ICC (FCI) 10142344-116KLF	Male Pin	All	48 VDC		118.1 µin	3 µm	2.43 mm	0.096 in	Latch Holder	Solder	2	Copper Alloy	Thermoplastic	Header	Tin	4 A	UL94 V-0	Black	Surface Mount Right Angle	Shrouded - 4 Wall	-40 °C	130 °C	Board to Cable/Wire	0.35 in	8.89 mm	Board Guide Solder Retention	Automotive General Purpose Industrial	Square	0.1 in	2.54 mm			16
Amphenol ICC (FCI) 10142344-115KLF	Male Pin	All	48 VDC	15	118.1 µin	3 µm	2.43 mm	0.096 in	Latch Holder	Solder	2	Copper Alloy	Thermoplastic	Header	Tin	4 A	UL94 V-0	Black	Surface Mount Right Angle	Shrouded - 4 Wall	-40 °C	130 °C	Board to Cable/Wire	0.35 in	8.89 mm	Board Guide Solder Retention	Automotive General Purpose Industrial	Square	0.1 in	2.54 mm
Amphenol ICC (FCI) 10142344-212KLF	Male Pin	All	48 VDC	12	118.1 µin	3 µm	2.43 mm	0.096 in	Latch Holder	Solder	2	Copper Alloy	Thermoplastic	Header	Tin	4 A	UL94 V-0	Black	Surface Mount Right Angle	Shrouded - 4 Wall	-40 °C	130 °C	Board to Cable/Wire	0.35 in	8.89 mm	Board Guide Solder Retention	Automotive General Purpose Industrial	Square	0.1 in	2.54 mm
Amphenol ICC (FCI) 10142344-312KLF	Male Pin	All	48 VDC	12	0.76 Ám		2.43 mm	0.096 in	Latch Holder	Solder	2	Copper Alloy	Thermoplastic	Header	Tin	4 A	UL94 V-0	Black	Surface Mount Right Angle	Shrouded - 4 Wall	-40 °C	130 °C	Board to Cable/Wire	0.35 in	8.89 mm	Board Guide Solder Retention	Automotive General Purpose Industrial	Square	0.1 in	2.54 mm	30 Áin	Gold
Amphenol ICC (FCI) 10142344-211KLF	Male Pin	All	48 VDC	11	118.1 µin	3 µm	2.43 mm	0.096 in	Latch Holder	Solder	2	Copper Alloy	Thermoplastic	Header	Tin	4 A	UL94 V-0	Black	Surface Mount Right Angle	Shrouded - 4 Wall	-40 °C	130 °C	Board to Cable/Wire	0.35 in	8.89 mm	Board Guide Solder Retention	Automotive General Purpose Industrial	Square	0.1 in	2.54 mm
Amphenol ICC (FCI) 10142344-305KLF	Male Pin	All	48 VDC		0.76 Ám		2.43 mm	0.096 in	Latch Holder	Solder	2	Copper Alloy	Thermoplastic	Header	Tin	4 A	UL94 V-0	Black	Surface Mount Right Angle	Shrouded - 4 Wall	-40 °C	130 °C	Board to Cable/Wire	0.35 in	8.89 mm	Board Guide Solder Retention	Automotive General Purpose Industrial	Square	0.1 in	2.54 mm	30 Áin	Gold
Amphenol ICC (FCI) 10142344-307KLF	Male Pin	All	48 VDC	7	0.76 Ám		2.43 mm	0.096 in	Latch Holder	Solder	2	Copper Alloy	Thermoplastic	Header	Tin	4 A	UL94 V-0	Black	Surface Mount Right Angle	Shrouded - 4 Wall	-40 °C	130 °C	Board to Cable/Wire	0.35 in	8.89 mm	Board Guide Solder Retention	Automotive General Purpose Industrial	Square	0.1 in	2.54 mm	30 Áin	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.65
		10	$ 2.02
		25	$ 1.82
		50	$ 1.69
		100	$ 1.56
	Digi-Reel®	1	$ 2.65
		10	$ 2.02
		25	$ 1.82
		50	$ 1.69
		100	$ 1.56
	Tape & Reel (TR)	260	$ 1.41
		520	$ 1.31
		780	$ 1.26
		1300	$ 1.19
		1820	$ 1.15
		2600	$ 1.11
		6500	$ 1.02

Description

General part information

10142344 Series

Connector Header Surface Mount, Right Angle 8 position 0.100" (2.54mm)
