10142344-112KLF
ActiveAmphenol ICC (FCI)
CONN MICROSPACE HDR-ASSY STG T
Deep-Dive with AI
Search across all available documentation for this part.
10142344-112KLF
ActiveAmphenol ICC (FCI)
CONN MICROSPACE HDR-ASSY STG T
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10142344-112KLF |
|---|---|
| Applications | Industrial, General Purpose, Automotive |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 118.1 µin |
| Contact Finish Thickness - Mating | 3 µm |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 4 A |
| Fastening Type | Latch Holder |
| Features | Solder Retention, Board Guide |
| Insulation Color | Black |
| Insulation Height [custom] | 0.35 in |
| Insulation Height [custom] | 8.89 mm |
| Insulation Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating | 2.43 mm |
| Row Spacing - Mating | 0.096 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 48 VDC |
10142344 Series
| Part | Contact Type | Number of Positions Loaded | Voltage Rating | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Row Spacing - Mating | Row Spacing - Mating | Fastening Type | Termination | Number of Rows | Contact Material | Insulation Material | Connector Type | Contact Finish - Post | Current Rating (Amps) | Material Flammability Rating | Insulation Color | Mounting Type | Shrouding | Operating Temperature [Min] | Operating Temperature [Max] | Style | Insulation Height [custom] | Insulation Height [custom] | Features | Applications | Contact Shape | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Male Pin | All | 48 VDC | 8 | 118.1 µin | 3 µm | 2.43 mm | 0.096 in | Latch Holder | Solder | 2 | Copper Alloy | Thermoplastic | Header | Tin | 4 A | UL94 V-0 | Black | Surface Mount Right Angle | Shrouded - 4 Wall | -40 °C | 130 °C | Board to Cable/Wire | 0.35 in | 8.89 mm | Board Guide Solder Retention | Automotive General Purpose Industrial | Square | 0.1 in | 2.54 mm | |||
Amphenol ICC (FCI) | Male Pin | All | 48 VDC | 12 | 118.1 µin | 3 µm | 2.43 mm | 0.096 in | Latch Holder | Solder | 2 | Copper Alloy | Thermoplastic | Header | Tin | 4 A | UL94 V-0 | Black | Surface Mount Right Angle | Shrouded - 4 Wall | -40 °C | 130 °C | Board to Cable/Wire | 0.35 in | 8.89 mm | Board Guide Solder Retention | Automotive General Purpose Industrial | Square | 0.1 in | 2.54 mm | |||
Amphenol ICC (FCI) | Male Pin | All | 48 VDC | 4 | 0.76 Ám | 2.43 mm | 0.096 in | Latch Holder | Solder | 2 | Copper Alloy | Thermoplastic | Header | Tin | 4 A | UL94 V-0 | Black | Surface Mount Right Angle | Shrouded - 4 Wall | -40 °C | 130 °C | Board to Cable/Wire | 0.35 in | 8.89 mm | Board Guide Solder Retention | Automotive General Purpose Industrial | Square | 0.1 in | 2.54 mm | 30 Áin | Gold | ||
Amphenol ICC (FCI) | Male Pin | All | 48 VDC | 118.1 µin | 3 µm | 2.43 mm | 0.096 in | Latch Holder | Solder | 2 | Copper Alloy | Thermoplastic | Header | Tin | 4 A | UL94 V-0 | Black | Surface Mount Right Angle | Shrouded - 4 Wall | -40 °C | 130 °C | Board to Cable/Wire | 0.35 in | 8.89 mm | Board Guide Solder Retention | Automotive General Purpose Industrial | Square | 0.1 in | 2.54 mm | 16 | |||
Amphenol ICC (FCI) | Male Pin | All | 48 VDC | 15 | 118.1 µin | 3 µm | 2.43 mm | 0.096 in | Latch Holder | Solder | 2 | Copper Alloy | Thermoplastic | Header | Tin | 4 A | UL94 V-0 | Black | Surface Mount Right Angle | Shrouded - 4 Wall | -40 °C | 130 °C | Board to Cable/Wire | 0.35 in | 8.89 mm | Board Guide Solder Retention | Automotive General Purpose Industrial | Square | 0.1 in | 2.54 mm | |||
Amphenol ICC (FCI) | Male Pin | All | 48 VDC | 12 | 118.1 µin | 3 µm | 2.43 mm | 0.096 in | Latch Holder | Solder | 2 | Copper Alloy | Thermoplastic | Header | Tin | 4 A | UL94 V-0 | Black | Surface Mount Right Angle | Shrouded - 4 Wall | -40 °C | 130 °C | Board to Cable/Wire | 0.35 in | 8.89 mm | Board Guide Solder Retention | Automotive General Purpose Industrial | Square | 0.1 in | 2.54 mm | |||
Amphenol ICC (FCI) | Male Pin | All | 48 VDC | 12 | 0.76 Ám | 2.43 mm | 0.096 in | Latch Holder | Solder | 2 | Copper Alloy | Thermoplastic | Header | Tin | 4 A | UL94 V-0 | Black | Surface Mount Right Angle | Shrouded - 4 Wall | -40 °C | 130 °C | Board to Cable/Wire | 0.35 in | 8.89 mm | Board Guide Solder Retention | Automotive General Purpose Industrial | Square | 0.1 in | 2.54 mm | 30 Áin | Gold | ||
Amphenol ICC (FCI) | Male Pin | All | 48 VDC | 11 | 118.1 µin | 3 µm | 2.43 mm | 0.096 in | Latch Holder | Solder | 2 | Copper Alloy | Thermoplastic | Header | Tin | 4 A | UL94 V-0 | Black | Surface Mount Right Angle | Shrouded - 4 Wall | -40 °C | 130 °C | Board to Cable/Wire | 0.35 in | 8.89 mm | Board Guide Solder Retention | Automotive General Purpose Industrial | Square | 0.1 in | 2.54 mm | |||
Amphenol ICC (FCI) | Male Pin | All | 48 VDC | 0.76 Ám | 2.43 mm | 0.096 in | Latch Holder | Solder | 2 | Copper Alloy | Thermoplastic | Header | Tin | 4 A | UL94 V-0 | Black | Surface Mount Right Angle | Shrouded - 4 Wall | -40 °C | 130 °C | Board to Cable/Wire | 0.35 in | 8.89 mm | Board Guide Solder Retention | Automotive General Purpose Industrial | Square | 0.1 in | 2.54 mm | 30 Áin | Gold | |||
Amphenol ICC (FCI) | Male Pin | All | 48 VDC | 7 | 0.76 Ám | 2.43 mm | 0.096 in | Latch Holder | Solder | 2 | Copper Alloy | Thermoplastic | Header | Tin | 4 A | UL94 V-0 | Black | Surface Mount Right Angle | Shrouded - 4 Wall | -40 °C | 130 °C | Board to Cable/Wire | 0.35 in | 8.89 mm | Board Guide Solder Retention | Automotive General Purpose Industrial | Square | 0.1 in | 2.54 mm | 30 Áin | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.91 | |
| 10 | $ 2.23 | |||
| 25 | $ 2.00 | |||
| 50 | $ 1.85 | |||
| 100 | $ 1.72 | |||
| Digi-Reel® | 1 | $ 2.91 | ||
| 10 | $ 2.23 | |||
| 25 | $ 2.00 | |||
| 50 | $ 1.85 | |||
| 100 | $ 1.72 | |||
| Tape & Reel (TR) | 260 | $ 1.55 | ||
| 520 | $ 1.44 | |||
| 780 | $ 1.38 | |||
| 1300 | $ 1.31 | |||
| 1820 | $ 1.27 | |||
| 2600 | $ 1.23 | |||
| 6500 | $ 1.13 | |||
Description
General part information
10142344 Series

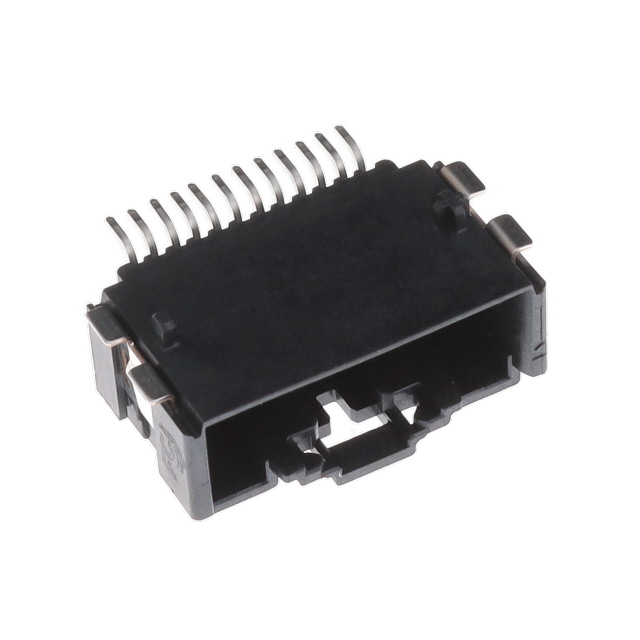

Connector Header Surface Mount, Right Angle 12 position 0.100" (2.54mm)
