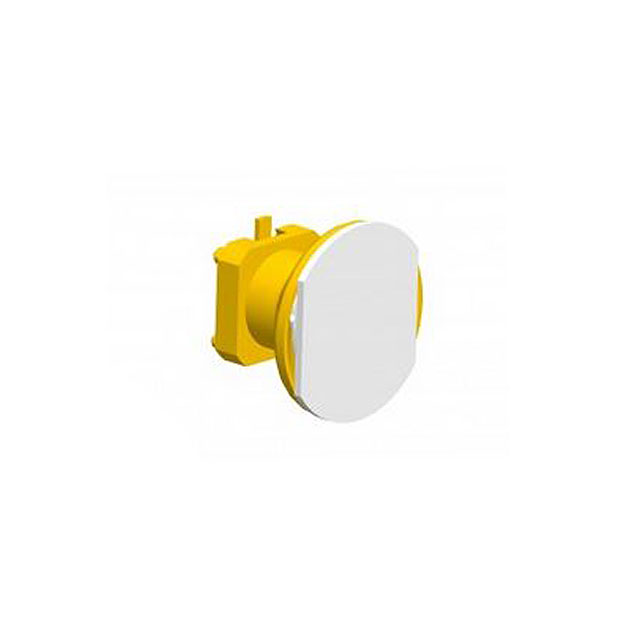

PSMP-MSSB-PCT1R

Active

AMPHENOL RF

CONN PSMP JACK STR 50 OHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPSMP Series Product Intro

PSMP-MSSB-PCT1R

Active

AMPHENOL RF

CONN PSMP JACK STR 50 OHM SMD

Deep-Dive with AI

DocumentsPSMP Series Product Intro

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 8.37

Description

General part information

PSMP Series

PSMP Connector Jack, Male Pin 50 Ohms Surface Mount, Through Hole Solder

Documents

Technical documentation and resources

PSMP Series Product Intro

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PSMP-MSSB-PCT1R	PSMP Series

Adapter Type	-	Plug to Plug
Body Finish	Gold	White Bronze, Gold
Body Material	Brass	Beryllium Copper, Brass
Center Contact Material	Brass	Beryllium Copper, Brass
Center Contact Plating	Gold	Gold
Center Gender	-	Female to Female
Connector Style	PSMP	PSMP
Connector Type	Male Pin, Jack	Male Pin, Jack
Contact Termination	Solder	Solder
Conversion Type	-	Same Series
Convert From (Adapter End)	-	PSMP Plug, Female Socket
Convert To (Adapter End)	-	PSMP Plug, Female Socket
Dielectric Material	Polyetheretherketone (PEEK)	Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK), Liquid Crystal Polymer (LCP)
Fastening Type	Snap-On	Snap-On
Features	Smooth Bore	Smooth Bore, Limited Detent, EMI Ring
Frequency - Max [Max]	10 GHz	10 GHz
Housing Color	Gold	Gold
Impedance	50 Ohms	50 Ohms
Mounting Type	Surface Mount, Through Hole	Free Hanging (In-Line), Surface Mount, Through Hole
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Solder	Solder, Compression
Style	-	Straight
Voltage Rating	480 V	480 V

PSMP Series

PSMP-FSBA-2380 AMPHENOL RF CONNECTORS PSMP 0HZ TO 10GHZ 50OHM ST PL/PL GOLD - ARROW.COM

Part	Impedance	Body Finish	Center Contact Material	Mounting Type	Center Gender	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Adapter Type	Dielectric Material	Style	Center Contact Plating	Conversion Type	Convert To (Adapter End)	Body Material	Convert From (Adapter End)	Frequency - Max [Max]	Shield Termination	Number of Ports	Connector Type	Connector Style	Voltage Rating	Housing Color	Features	Contact Termination
AMPHENOL RF PSMP-FSBA-2380	50 Ohms	White Bronze	Beryllium Copper	Free Hanging (In-Line)	Female to Female	-65 ░C	165 °C	Snap-On	Plug to Plug	Polytetrafluoroethylene (PTFE)	Straight	Gold	Same Series	Female Socket, PSMP Plug	Beryllium Copper	PSMP Plug, Female Socket	10 GHz
AMPHENOL RF PSMP-FSBA-2580	50 Ohms	White Bronze	Beryllium Copper	Free Hanging (In-Line)	Female to Female	-65 ░C	165 °C	Snap-On	Plug to Plug	Polytetrafluoroethylene (PTFE)	Straight	Gold	Same Series	Female Socket, PSMP Plug	Beryllium Copper	PSMP Plug, Female Socket	10 GHz
AMPHENOL RF PSMP-FSBA-1175	50 Ohms	White Bronze	Beryllium Copper	Free Hanging (In-Line)	Female to Female	-65 ░C	165 °C	Snap-On	Plug to Plug	Polytetrafluoroethylene (PTFE)	Straight	Gold	Same Series	Female Socket, PSMP Plug	Beryllium Copper	PSMP Plug, Female Socket	10 GHz
AMPHENOL RF PSMP-FSBA-1000	50 Ohms	White Bronze	Beryllium Copper	Free Hanging (In-Line)	Female to Female	-65 ░C	165 °C	Snap-On	Plug to Plug	Polytetrafluoroethylene (PTFE)	Straight	Gold	Same Series	Female Socket, PSMP Plug	Beryllium Copper	PSMP Plug, Female Socket	10 GHz
AMPHENOL RF PSMP-MSSB-PCT1R	50 Ohms	Gold	Brass	Surface Mount, Through Hole		-65 ░C	165 °C	Snap-On		Polyetheretherketone (PEEK)		Gold			Brass		10 GHz	Solder	1	Jack, Male Pin	PSMP	480 V	Gold	Smooth Bore	Solder
AMPHENOL RF PSMP-MSLD-PCTEM	50 Ohms	Gold	Brass	Surface Mount, Through Hole		-65 ░C	165 °C	Snap-On		Liquid Crystal Polymer (LCP)		Gold			Brass		10 GHz	Compression	1	Jack, Male Pin	PSMP	480 V	Gold	EMI Ring, Limited Detent	Solder
AMPHENOL RF PSMP-FSBA-1755	50 Ohms	White Bronze	Beryllium Copper	Free Hanging (In-Line)	Female to Female	-65 ░C	165 °C	Snap-On	Plug to Plug	Polytetrafluoroethylene (PTFE)	Straight	Gold	Same Series	Female Socket, PSMP Plug	Beryllium Copper	PSMP Plug, Female Socket	10 GHz
AMPHENOL RF PSMP-FSBA-1042	50 Ohms	White Bronze	Beryllium Copper	Free Hanging (In-Line)	Female to Female	-65 ░C	165 °C	Snap-On	Plug to Plug	Polytetrafluoroethylene (PTFE)	Straight	Gold	Same Series	Female Socket, PSMP Plug	Beryllium Copper	PSMP Plug, Female Socket	10 GHz
