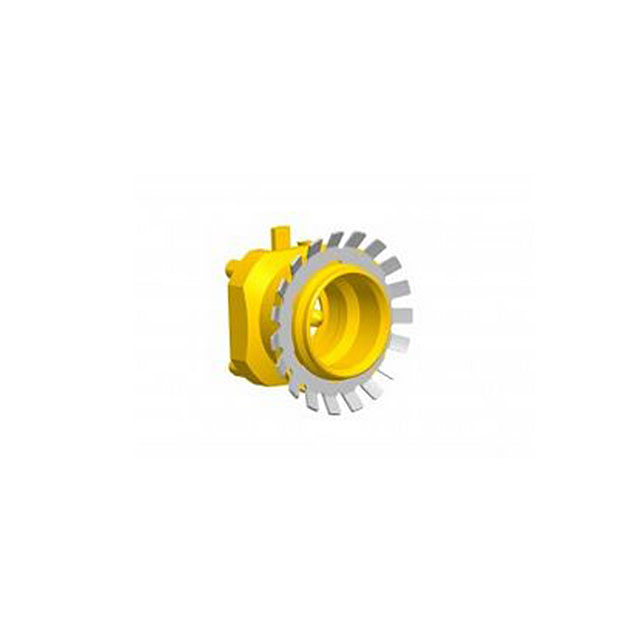

PSMP-MSLD-PCTEM

Active

AMPHENOL RF

CONN PSMP 0HZ TO 10GHZ 50OHM SOLDER ST SMD F GOLD OVER HIGH PHOSPHOROUS ELECTROLESS NICKEL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPSMP Series Product Intro

PSMP-MSLD-PCTEM

Active

AMPHENOL RF

CONN PSMP 0HZ TO 10GHZ 50OHM SOLDER ST SMD F GOLD OVER HIGH PHOSPHOROUS ELECTROLESS NICKEL

Deep-Dive with AI

DocumentsPSMP Series Product Intro

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	5	$ 13.28
Digikey	Bulk	1	$ 15.65
		10	$ 13.87
		25	$ 13.34
		50	$ 12.80
		100	$ 12.09
		300	$ 11.02
		500	$ 10.31
		1000	$ 9.46

Description

General part information

PSMP Series

PSMP Connector Jack, Male Pin 50 Ohms Surface Mount, Through Hole Solder

Documents

Technical documentation and resources

PSMP Series Product Intro

Datasheet

Specification	PSMP-MSLD-PCTEM	PSMP Series

Adapter Type	-	Plug to Plug
Body Finish	Gold	White Bronze, Gold
Body Material	Brass	Beryllium Copper, Brass
Center Contact Material	Brass	Beryllium Copper, Brass
Center Contact Plating	Gold	Gold
Center Gender	-	Female to Female
Connector Style	PSMP	PSMP
Connector Type	Male Pin, Jack	Male Pin, Jack
Contact Termination	Solder	Solder
Conversion Type	-	Same Series
Convert From (Adapter End)	-	PSMP Plug, Female Socket
Convert To (Adapter End)	-	PSMP Plug, Female Socket
Dielectric Material	Liquid Crystal Polymer (LCP)	Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK), Liquid Crystal Polymer (LCP)
Fastening Type	Snap-On	Snap-On
Features	Limited Detent, EMI Ring	Smooth Bore, Limited Detent, EMI Ring
Frequency - Max [Max]	10 GHz	10 GHz
Housing Color	Gold	Gold
Impedance	50 Ohms	50 Ohms
Mounting Type	Surface Mount, Through Hole	Free Hanging (In-Line), Surface Mount, Through Hole
Number of Ports	1	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Compression	Solder, Compression
Style	-	Straight
Voltage Rating	480 V	480 V

Part

Impedance

Body Finish

Center Contact Material

Mounting Type

Center Gender

Operating Temperature [Min]

Operating Temperature [Max]

Fastening Type

Adapter Type

Dielectric Material

Style

Center Contact Plating

Conversion Type

Convert To (Adapter End)

Body Material

Convert From (Adapter End)

Frequency - Max [Max]

Shield Termination

Number of Ports

Connector Type

Connector Style

Voltage Rating

Housing Color

Features

Contact Termination

AMPHENOL RF

PSMP-FSBA-2380

50 Ohms

White Bronze

Beryllium Copper

Free Hanging (In-Line)

Female to Female

-65 ░C

165 °C

Snap-On

Plug to Plug

Polytetrafluoroethylene (PTFE)

Straight

Gold

Same Series

Female Socket, PSMP Plug

Beryllium Copper

PSMP Plug, Female Socket

10 GHz

AMPHENOL RF

PSMP-FSBA-2580

50 Ohms

White Bronze

Beryllium Copper

Free Hanging (In-Line)

Female to Female

-65 ░C

165 °C

Snap-On

Plug to Plug

Polytetrafluoroethylene (PTFE)

Straight

Gold

Same Series

Female Socket, PSMP Plug

Beryllium Copper

PSMP Plug, Female Socket

10 GHz

AMPHENOL RF

PSMP-FSBA-1175

50 Ohms

White Bronze

Beryllium Copper

Free Hanging (In-Line)

Female to Female

-65 ░C

165 °C

Snap-On

Plug to Plug

Polytetrafluoroethylene (PTFE)

Straight

Gold

Same Series

Female Socket, PSMP Plug

Beryllium Copper

PSMP Plug, Female Socket

10 GHz

AMPHENOL RF

PSMP-FSBA-1000

50 Ohms

White Bronze

Beryllium Copper

Free Hanging (In-Line)

Female to Female

-65 ░C

165 °C

Snap-On

Plug to Plug

Polytetrafluoroethylene (PTFE)

Straight

Gold

Same Series

Female Socket, PSMP Plug

Beryllium Copper

PSMP Plug, Female Socket

10 GHz

AMPHENOL RF

PSMP-MSSB-PCT1R

50 Ohms

Gold

Brass

Surface Mount, Through Hole

-65 ░C

165 °C

Snap-On

Polyetheretherketone (PEEK)

Gold

Brass

10 GHz

Solder

Jack, Male Pin

PSMP

480 V

Gold

Smooth Bore

Solder

AMPHENOL RF

PSMP-MSLD-PCTEM

50 Ohms

Gold

Brass

Surface Mount, Through Hole

-65 ░C

165 °C

Snap-On

Liquid Crystal Polymer (LCP)

Gold

Brass

10 GHz

Compression

Jack, Male Pin

PSMP

480 V

Gold

EMI Ring, Limited Detent

Solder

AMPHENOL RF

PSMP-FSBA-1755

50 Ohms

White Bronze

Beryllium Copper

Free Hanging (In-Line)

Female to Female

-65 ░C

165 °C

Snap-On

Plug to Plug

Polytetrafluoroethylene (PTFE)

Straight

Gold

Same Series

Female Socket, PSMP Plug

Beryllium Copper

PSMP Plug, Female Socket

10 GHz

AMPHENOL RF

PSMP-FSBA-1042

50 Ohms

White Bronze

Beryllium Copper

Free Hanging (In-Line)

Female to Female

-65 ░C

165 °C

Snap-On

Plug to Plug

Polytetrafluoroethylene (PTFE)

Straight

Gold

Same Series

Female Socket, PSMP Plug

Beryllium Copper

PSMP Plug, Female Socket

10 GHz

Part	Impedance	Body Finish	Center Contact Material	Mounting Type	Center Gender	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Adapter Type	Dielectric Material	Style	Center Contact Plating	Conversion Type	Convert To (Adapter End)	Body Material	Convert From (Adapter End)	Frequency - Max [Max]	Shield Termination	Number of Ports	Connector Type	Connector Style	Voltage Rating	Housing Color	Features	Contact Termination
AMPHENOL RF PSMP-FSBA-2380	50 Ohms	White Bronze	Beryllium Copper	Free Hanging (In-Line)	Female to Female	-65 ░C	165 °C	Snap-On	Plug to Plug	Polytetrafluoroethylene (PTFE)	Straight	Gold	Same Series	Female Socket, PSMP Plug	Beryllium Copper	PSMP Plug, Female Socket	10 GHz
AMPHENOL RF PSMP-FSBA-2580	50 Ohms	White Bronze	Beryllium Copper	Free Hanging (In-Line)	Female to Female	-65 ░C	165 °C	Snap-On	Plug to Plug	Polytetrafluoroethylene (PTFE)	Straight	Gold	Same Series	Female Socket, PSMP Plug	Beryllium Copper	PSMP Plug, Female Socket	10 GHz
AMPHENOL RF PSMP-FSBA-1175	50 Ohms	White Bronze	Beryllium Copper	Free Hanging (In-Line)	Female to Female	-65 ░C	165 °C	Snap-On	Plug to Plug	Polytetrafluoroethylene (PTFE)	Straight	Gold	Same Series	Female Socket, PSMP Plug	Beryllium Copper	PSMP Plug, Female Socket	10 GHz
AMPHENOL RF PSMP-FSBA-1000	50 Ohms	White Bronze	Beryllium Copper	Free Hanging (In-Line)	Female to Female	-65 ░C	165 °C	Snap-On	Plug to Plug	Polytetrafluoroethylene (PTFE)	Straight	Gold	Same Series	Female Socket, PSMP Plug	Beryllium Copper	PSMP Plug, Female Socket	10 GHz
AMPHENOL RF PSMP-MSSB-PCT1R	50 Ohms	Gold	Brass	Surface Mount, Through Hole		-65 ░C	165 °C	Snap-On		Polyetheretherketone (PEEK)		Gold			Brass		10 GHz	Solder	1	Jack, Male Pin	PSMP	480 V	Gold	Smooth Bore	Solder
AMPHENOL RF PSMP-MSLD-PCTEM	50 Ohms	Gold	Brass	Surface Mount, Through Hole		-65 ░C	165 °C	Snap-On		Liquid Crystal Polymer (LCP)		Gold			Brass		10 GHz	Compression	1	Jack, Male Pin	PSMP	480 V	Gold	EMI Ring, Limited Detent	Solder
AMPHENOL RF PSMP-FSBA-1755	50 Ohms	White Bronze	Beryllium Copper	Free Hanging (In-Line)	Female to Female	-65 ░C	165 °C	Snap-On	Plug to Plug	Polytetrafluoroethylene (PTFE)	Straight	Gold	Same Series	Female Socket, PSMP Plug	Beryllium Copper	PSMP Plug, Female Socket	10 GHz
AMPHENOL RF PSMP-FSBA-1042	50 Ohms	White Bronze	Beryllium Copper	Free Hanging (In-Line)	Female to Female	-65 ░C	165 °C	Snap-On	Plug to Plug	Polytetrafluoroethylene (PTFE)	Straight	Gold	Same Series	Female Socket, PSMP Plug	Beryllium Copper	PSMP Plug, Female Socket	10 GHz
