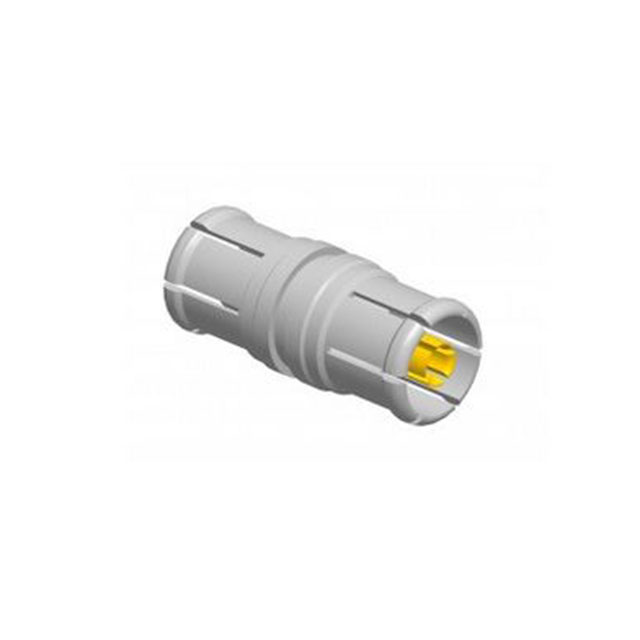

PSMP-FSBA-1042

Active

AMPHENOL RF

CONN ADAPT PLUG-PLUG PSMP 50 OHM

Deep-Dive with AI

DocumentsPSMP Series Product Intro

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PSMP Series

Adapter Coaxial Connector PSMP Plug, Female Socket To PSMP Plug, Female Socket 50 Ohms

Documents

Technical documentation and resources

PSMP Series Product Intro

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PSMP-FSBA-1042	PSMP Series

Adapter Type	Plug to Plug	Plug to Plug
Body Finish	White Bronze	White Bronze, Gold
Body Material	Beryllium Copper	Beryllium Copper, Brass
Center Contact Material	Beryllium Copper	Beryllium Copper, Brass
Center Contact Plating	Gold	Gold
Center Gender	Female to Female	Female to Female
Connector Style	-	PSMP
Connector Type	-	Male Pin, Jack
Contact Termination	-	Solder
Conversion Type	Same Series	Same Series
Convert From (Adapter End)	PSMP Plug, Female Socket	PSMP Plug, Female Socket
Convert To (Adapter End)	PSMP Plug, Female Socket	PSMP Plug, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK), Liquid Crystal Polymer (LCP)
Fastening Type	Snap-On	Snap-On
Features	-	Smooth Bore, Limited Detent, EMI Ring
Frequency - Max [Max]	10 GHz	10 GHz
Housing Color	-	Gold
Impedance	50 Ohms	50 Ohms
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Surface Mount, Through Hole
Number of Ports	-	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	-	Solder, Compression
Style	Straight	Straight
Voltage Rating	-	480 V

PSMP Series

PSMP-FSBA-2380 AMPHENOL RF CONNECTORS PSMP 0HZ TO 10GHZ 50OHM ST PL/PL GOLD - ARROW.COM

Part	Impedance	Body Finish	Center Contact Material	Mounting Type	Center Gender	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Adapter Type	Dielectric Material	Style	Center Contact Plating	Conversion Type	Convert To (Adapter End)	Body Material	Convert From (Adapter End)	Frequency - Max [Max]	Shield Termination	Number of Ports	Connector Type	Connector Style	Voltage Rating	Housing Color	Features	Contact Termination
AMPHENOL RF PSMP-FSBA-2380	50 Ohms	White Bronze	Beryllium Copper	Free Hanging (In-Line)	Female to Female	-65 ░C	165 °C	Snap-On	Plug to Plug	Polytetrafluoroethylene (PTFE)	Straight	Gold	Same Series	Female Socket, PSMP Plug	Beryllium Copper	PSMP Plug, Female Socket	10 GHz
AMPHENOL RF PSMP-FSBA-2580	50 Ohms	White Bronze	Beryllium Copper	Free Hanging (In-Line)	Female to Female	-65 ░C	165 °C	Snap-On	Plug to Plug	Polytetrafluoroethylene (PTFE)	Straight	Gold	Same Series	Female Socket, PSMP Plug	Beryllium Copper	PSMP Plug, Female Socket	10 GHz
AMPHENOL RF PSMP-FSBA-1175	50 Ohms	White Bronze	Beryllium Copper	Free Hanging (In-Line)	Female to Female	-65 ░C	165 °C	Snap-On	Plug to Plug	Polytetrafluoroethylene (PTFE)	Straight	Gold	Same Series	Female Socket, PSMP Plug	Beryllium Copper	PSMP Plug, Female Socket	10 GHz
AMPHENOL RF PSMP-FSBA-1000	50 Ohms	White Bronze	Beryllium Copper	Free Hanging (In-Line)	Female to Female	-65 ░C	165 °C	Snap-On	Plug to Plug	Polytetrafluoroethylene (PTFE)	Straight	Gold	Same Series	Female Socket, PSMP Plug	Beryllium Copper	PSMP Plug, Female Socket	10 GHz
AMPHENOL RF PSMP-MSSB-PCT1R	50 Ohms	Gold	Brass	Surface Mount, Through Hole		-65 ░C	165 °C	Snap-On		Polyetheretherketone (PEEK)		Gold			Brass		10 GHz	Solder	1	Jack, Male Pin	PSMP	480 V	Gold	Smooth Bore	Solder
AMPHENOL RF PSMP-MSLD-PCTEM	50 Ohms	Gold	Brass	Surface Mount, Through Hole		-65 ░C	165 °C	Snap-On		Liquid Crystal Polymer (LCP)		Gold			Brass		10 GHz	Compression	1	Jack, Male Pin	PSMP	480 V	Gold	EMI Ring, Limited Detent	Solder
AMPHENOL RF PSMP-FSBA-1755	50 Ohms	White Bronze	Beryllium Copper	Free Hanging (In-Line)	Female to Female	-65 ░C	165 °C	Snap-On	Plug to Plug	Polytetrafluoroethylene (PTFE)	Straight	Gold	Same Series	Female Socket, PSMP Plug	Beryllium Copper	PSMP Plug, Female Socket	10 GHz
AMPHENOL RF PSMP-FSBA-1042	50 Ohms	White Bronze	Beryllium Copper	Free Hanging (In-Line)	Female to Female	-65 ░C	165 °C	Snap-On	Plug to Plug	Polytetrafluoroethylene (PTFE)	Straight	Gold	Same Series	Female Socket, PSMP Plug	Beryllium Copper	PSMP Plug, Female Socket	10 GHz
