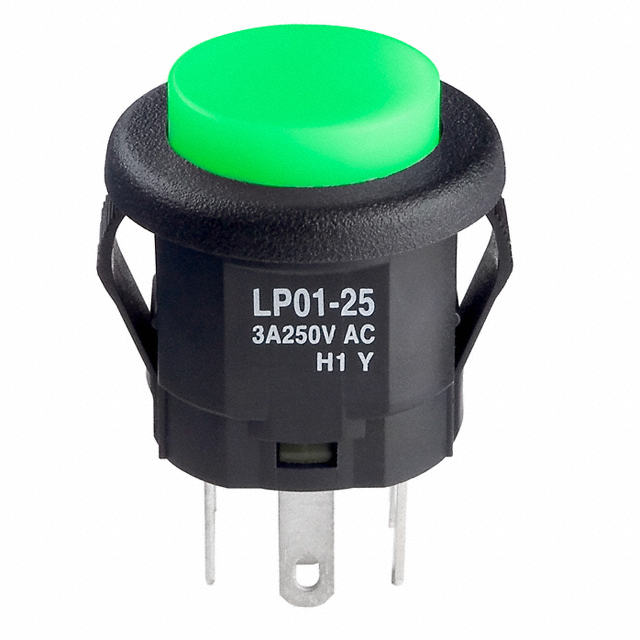

LP0125CMKW015FB

Active

NKK Switches

SHORT BODY PUSHBUTTON; POLES: DPDT; CIRCUITS: ON-MOM; CURRENT RATING: 3A (AC/DC); RATING (AC): 125V; RATING (DC): 30V; ACTUATOR TYPE: ROUND, BUTTON; ACTUATOR CAP COLOR: WHITE; ILLUMINATION COLOR: LED, GREEN; ILLUMINATION VOLTAGE: 2.1 VDC; MOUNTING TYPE: PANEL MOUNT, SNAP-IN; TERMINATION STYLE: SOLDER, QUICK CONNECT - 0.110" (2.8MM); PANEL CUTOUT DIMENSIONS: CIRCULAR - 17.30MM DIA; RATING: 3; ILLUMINATION: ILLUMINATED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LP0125CMKW015FB

Active

NKK Switches

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LP0125CMKW015FB

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPDT
Color - Actuator/Cap	White
Current Rating (Amps)	3 A
Electrical Life	50000 Cycles
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	2.1 VDC
Mechanical Life	500000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [diameter]	17.3 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

LP0125C Series

Part	Termination Style	Termination Style	Termination Style	Mounting Type	Actuator Type	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Current Rating (Amps)	Actuator Marking	Electrical Life	Mechanical Life	Color - Actuator/Cap	Voltage Rating - DC	Switch Function	Panel Cutout Dimensions [diameter]	Type	Illumination Voltage (Nominal)	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Illumination Type, Color
NKK Switches LP0125CCKW01A/CUL	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	Button Round	DPDT	70 °C	-25 °C	125 V	3 A	No Marking	50000 Cycles	500000 Cycles	Black	30 V	On-Mom	16 mm	Standard
NKK Switches LP0125CMKW01C	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Snap-In	Button Round	DPDT	70 °C	-25 °C	125 V	3 A	No Marking	50000 Cycles	500000 Cycles	Red	30 V	On-Mom	17.3 mm	Standard
NKK Switches LP0125CCKW01F	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	Button Round	DPDT	70 °C	-25 °C	125 V	3 A	No Marking	50000 Cycles	500000 Cycles	Green	30 V	On-Mom	16 mm	Standard
NKK Switches LP0125CMKW015FB	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Snap-In	Button Round	DPDT			125 V	3 A	No Marking	50000 Cycles	500000 Cycles	White	30 V	On-Mom	17.3 mm	Illuminated Standard	2.1 VDC	-10 °C	50 °C	Green LED
NKK Switches LP0125CCKW01C	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	Button Round	DPDT	70 °C	-25 °C	125 V	3 A	No Marking	50000 Cycles	500000 Cycles	Red	30 V	On-Mom	16 mm	Standard
NKK Switches LP0125CMKW01A	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Snap-In	Button Round	DPDT	70 °C	-25 °C	125 V	3 A	No Marking	50000 Cycles	500000 Cycles	Black	30 V	On-Mom	17.3 mm	Standard

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.03
		10	$ 13.47
		25	$ 12.88
		50	$ 12.22
		100	$ 11.77
		250	$ 11.03
		500	$ 10.22
		1000	$ 9.16
Newark	Each	1	$ 28.52
		5	$ 27.09
		10	$ 25.11
		25	$ 22.90
		50	$ 19.82
		100	$ 18.50
		250	$ 16.85

Description

General part information

LP0125C Series

Pushbutton Switch DPDT Standard, Illuminated Panel Mount, Snap-In
