LP0125CCKW01F

Active

NKK Switches

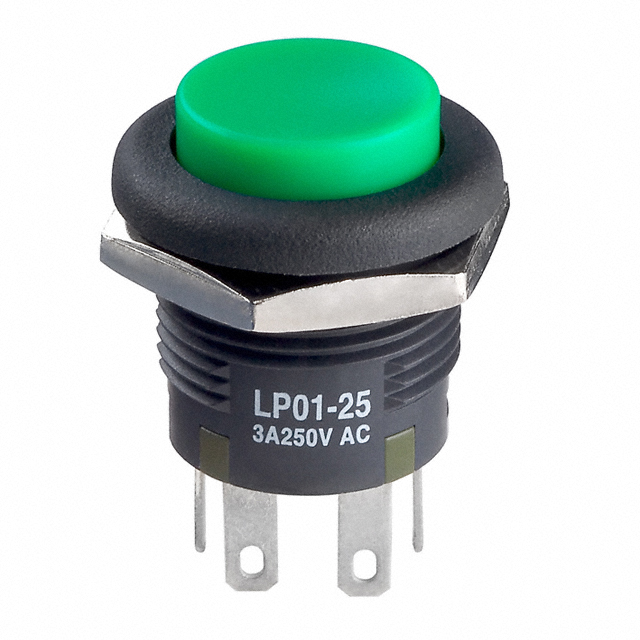

PUSHBUTTON SWITCH, LP01 SERIES, 16 MM, DPDT, ON-(ON), ROUND, GREEN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

LP0125CCKW01F

Active

NKK Switches

PUSHBUTTON SWITCH, LP01 SERIES, 16 MM, DPDT, ON-(ON), ROUND, GREEN

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LP0125CCKW01F

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPDT
Color - Actuator/Cap	Green
Current Rating (Amps)	3 A
Electrical Life	50000 Cycles
Mechanical Life	500000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

LP0125C Series

Part	Termination Style	Termination Style	Termination Style	Mounting Type	Actuator Type	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Current Rating (Amps)	Actuator Marking	Electrical Life	Mechanical Life	Color - Actuator/Cap	Voltage Rating - DC	Switch Function	Panel Cutout Dimensions [diameter]	Type	Illumination Voltage (Nominal)	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Illumination Type, Color
NKK Switches LP0125CCKW01A/CUL	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	Button Round	DPDT	70 °C	-25 °C	125 V	3 A	No Marking	50000 Cycles	500000 Cycles	Black	30 V	On-Mom	16 mm	Standard
NKK Switches LP0125CMKW01C	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Snap-In	Button Round	DPDT	70 °C	-25 °C	125 V	3 A	No Marking	50000 Cycles	500000 Cycles	Red	30 V	On-Mom	17.3 mm	Standard
NKK Switches LP0125CCKW01F	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	Button Round	DPDT	70 °C	-25 °C	125 V	3 A	No Marking	50000 Cycles	500000 Cycles	Green	30 V	On-Mom	16 mm	Standard
NKK Switches LP0125CMKW015FB	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Snap-In	Button Round	DPDT			125 V	3 A	No Marking	50000 Cycles	500000 Cycles	White	30 V	On-Mom	17.3 mm	Illuminated Standard	2.1 VDC	-10 °C	50 °C	Green LED
NKK Switches LP0125CCKW01C	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	Button Round	DPDT	70 °C	-25 °C	125 V	3 A	No Marking	50000 Cycles	500000 Cycles	Red	30 V	On-Mom	16 mm	Standard
NKK Switches LP0125CMKW01A	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Snap-In	Button Round	DPDT	70 °C	-25 °C	125 V	3 A	No Marking	50000 Cycles	500000 Cycles	Black	30 V	On-Mom	17.3 mm	Standard
