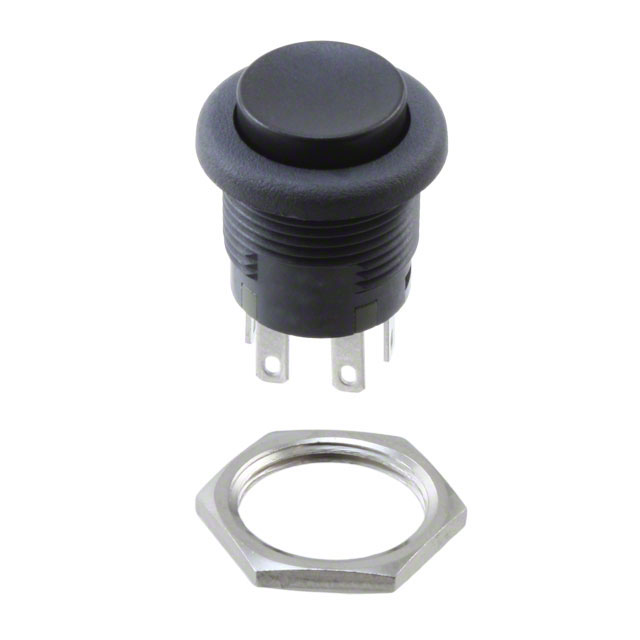

LP0125CCKW01A/CUL

Active

NKK Switches

SHORT BODY PUSHBUTTON/NON ILLUMI

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LP0125CCKW01A/CUL

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	3 A
Electrical Life	50000 Cycles
Mechanical Life	500000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

LP0125C Series

Part	Termination Style	Termination Style	Termination Style	Mounting Type	Actuator Type	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Current Rating (Amps)	Actuator Marking	Electrical Life	Mechanical Life	Color - Actuator/Cap	Voltage Rating - DC	Switch Function	Panel Cutout Dimensions [diameter]	Type	Illumination Voltage (Nominal)	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Illumination Type, Color
NKK Switches LP0125CCKW01A/CUL	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	Button Round	DPDT	70 °C	-25 °C	125 V	3 A	No Marking	50000 Cycles	500000 Cycles	Black	30 V	On-Mom	16 mm	Standard
NKK Switches LP0125CMKW01C	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Snap-In	Button Round	DPDT	70 °C	-25 °C	125 V	3 A	No Marking	50000 Cycles	500000 Cycles	Red	30 V	On-Mom	17.3 mm	Standard
NKK Switches LP0125CCKW01F	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	Button Round	DPDT	70 °C	-25 °C	125 V	3 A	No Marking	50000 Cycles	500000 Cycles	Green	30 V	On-Mom	16 mm	Standard
NKK Switches LP0125CMKW015FB	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Snap-In	Button Round	DPDT			125 V	3 A	No Marking	50000 Cycles	500000 Cycles	White	30 V	On-Mom	17.3 mm	Illuminated Standard	2.1 VDC	-10 °C	50 °C	Green LED
NKK Switches LP0125CCKW01C	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	Button Round	DPDT	70 °C	-25 °C	125 V	3 A	No Marking	50000 Cycles	500000 Cycles	Red	30 V	On-Mom	16 mm	Standard
NKK Switches LP0125CMKW01A	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Snap-In	Button Round	DPDT	70 °C	-25 °C	125 V	3 A	No Marking	50000 Cycles	500000 Cycles	Black	30 V	On-Mom	17.3 mm	Standard
