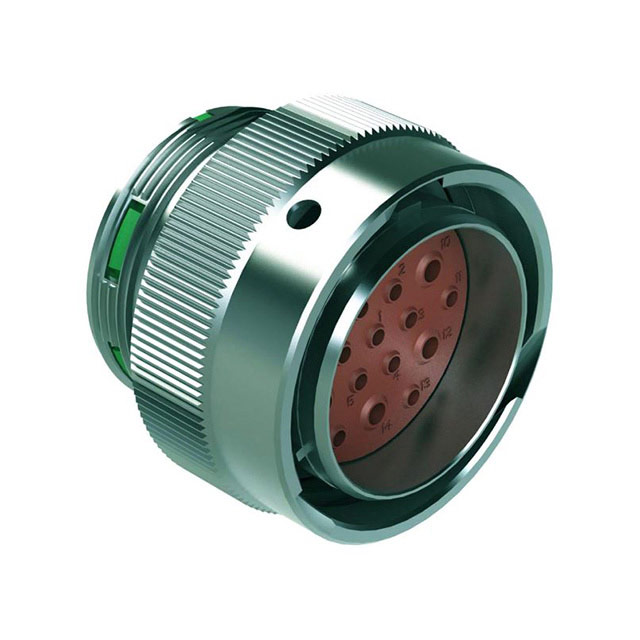

AHDM06-24-19PN
ActiveAmphenol Sine Systems Corp
CONN PLUG HSNG MALE 19POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
AHDM06-24-19PN
ActiveAmphenol Sine Systems Corp
CONN PLUG HSNG MALE 19POS INLINE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AHDM06-24-19PN |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 12, 16 |
| Contact Size | 6, 13 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut |
| Housing Color | Silver |
| Ingress Protection | IP69K, IP67 |
| Insert Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 19 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Keyed |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | 24-19 |
| Shielding | Unshielded |
| Type | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.83 | |
| 10 | $ 19.99 | |||
| 25 | $ 19.13 | |||
| 50 | $ 18.51 | |||
| 200 | $ 17.90 | |||
| 400 | $ 16.91 | |||
| 600 | $ 16.42 | |||
Description
General part information
AHDM06 Series
19 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
