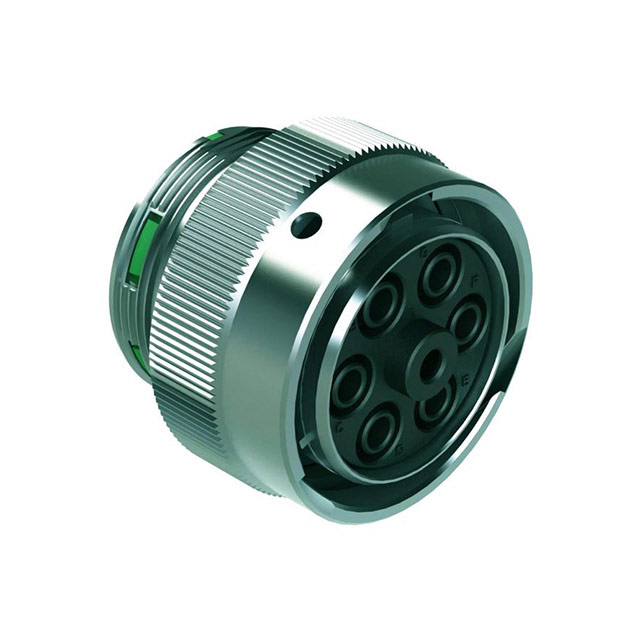

AHDM06-24-07SN
ActiveAmphenol Sine Systems Corp
CONN PLUG HSNG FMALE 7POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
AHDM06-24-07SN
ActiveAmphenol Sine Systems Corp
CONN PLUG HSNG FMALE 7POS INLINE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AHDM06-24-07SN |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 8, 12 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut |
| Housing Color | Silver |
| Ingress Protection | IP69K, IP67 |
| Insert Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 7 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Keyed |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | 24-7 |
| Shielding | Unshielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.20 | |
| 10 | $ 12.56 | |||
Description
General part information
AHDM06 Series
7 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
