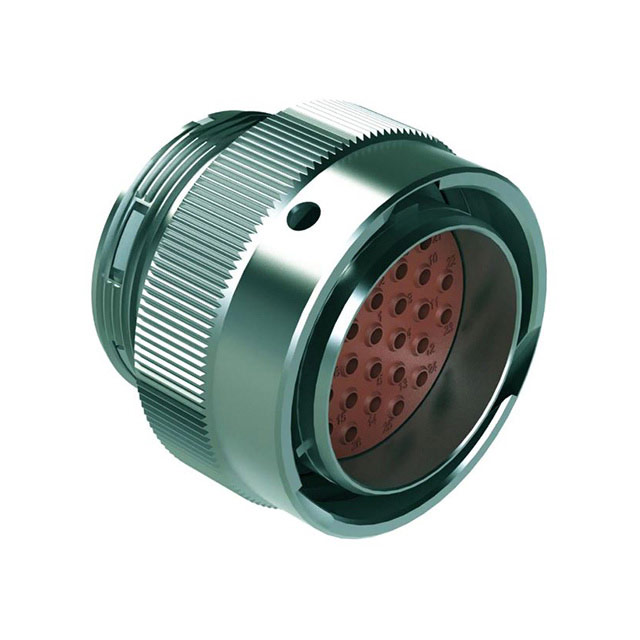

AHDM06-24-31PT

Active

Amphenol Sine Systems Corp

CONN PLUG HSNG MALE 31POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsA Series Family Datasheet +1

AHDM06-24-31PT

Active

Amphenol Sine Systems Corp

CONN PLUG HSNG MALE 31POS INLINE

Deep-Dive with AI

DocumentsA Series Family Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AHDM06-24-31PT

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Silver
Ingress Protection	IP69K, IP67
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	31
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert [Max]	31
Shell Size - Insert [Min]	24
Shielding	Unshielded
Type	For Male Pins

AHDM06 Series

...

Part	Housing Color	Includes	Shell Finish	Contact Type	Number of Positions	Insert Material	Note	Contact Shape	Orientation	Connector Type	Shielding	Type	Shell Material	Shell Size - Insert	Fastening Type	Features	Contact Size	Contact Size	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Contact Size
Amphenol Sine Systems Corp AHDM06-24-19SR-059	Silver	1 Backshell 1 Connector	Nickel	Crimp	19	Thermoplastic	Contacts Not Included	Circular	Keyed	Plug Housing	Unshielded	For Female Sockets	Zinc Alloy	24-19	Bayonet Lock	Backshell Cable Clamp Coupling Nut	12 16	6 13	IP67 IP69K	-55 °C	125 °C	Free Hanging (In-Line)
Amphenol Sine Systems Corp AHDM06-24-19PN	Silver		Nickel	Crimp	19	Thermoplastic	Contacts Not Included	Circular	Keyed	Plug Housing	Unshielded	For Male Pins	Zinc Alloy	24-19	Bayonet Lock	Coupling Nut	12 16	6 13	IP67 IP69K	-55 °C	125 °C	Free Hanging (In-Line)
Amphenol Sine Systems Corp AHDM06-24-23PR-059	Silver	1 Backshell 1 Connector	Nickel	Crimp	23	Thermoplastic	Contacts Not Included	Circular	Keyed	Plug Housing	Unshielded	For Male Pins	Zinc Alloy		Bayonet Lock	Backshell Cable Clamp Coupling Nut	16		IP67 IP69K	-55 °C	125 °C	Free Hanging (In-Line)	24	23
Amphenol Sine Systems Corp AHDM06-18-08PR-059	Silver	1 Backshell 1 Connector	Nickel	Crimp	8	Thermoplastic	Contacts Not Included	Circular	Keyed	Plug Housing	Unshielded	For Male Pins	Zinc Alloy	18-8	Bayonet Lock	Backshell Cable Clamp Coupling Nut	12		IP67 IP69K	-55 °C	125 °C	Free Hanging (In-Line)
Amphenol Sine Systems Corp AHDM06-24-21SR	Silver		Nickel	Crimp	21	Thermoplastic	Contacts Not Included	Circular	Keyed	Plug Housing	Unshielded	For Female Sockets	Zinc Alloy	24-21	Bayonet Lock	Coupling Nut	12 16		IP67 IP69K	-55 °C	125 °C	Free Hanging (In-Line)
Amphenol Sine Systems Corp AHDM06-24-07SN	Silver		Nickel	Crimp	7	Thermoplastic	Contacts Not Included	Circular	Keyed	Plug Housing	Unshielded	For Female Sockets	Zinc Alloy	24-7	Bayonet Lock	Coupling Nut	8 12		IP67 IP69K	-55 °C	125 °C	Free Hanging (In-Line)
Amphenol Sine Systems Corp AHDM06-24-18SR-059	Silver	1 Backshell 1 Connector	Nickel	Crimp	18	Thermoplastic	Contacts Not Included	Circular	Keyed	Plug Housing	Unshielded	For Female Sockets	Zinc Alloy		Bayonet Lock	Backshell Cable Clamp Coupling Nut			IP67 IP69K	-55 °C	125 °C	Free Hanging (In-Line)	18	24	12 (3) 16 (14) 8 (1)
Amphenol Sine Systems Corp AHDM06-24-18PR	Silver		Nickel	Crimp	18	Thermoplastic	Contacts Not Included	Circular	Keyed	Plug Housing	Unshielded	For Male Pins	Zinc Alloy		Bayonet Lock	Coupling Nut			IP67 IP69K	-55 °C	125 °C	Free Hanging (In-Line)	18	24	12 (3) 16 (14) 8 (1)
Amphenol Sine Systems Corp AHDM06-24-09SR-059	Silver	1 Backshell 1 Connector	Nickel	Crimp	9	Thermoplastic	Contacts Not Included	Circular	Keyed	Plug Housing	Unshielded	For Female Sockets	Zinc Alloy	24-9	Bayonet Lock	Backshell Cable Clamp Coupling Nut			IP67 IP69K	-55 °C	125 °C	Free Hanging (In-Line)			12 (6) 4 (1) 8 (2)
Amphenol Sine Systems Corp AHDM06-24-31PT	Silver		Nickel	Crimp	31	Thermoplastic	Contacts Not Included	Circular	Keyed	Plug Housing	Unshielded	For Male Pins	Zinc Alloy		Bayonet Lock	Coupling Nut	16		IP67 IP69K	-55 °C	125 °C	Free Hanging (In-Line)	31	24

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.09
		10	$ 15.31

Description

General part information

AHDM06 Series

31 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut

Documents

Technical documentation and resources

A Series Family

Datasheet

Dura|Mate™ Family Brochure

Datasheet
