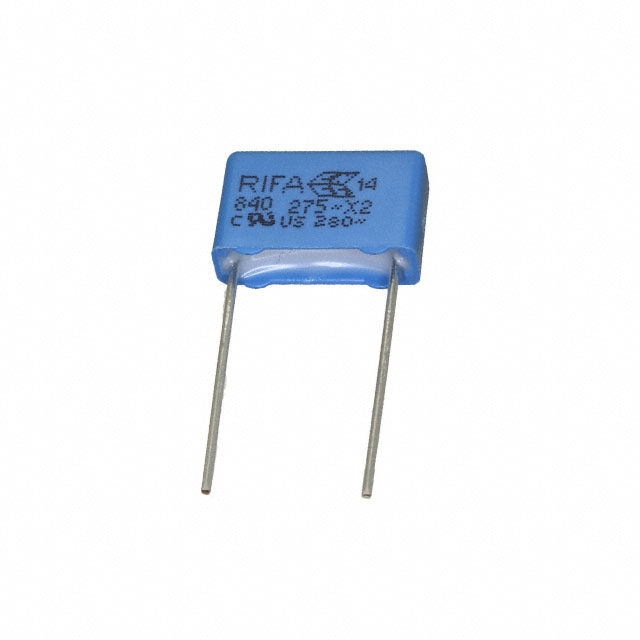

PHE840MK5470MK04R17 - PHE840MA5220MA01R17

PHE840MK5470MK04R17

Active
KEMET

CAP 0.047UF 760VDC/275VAC PLYP 20% 10.5 X 6 X 12MM RDL 7.5MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet ENManufacturer Catalogue EN+1
PHE840MK5470MK04R17 - PHE840MA5220MA01R17

PHE840MK5470MK04R17

Active
KEMET

CAP 0.047UF 760VDC/275VAC PLYP 20% 10.5 X 6 X 12MM RDL 7.5MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsTechnical Data Sheet ENManufacturer Catalogue EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationPHE840MK5470MK04R17
ApplicationsEMI, RFI Suppression
Dielectric MaterialMetallized, Polypropylene (PP)
Height - Seated (Max) [Max] [z]12 mm
Height - Seated (Max) [Max] [z]0.472 "
Lead Spacing7.5 mm
Lead Spacing0.295 in
Mounting TypeThrough Hole
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 °C
Package / CaseRadial
RatingsX2
TerminationPC Pins
Tolerance20 %
Voltage Rating - AC275 V
Voltage Rating - DC760 V

PHE840 Series

PartApplicationsHeight - Seated (Max) [Max] [z]Height - Seated (Max) [Max] [z]Operating Temperature [Max]Operating Temperature [Min]TerminationLead SpacingLead SpacingMounting TypeToleranceRatingsCapacitanceVoltage Rating - ACDielectric MaterialSize / Dimension [x]Size / Dimension [x]Size / Dimension [y]Size / Dimension [y]Package / CaseVoltage Rating - DCHeight - Seated (Max) [Max]Height - Seated (Max) [Max]
KEMET
PHE840MR7680MR06R06L2
EMI
RFI Suppression
38 mm
1.496 in
105 ░C
-55 °C
PC Pins
37.5 mm
1.476 in
Through Hole
20 %
X2
6.8 ÁF
275 V
Metallized
Polypropylene (PP)
1.614 "
41 mm
0.827 in
21 mm
Radial
760 V
KEMET
PHE840EA5220MA01R17
EMI
RFI Suppression
105 ░C
-55 °C
PC Pins
10 mm
0.394 in
Through Hole
20 %
X2
0.022 µF
300 V
Metallized
Polypropylene (PP)
0.512 in
13 mm
0.157 in
4 mm
Radial
760 V
0.354 in
9 mm
KEMET
PHE840EZ7220MF14R25L2
EMI
RFI Suppression
28 mm
1.102 in
105 ░C
-55 °C
PC Pins
27.5 mm
1.083 in
Through Hole
20 %
X2
2.2 µF
300 V
Metallized
Polypropylene (PP)
1.24 in
31.5 mm
0.689 in
17.5 mm
Radial
760 V
KEMET
PHE840ED7100MD20R06L2
EMI
RFI Suppression
105 ░C
-55 °C
PC Pins
22.5 mm
0.886 in
Through Hole
20 %
X2
1 µF
300 V
Polyester
Metallized
1.024 in
26 mm
0.531 in
13.5 mm
Radial
760 V
0.906 in
23 mm
KEMET
PHE840MK5470MK04R17
EMI
RFI Suppression
12 mm
0.472 "
105 ░C
-55 °C
PC Pins
7.5 mm
0.295 in
Through Hole
20 %
X2
275 V
Metallized
Polypropylene (PP)
Radial
760 V
KEMET
PHE840MD6220MD13R30L1
EMI
RFI Suppression
14.5 mm
0.571 in
105 ░C
-55 °C
PC Pins
22.5 mm
0.886 in
Through Hole
20 %
X2
0.22 µF
275 V
Metallized
Polypropylene (PP)
1.024 in
26 mm
0.256 in
6.5 mm
Radial
760 V
KEMET
PHE840MB6100MB05R05
EMI
RFI Suppression
105 ░C
-55 °C
PC Pins
15 mm
0.591 in
Through Hole
20 %
X2
100000 pF
275 V
Metallized
Polypropylene (PP)
0.709 in
18 mm
0.217 in
5.5 mm
Radial
760 V
0.492 in
12.5 mm
KEMET
PHE840MB6470MB16R17
EMI
RFI Suppression
105 ░C
-55 °C
PC Pins
15 mm
0.591 in
Through Hole
20 %
X2
0.47 µF
275 V
Metallized
Polypropylene (PP)
0.709 "
18 mm
0.433 in
11 mm
Radial
760 V
0.748 in
19 mm
KEMET
PHE840MR7220MR05R06L2
EMI
RFI Suppression
24 mm
0.945 in
105 ░C
-55 °C
PC Pins
37.5 mm
1.476 in
Through Hole
20 %
X2
2.2 µF
275 V
Metallized
Polypropylene (PP)
1.614 "
41 mm
0.512 in
13 mm
Radial
760 V
KEMET
PHE840ER7470MR03R06L2
EMI
RFI Suppression
36 mm
1.417 in
105 ░C
-55 °C
PC Pins
37.5 mm
1.476 in
Through Hole
20 %
X2
4.7 µF
300 V
Metallized
Polypropylene (PP)
1.614 "
41 mm
0.748 in
19 mm
Radial
760 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 0.46
10$ 0.32
50$ 0.27
100$ 0.22
500$ 0.18
1000$ 0.17
NewarkEach 1$ 0.16
10$ 0.16
30$ 0.16
50$ 0.15
100$ 0.15

Description

General part information

PHE840 Series

0.047 µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial
