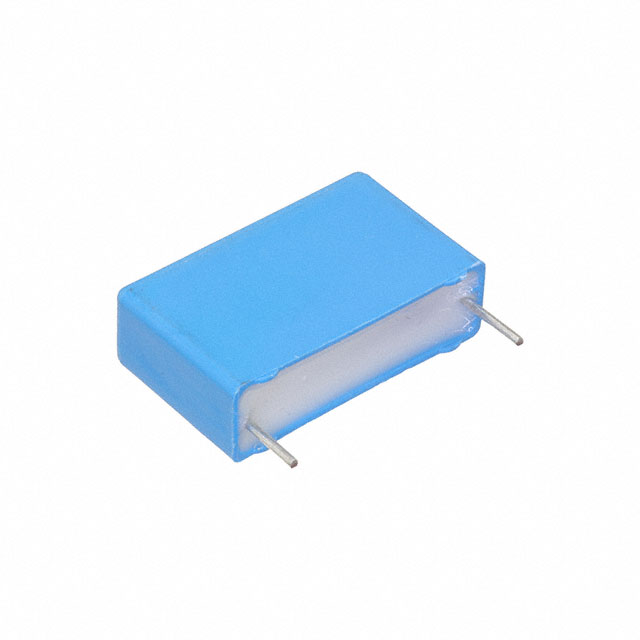

PHE840EZ7220MF14R25L2

Active

KEMET

CAP FILM 2.2UF 20% 760VDC RAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPHE840EZ7220MF14R25L2 Spec

PHE840EZ7220MF14R25L2

Active

KEMET

CAP FILM 2.2UF 20% 760VDC RAD

Deep-Dive with AI

DocumentsPHE840EZ7220MF14R25L2 Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PHE840EZ7220MF14R25L2

Applications	EMI, RFI Suppression
Capacitance	2.2 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max] [z]	1.102 in
Height - Seated (Max) [Max] [z]	28 mm
Lead Spacing	27.5 mm
Lead Spacing	1.083 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Ratings	X2
Size / Dimension [x]	31.5 mm
Size / Dimension [x]	1.24 in
Size / Dimension [y]	0.689 in
Size / Dimension [y]	17.5 mm
Termination	PC Pins
Tolerance	20 %
Voltage Rating - AC	300 V
Voltage Rating - DC	760 V

PHE840 Series

Part	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Lead Spacing	Lead Spacing	Mounting Type	Tolerance	Ratings	Capacitance	Voltage Rating - AC	Dielectric Material	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Package / Case	Voltage Rating - DC	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET PHE840MR7680MR06R06L2	EMI RFI Suppression	38 mm	1.496 in	105 ░C	-55 °C	PC Pins	37.5 mm	1.476 in	Through Hole	20 %	X2	6.8 ÁF	275 V	Metallized Polypropylene (PP)	1.614 "	41 mm	0.827 in	21 mm	Radial	760 V
KEMET PHE840EA5220MA01R17	EMI RFI Suppression			105 ░C	-55 °C	PC Pins	10 mm	0.394 in	Through Hole	20 %	X2	0.022 µF	300 V	Metallized Polypropylene (PP)	0.512 in	13 mm	0.157 in	4 mm	Radial	760 V	0.354 in	9 mm
KEMET PHE840EZ7220MF14R25L2	EMI RFI Suppression	28 mm	1.102 in	105 ░C	-55 °C	PC Pins	27.5 mm	1.083 in	Through Hole	20 %	X2	2.2 µF	300 V	Metallized Polypropylene (PP)	1.24 in	31.5 mm	0.689 in	17.5 mm	Radial	760 V
KEMET PHE840ED7100MD20R06L2	EMI RFI Suppression			105 ░C	-55 °C	PC Pins	22.5 mm	0.886 in	Through Hole	20 %	X2	1 µF	300 V	Polyester Metallized	1.024 in	26 mm	0.531 in	13.5 mm	Radial	760 V	0.906 in	23 mm
KEMET PHE840MK5470MK04R17	EMI RFI Suppression	12 mm	0.472 "	105 ░C	-55 °C	PC Pins	7.5 mm	0.295 in	Through Hole	20 %	X2		275 V	Metallized Polypropylene (PP)					Radial	760 V
KEMET PHE840MD6220MD13R30L1	EMI RFI Suppression	14.5 mm	0.571 in	105 ░C	-55 °C	PC Pins	22.5 mm	0.886 in	Through Hole	20 %	X2	0.22 µF	275 V	Metallized Polypropylene (PP)	1.024 in	26 mm	0.256 in	6.5 mm	Radial	760 V
KEMET PHE840MB6100MB05R05	EMI RFI Suppression			105 ░C	-55 °C	PC Pins	15 mm	0.591 in	Through Hole	20 %	X2	100000 pF	275 V	Metallized Polypropylene (PP)	0.709 in	18 mm	0.217 in	5.5 mm	Radial	760 V	0.492 in	12.5 mm
KEMET PHE840MB6470MB16R17	EMI RFI Suppression			105 ░C	-55 °C	PC Pins	15 mm	0.591 in	Through Hole	20 %	X2	0.47 µF	275 V	Metallized Polypropylene (PP)		0.709 " 18 mm		0.433 in 11 mm	Radial	760 V	0.748 in	19 mm
KEMET PHE840MR7220MR05R06L2	EMI RFI Suppression	24 mm	0.945 in	105 ░C	-55 °C	PC Pins	37.5 mm	1.476 in	Through Hole	20 %	X2	2.2 µF	275 V	Metallized Polypropylene (PP)	1.614 "	41 mm	0.512 in	13 mm	Radial	760 V
KEMET PHE840ER7470MR03R06L2	EMI RFI Suppression	36 mm	1.417 in	105 ░C	-55 °C	PC Pins	37.5 mm	1.476 in	Through Hole	20 %	X2	4.7 µF	300 V	Metallized Polypropylene (PP)	1.614 "	41 mm	0.748 in	19 mm	Radial	760 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.38
		10	$ 1.83
		126	$ 1.39
		1008	$ 0.98
		5040	$ 0.91
		10080	$ 0.89
Newark	Each	500	$ 1.22
		1000	$ 1.06
		2500	$ 0.95

Description

General part information

PHE840 Series

2.2 µF Film Capacitor 300V 760V Polypropylene (PP), Metallized Radial

Documents

Technical documentation and resources

PHE840EZ7220MF14R25L2 Spec

Datasheet
