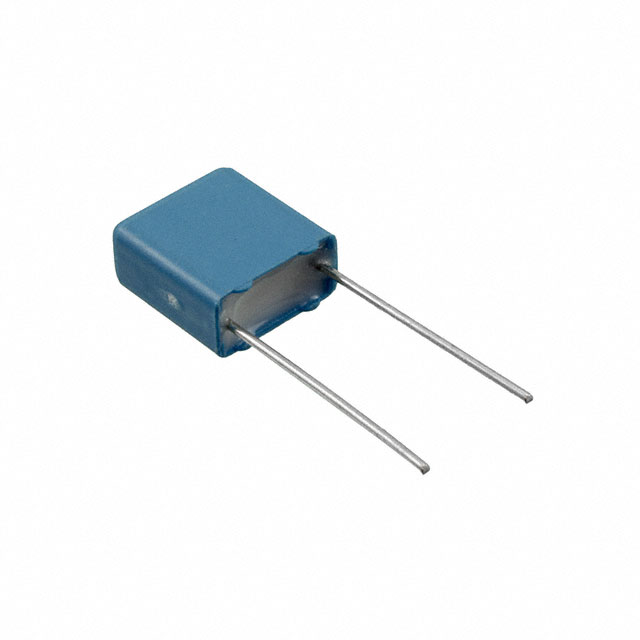

PHE840MB6470MB16R17

Active

KEMET

CAP FILM 0.47UF 20% 760VDC RAD

Deep-Dive with AI

DocumentsProduct Change Notice EN Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PHE840MB6470MB16R17

Applications	EMI, RFI Suppression
Capacitance	0.47 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max]	19 mm
Height - Seated (Max) [Max]	0.748 in
Lead Spacing	15 mm
Lead Spacing	0.591 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Ratings	X2
Size / Dimension [x]	0.709 ", 18 mm
Size / Dimension [y]	0.433 in, 11 mm
Termination	PC Pins
Tolerance	20 %
Voltage Rating - AC	275 V
Voltage Rating - DC	760 V

PHE840 Series

Part	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Lead Spacing	Lead Spacing	Mounting Type	Tolerance	Ratings	Capacitance	Voltage Rating - AC	Dielectric Material	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Package / Case	Voltage Rating - DC	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET PHE840MR7680MR06R06L2	EMI RFI Suppression	38 mm	1.496 in	105 ░C	-55 °C	PC Pins	37.5 mm	1.476 in	Through Hole	20 %	X2	6.8 ÁF	275 V	Metallized Polypropylene (PP)	1.614 "	41 mm	0.827 in	21 mm	Radial	760 V
KEMET PHE840EA5220MA01R17	EMI RFI Suppression			105 ░C	-55 °C	PC Pins	10 mm	0.394 in	Through Hole	20 %	X2	0.022 µF	300 V	Metallized Polypropylene (PP)	0.512 in	13 mm	0.157 in	4 mm	Radial	760 V	0.354 in	9 mm
KEMET PHE840EZ7220MF14R25L2	EMI RFI Suppression	28 mm	1.102 in	105 ░C	-55 °C	PC Pins	27.5 mm	1.083 in	Through Hole	20 %	X2	2.2 µF	300 V	Metallized Polypropylene (PP)	1.24 in	31.5 mm	0.689 in	17.5 mm	Radial	760 V
KEMET PHE840ED7100MD20R06L2	EMI RFI Suppression			105 ░C	-55 °C	PC Pins	22.5 mm	0.886 in	Through Hole	20 %	X2	1 µF	300 V	Polyester Metallized	1.024 in	26 mm	0.531 in	13.5 mm	Radial	760 V	0.906 in	23 mm
KEMET PHE840MK5470MK04R17	EMI RFI Suppression	12 mm	0.472 "	105 ░C	-55 °C	PC Pins	7.5 mm	0.295 in	Through Hole	20 %	X2		275 V	Metallized Polypropylene (PP)					Radial	760 V
KEMET PHE840MD6220MD13R30L1	EMI RFI Suppression	14.5 mm	0.571 in	105 ░C	-55 °C	PC Pins	22.5 mm	0.886 in	Through Hole	20 %	X2	0.22 µF	275 V	Metallized Polypropylene (PP)	1.024 in	26 mm	0.256 in	6.5 mm	Radial	760 V
KEMET PHE840MB6100MB05R05	EMI RFI Suppression			105 ░C	-55 °C	PC Pins	15 mm	0.591 in	Through Hole	20 %	X2	100000 pF	275 V	Metallized Polypropylene (PP)	0.709 in	18 mm	0.217 in	5.5 mm	Radial	760 V	0.492 in	12.5 mm
KEMET PHE840MB6470MB16R17	EMI RFI Suppression			105 ░C	-55 °C	PC Pins	15 mm	0.591 in	Through Hole	20 %	X2	0.47 µF	275 V	Metallized Polypropylene (PP)		0.709 " 18 mm		0.433 in 11 mm	Radial	760 V	0.748 in	19 mm
KEMET PHE840MR7220MR05R06L2	EMI RFI Suppression	24 mm	0.945 in	105 ░C	-55 °C	PC Pins	37.5 mm	1.476 in	Through Hole	20 %	X2	2.2 µF	275 V	Metallized Polypropylene (PP)	1.614 "	41 mm	0.512 in	13 mm	Radial	760 V
KEMET PHE840ER7470MR03R06L2	EMI RFI Suppression	36 mm	1.417 in	105 ░C	-55 °C	PC Pins	37.5 mm	1.476 in	Through Hole	20 %	X2	4.7 µF	300 V	Metallized Polypropylene (PP)	1.614 "	41 mm	0.748 in	19 mm	Radial	760 V
