EGG.0B.304.CYM
ActiveLEMO

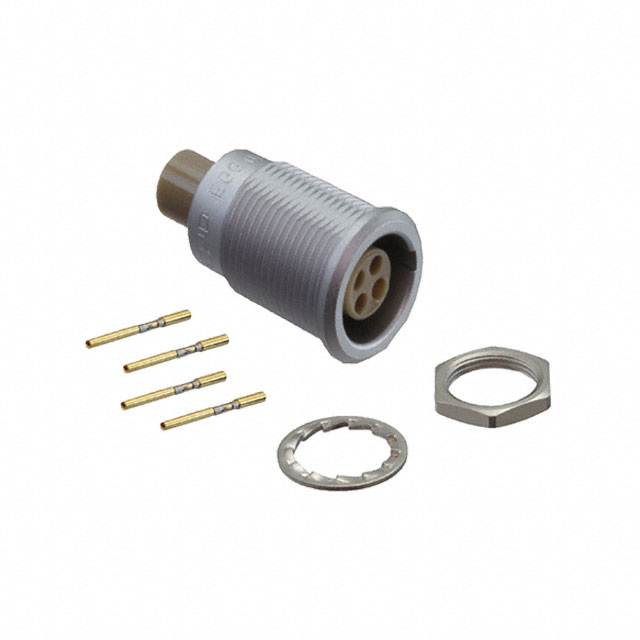

CONN RCPT FMALE 4POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EGG.0B.304.CYM
ActiveLEMO
CONN RCPT FMALE 4POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EGG.0B.304.CYM | EGG.0B Series |
|---|---|---|
| Color | Silver | Silver, Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets, Female Sockets, Insert, Receptacle Housing |
| Contact Finish | - | Gold |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 59 Áin | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám | 1.5 Ám |
| Contact Material | Bronze | Bronze |
| Contact Shape | - | Circular |
| Contact Size | - | 0.5 - 0.9 mm |
| Contact Termination | - | Crimp |
| Contact Type | - | Socket, Crimp and Solder Cup, Crimp |
| Current Rating (Amps) | 7 A | 2.5 - 10 A |
| Fastening Type | Push-Pull | Push-Pull, Detent Lock |
| Features | - | Insert Only, Requires Shell |
| Housing Color | - | Silver |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Mounting Type | - | Through Hole, Panel Mount |
| Note | - | Note: Contacts Not Included; Insert Only, Requires Shell, Contacts Not Included |
| Number of Positions | 4 | 2 - 7 |
| Operating Temperature [Max] | 250 °C | 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | G | G |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 304 | 302 - 701 |
| Shielding | Shielded | Shielded, Unshielded |
| Termination | Crimp | Crimp, Solder |
| Type | - | Signal, Machined, For Female Sockets |
| Wire Gauge or Range - AWG | - | 20 - 28 AWG |
| Wire Gauge or Range - AWG | - | 24 - 32 AWG |
| Wire Gauge or Range - mm˛ | - | 0.25 mm˛ |
| Wire Gauge or Range - mm˛ | - | 0.5 mm˛ |
| Wire Gauge or Range - mm² | - | 0.04 - 0.25 mm² |
| Wire Gauge or Range - mm² | - | 0.09 - 0.5 mm² |
EGG.0B Series
CIRCULAR PUSH PULL CONNECTORS RECP SIZE 0 4-PIN FEMALE SLDR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Current Rating (Amps) | Connector Type | Insert Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Orientation | Shell Finish | Material Flammability Rating | Number of Positions | Ingress Protection | Color | Shell Material | Mounting Feature | Shell Size - Insert | Contact Material | Primary Material | Contact Finish - Mating | Fastening Type | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Contact Termination | Contact Type | Contact Size | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Type | Contact Finish | Termination | Features | Mounting Type | Note | Contact Shape | Wire Gauge or Range - mm˛ [Min] | Wire Gauge or Range - mm˛ [Max] | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO EGG.0B.304.CLL | -55 °C | 250 °C | Shielded | 7 A | Receptacle, Female Sockets | Polyetheretherketone (PEEK) | 59 Áin | 1.5 Ám | G | Chrome | UL94 V-0 | 4 | IP50 | Silver | Brass | Bulkhead - Rear Side Nut | 304 | Bronze | Metal | Gold | Push-Pull | |||||||||||||||||
LEMO EGG.0B.655.ZZM | Bronze | 22 AWG | 26 AWG | Crimp | Socket | 0.7 mm | 0.14 mm² | 0.34 mm² | Machined, Signal | Gold | ||||||||||||||||||||||||||||
LEMO EGG.0B.305.CYM | -55 °C | 250 °C | Shielded | 6.5 A | Receptacle, Female Sockets | Polyetheretherketone (PEEK) | 59 Áin | 1.5 Ám | G | Chrome | UL94 V-0 | IP50 | Silver | Brass | Bulkhead - Rear Side Nut | 305 | Bronze | Metal | Gold | Push-Pull | Crimp | |||||||||||||||||
LEMO EGG.0B.307.ZLN | -55 °C | 250 °C | Shielded | 2.5 A | Female Sockets, Insert | Polyetheretherketone (PEEK) | 59 Áin | 1.5 Ám | G | UL94 V-0 | 7 | IP50 | 307 | Bronze | Gold | Solder | Insert Only, Requires Shell | |||||||||||||||||||||
LEMO EGG.0B.302.CLN | -55 °C | 250 °C | Shielded | 10 A | Receptacle, Female Sockets | Polyetheretherketone (PEEK) | 59 Áin | 1.5 Ám | G | Chrome | UL94 V-0 | 2 | IP50 | Silver | Brass | Bulkhead - Rear Side Nut | 302 | Bronze | Metal | Gold | Push-Pull | Solder | Panel Mount, Through Hole | |||||||||||||||
LEMO EGG.0B.656.ZZM | Bronze | 28 AWG | 32 AWG | Crimp | Socket | 0.7 mm | 0.04 mm² | 0.09 mm² | Machined, Signal | Gold | ||||||||||||||||||||||||||||
LEMO EGG.0B.305.CLL | -55 °C | 250 °C | Shielded | 6.5 A | Receptacle, Female Sockets | Polyetheretherketone (PEEK) | 59 Áin | 1.5 Ám | G | Chrome | UL94 V-0 | IP50 | Silver | Brass | Bulkhead - Rear Side Nut | 305 | Bronze | Metal | Gold | Push-Pull | ||||||||||||||||||
LEMO EGG.0B.701.CJL | -55 °C | 250 °C | Shielded | Receptacle, Female Sockets | Polyetheretherketone (PEEK) | 59 Áin | 1.5 Ám | G | Chrome | UL94 V-0 | 2 | IP50 | Silver | Brass | Bulkhead - Rear Side Nut | 701 | Bronze | Metal | Gold | Push-Pull | ||||||||||||||||||
LEMO EGG.0B.302.ZYM | -55 °C | 250 °C | Shielded | 10 A | Female Sockets, Insert | Polyetheretherketone (PEEK) | 59 Áin | 1.5 Ám | G | UL94 V-0 | 2 | IP50 | 302 | Bronze | Gold | Crimp | Insert Only, Requires Shell | |||||||||||||||||||||
LEMO EGG.0B.661.ZZM | Bronze | 22 AWG | 26 AWG | Crimp | Socket | 0.9 mm | 0.14 mm² | 0.34 mm² | Machined, Signal | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 23.92 | |
| 10 | $ 20.94 | |||
| 25 | $ 20.04 | |||
| 50 | $ 19.39 | |||
| 100 | $ 18.75 | |||
| 250 | $ 17.71 | |||
| 500 | $ 17.19 | |||
Description
General part information
EGG.0B Series
4 Position Circular Connector Receptacle, Female Sockets Crimp
Documents
Technical documentation and resources
