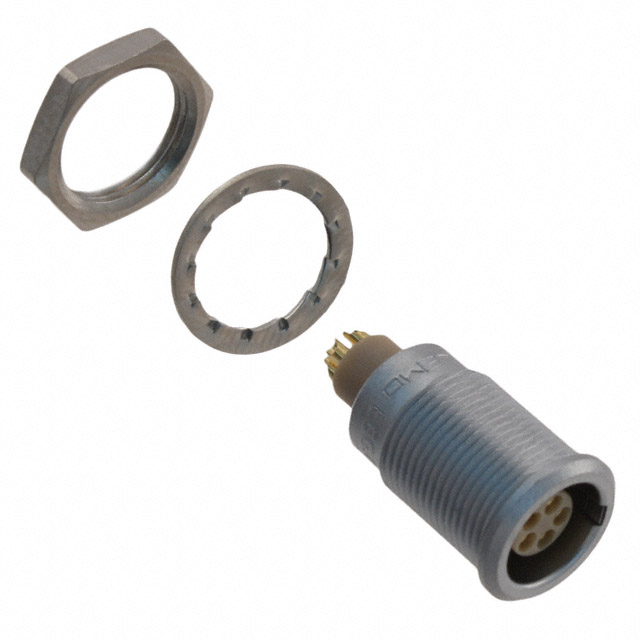

EGG.0B.305.CLL

Active

LEMO

CONN RCPT FMALE 5P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Unipole, Multipole Catalog

EGG.0B.305.CLL

Active

LEMO

CONN RCPT FMALE 5P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet Unipole, Multipole Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EGG.0B.305.CLL	EGG.0B Series

Color	Silver	Silver, Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets, Female Sockets, Insert, Receptacle Housing
Contact Finish	-	Gold
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Contact Shape	-	Circular
Contact Size	-	0.5 - 0.9 mm
Contact Termination	-	Crimp
Contact Type	-	Socket, Crimp and Solder Cup, Crimp
Current Rating (Amps)	6.5 A	2.5 - 10 A
Fastening Type	Push-Pull	Push-Pull, Detent Lock
Features	-	Insert Only, Requires Shell
Housing Color	-	Silver
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Mounting Type	-	Through Hole, Panel Mount
Note	-	Note: Contacts Not Included; Insert Only, Requires Shell, Contacts Not Included
Number of Positions	-	2 - 7
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	305	302 - 701
Shielding	Shielded	Shielded, Unshielded
Termination	-	Crimp, Solder
Type	-	Signal, Machined, For Female Sockets
Wire Gauge or Range - AWG	-	20 - 28 AWG
Wire Gauge or Range - AWG	-	24 - 32 AWG
Wire Gauge or Range - mm˛	-	0.25 mm˛
Wire Gauge or Range - mm˛	-	0.5 mm˛
Wire Gauge or Range - mm²	-	0.04 - 0.25 mm²
Wire Gauge or Range - mm²	-	0.09 - 0.5 mm²

EGG.0B Series

CIRCULAR PUSH PULL CONNECTORS RECP SIZE 0 4-PIN FEMALE SLDR

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Current Rating (Amps)	Connector Type	Insert Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Orientation	Shell Finish	Material Flammability Rating	Number of Positions	Ingress Protection	Color	Shell Material	Mounting Feature	Shell Size - Insert	Contact Material	Primary Material	Contact Finish - Mating	Fastening Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Contact Termination	Contact Type	Contact Size	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Type	Contact Finish	Termination	Features	Mounting Type
LEMO EGG.0B.304.CLL	-55 °C	250 °C	Shielded	7 A	Receptacle, Female Sockets	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	G	Chrome	UL94 V-0	4	IP50	Silver	Brass	Bulkhead - Rear Side Nut	304	Bronze	Metal	Gold	Push-Pull
LEMO EGG.0B.655.ZZM																		Bronze				22 AWG	26 AWG	Crimp	Socket	0.7 mm	0.14 mm²	0.34 mm²	Machined, Signal	Gold
LEMO EGG.0B.305.CYM	-55 °C	250 °C	Shielded	6.5 A	Receptacle, Female Sockets	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	G	Chrome	UL94 V-0		IP50	Silver	Brass	Bulkhead - Rear Side Nut	305	Bronze	Metal	Gold	Push-Pull										Crimp
LEMO EGG.0B.307.ZLN	-55 °C	250 °C	Shielded	2.5 A	Female Sockets, Insert	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	G		UL94 V-0	7	IP50				307	Bronze		Gold											Solder	Insert Only, Requires Shell
LEMO EGG.0B.302.CLN	-55 °C	250 °C	Shielded	10 A	Receptacle, Female Sockets	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	G	Chrome	UL94 V-0	2	IP50	Silver	Brass	Bulkhead - Rear Side Nut	302	Bronze	Metal	Gold	Push-Pull										Solder		Panel Mount, Through Hole
LEMO EGG.0B.656.ZZM																		Bronze				28 AWG	32 AWG	Crimp	Socket	0.7 mm	0.04 mm²	0.09 mm²	Machined, Signal	Gold
LEMO EGG.0B.305.CLL	-55 °C	250 °C	Shielded	6.5 A	Receptacle, Female Sockets	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	G	Chrome	UL94 V-0		IP50	Silver	Brass	Bulkhead - Rear Side Nut	305	Bronze	Metal	Gold	Push-Pull
LEMO EGG.0B.701.CJL	-55 °C	250 °C	Shielded		Receptacle, Female Sockets	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	G	Chrome	UL94 V-0	2	IP50	Silver	Brass	Bulkhead - Rear Side Nut	701	Bronze	Metal	Gold	Push-Pull
LEMO EGG.0B.302.ZYM	-55 °C	250 °C	Shielded	10 A	Female Sockets, Insert	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	G		UL94 V-0	2	IP50				302	Bronze		Gold											Crimp	Insert Only, Requires Shell
LEMO EGG.0B.661.ZZM																		Bronze				22 AWG	26 AWG	Crimp	Socket	0.9 mm	0.14 mm²	0.34 mm²	Machined, Signal	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.71
		10	$ 22.51
		25	$ 21.54
		50	$ 20.85
		100	$ 20.15
		250	$ 19.04
		500	$ 18.48

Description

General part information

EGG.0B Series

5 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Unipole, Multipole Catalog

Datasheet
