EGG.0B.304.CLL

Active

LEMO

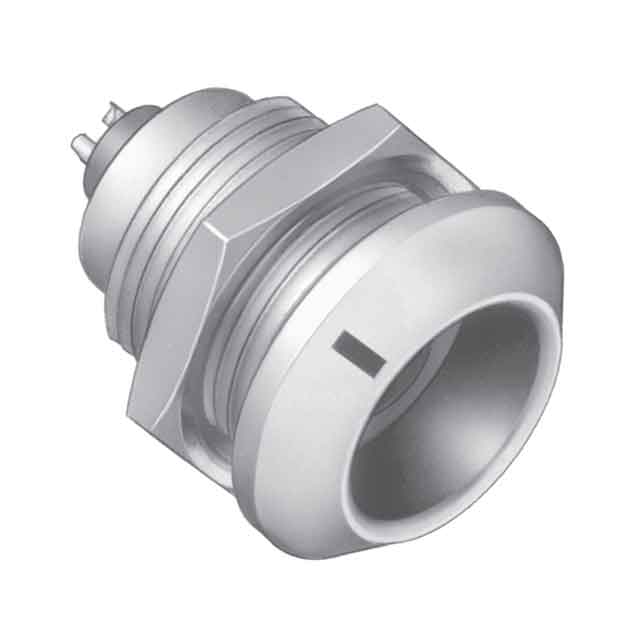

CIRCULAR PUSH PULL CONNECTORS RECP SIZE 0 4-PIN FEMALE SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Unipole, Multipole Catalog +1

EGG.0B.304.CLL

Active

LEMO

CIRCULAR PUSH PULL CONNECTORS RECP SIZE 0 4-PIN FEMALE SLDR

Deep-Dive with AI

DocumentsDatasheet Unipole, Multipole Catalog +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.13
		1	$ 31.53
		10	$ 24.34
		10	$ 17.49
		25	$ 22.06
		25	$ 16.35
		50	$ 20.51
		50	$ 15.34
		100	$ 19.12
		100	$ 14.45
		250	$ 17.47
		500	$ 16.36
Sager	N/A	1	$ 20.39
		10	$ 19.37
		25	$ 18.11
		100	$ 16.78
		250	$ 16.04
		500	$ 13.84

Description

General part information

EGG.0B Series

4 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Unipole, Multipole Catalog

Datasheet

Document

Specification	EGG.0B.304.CLL	EGG.0B Series

Color	Silver	Silver, Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets, Female Sockets, Insert, Receptacle Housing
Contact Finish	-	Gold
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Contact Shape	-	Circular
Contact Size	-	0.5 - 0.9 mm
Contact Termination	-	Crimp
Contact Type	-	Socket, Crimp and Solder Cup, Crimp
Current Rating (Amps)	7 A	2.5 - 10 A
Fastening Type	Push-Pull	Push-Pull, Detent Lock
Features	-	Insert Only, Requires Shell
Housing Color	-	Silver
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Mounting Type	-	Through Hole, Panel Mount
Note	-	Note: Contacts Not Included; Insert Only, Requires Shell, Contacts Not Included
Number of Positions	4	2 - 7
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	304	302 - 701
Shielding	Shielded	Shielded, Unshielded
Termination	-	Crimp, Solder
Type	-	Signal, Machined, For Female Sockets
Wire Gauge or Range - AWG	-	20 - 28 AWG
Wire Gauge or Range - AWG	-	24 - 32 AWG
Wire Gauge or Range - mm˛	-	0.25 mm˛
Wire Gauge or Range - mm˛	-	0.5 mm˛
Wire Gauge or Range - mm²	-	0.04 - 0.25 mm²
Wire Gauge or Range - mm²	-	0.09 - 0.5 mm²

Part

Operating Temperature [Min]

Operating Temperature [Max]

Shielding

Current Rating (Amps)

Connector Type

Insert Material

Contact Finish Thickness - Mating

Orientation

Shell Finish

Material Flammability Rating

Number of Positions

Ingress Protection

Color

Shell Material

Mounting Feature

Shell Size - Insert

Contact Material

Primary Material

Contact Finish - Mating

Fastening Type

Wire Gauge or Range - AWG [Min]

Wire Gauge or Range - AWG [Max]

Contact Termination

Contact Type

Contact Size

Wire Gauge or Range - mm² [Min]

Wire Gauge or Range - mm² [Max]

Type

Contact Finish

Termination

Features

Mounting Type

Note

Contact Shape

Wire Gauge or Range - mm˛ [Min]

Wire Gauge or Range - mm˛ [Max]

Housing Color

LEMO

EGG.0B.304.CLL

-55 °C

250 °C

Shielded

7 A

Receptacle, Female Sockets

Polyetheretherketone (PEEK)

59 Áin

1.5 Ám

Chrome

UL94 V-0

IP50

Silver

Brass

Bulkhead - Rear Side Nut

304

Bronze

Metal

Gold

Push-Pull

LEMO

EGG.0B.655.ZZM

Bronze

22 AWG

26 AWG

Crimp

Socket

0.7 mm

0.14 mm²

0.34 mm²

Machined, Signal

Gold

LEMO

EGG.0B.305.CYM

-55 °C

250 °C

Shielded

6.5 A

Receptacle, Female Sockets

Polyetheretherketone (PEEK)

59 Áin

1.5 Ám

Chrome

UL94 V-0

IP50

Silver

Brass

Bulkhead - Rear Side Nut

305

Bronze

Metal

Gold

Push-Pull

Crimp

LEMO

EGG.0B.307.ZLN

-55 °C

250 °C

Shielded

2.5 A

Female Sockets, Insert

Polyetheretherketone (PEEK)

59 Áin

1.5 Ám

UL94 V-0

IP50

307

Bronze

Gold

Solder

Insert Only, Requires Shell

LEMO

EGG.0B.302.CLN

-55 °C

250 °C

Shielded

10 A

Receptacle, Female Sockets

Polyetheretherketone (PEEK)

59 Áin

1.5 Ám

Chrome

UL94 V-0

IP50

Silver

Brass

Bulkhead - Rear Side Nut

302

Bronze

Metal

Gold

Push-Pull

Solder

Panel Mount, Through Hole

LEMO

EGG.0B.656.ZZM

Bronze

28 AWG

32 AWG

Crimp

Socket

0.7 mm

0.04 mm²

0.09 mm²

Machined, Signal

Gold

LEMO

EGG.0B.305.CLL

-55 °C

250 °C

Shielded

6.5 A

Receptacle, Female Sockets

Polyetheretherketone (PEEK)

59 Áin

1.5 Ám

Chrome

UL94 V-0

IP50

Silver

Brass

Bulkhead - Rear Side Nut

305

Bronze

Metal

Gold

Push-Pull

LEMO

EGG.0B.701.CJL

-55 °C

250 °C

Shielded

Receptacle, Female Sockets

Polyetheretherketone (PEEK)

59 Áin

1.5 Ám

Chrome

UL94 V-0

IP50

Silver

Brass

Bulkhead - Rear Side Nut

701

Bronze

Metal

Gold

Push-Pull

LEMO

EGG.0B.302.ZYM

-55 °C

250 °C

Shielded

10 A

Female Sockets, Insert

Polyetheretherketone (PEEK)

59 Áin

1.5 Ám

UL94 V-0

IP50

302

Bronze

Gold

Crimp

Insert Only, Requires Shell

LEMO

EGG.0B.661.ZZM

Bronze

22 AWG

26 AWG

Crimp

Socket

0.9 mm

0.14 mm²

0.34 mm²

Machined, Signal

Gold

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Current Rating (Amps)	Connector Type	Insert Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Orientation	Shell Finish	Material Flammability Rating	Number of Positions	Ingress Protection	Color	Shell Material	Mounting Feature	Shell Size - Insert	Contact Material	Primary Material	Contact Finish - Mating	Fastening Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Contact Termination	Contact Type	Contact Size	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Type	Contact Finish	Termination	Features	Mounting Type
LEMO EGG.0B.304.CLL	-55 °C	250 °C	Shielded	7 A	Receptacle, Female Sockets	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	G	Chrome	UL94 V-0	4	IP50	Silver	Brass	Bulkhead - Rear Side Nut	304	Bronze	Metal	Gold	Push-Pull
LEMO EGG.0B.655.ZZM																		Bronze				22 AWG	26 AWG	Crimp	Socket	0.7 mm	0.14 mm²	0.34 mm²	Machined, Signal	Gold
LEMO EGG.0B.305.CYM	-55 °C	250 °C	Shielded	6.5 A	Receptacle, Female Sockets	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	G	Chrome	UL94 V-0		IP50	Silver	Brass	Bulkhead - Rear Side Nut	305	Bronze	Metal	Gold	Push-Pull										Crimp
LEMO EGG.0B.307.ZLN	-55 °C	250 °C	Shielded	2.5 A	Female Sockets, Insert	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	G		UL94 V-0	7	IP50				307	Bronze		Gold											Solder	Insert Only, Requires Shell
LEMO EGG.0B.302.CLN	-55 °C	250 °C	Shielded	10 A	Receptacle, Female Sockets	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	G	Chrome	UL94 V-0	2	IP50	Silver	Brass	Bulkhead - Rear Side Nut	302	Bronze	Metal	Gold	Push-Pull										Solder		Panel Mount, Through Hole
LEMO EGG.0B.656.ZZM																		Bronze				28 AWG	32 AWG	Crimp	Socket	0.7 mm	0.04 mm²	0.09 mm²	Machined, Signal	Gold
LEMO EGG.0B.305.CLL	-55 °C	250 °C	Shielded	6.5 A	Receptacle, Female Sockets	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	G	Chrome	UL94 V-0		IP50	Silver	Brass	Bulkhead - Rear Side Nut	305	Bronze	Metal	Gold	Push-Pull
LEMO EGG.0B.701.CJL	-55 °C	250 °C	Shielded		Receptacle, Female Sockets	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	G	Chrome	UL94 V-0	2	IP50	Silver	Brass	Bulkhead - Rear Side Nut	701	Bronze	Metal	Gold	Push-Pull
LEMO EGG.0B.302.ZYM	-55 °C	250 °C	Shielded	10 A	Female Sockets, Insert	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	G		UL94 V-0	2	IP50				302	Bronze		Gold											Crimp	Insert Only, Requires Shell
LEMO EGG.0B.661.ZZM																		Bronze				22 AWG	26 AWG	Crimp	Socket	0.9 mm	0.14 mm²	0.34 mm²	Machined, Signal	Gold
