EGG.0B.661.ZZM

Active

LEMO

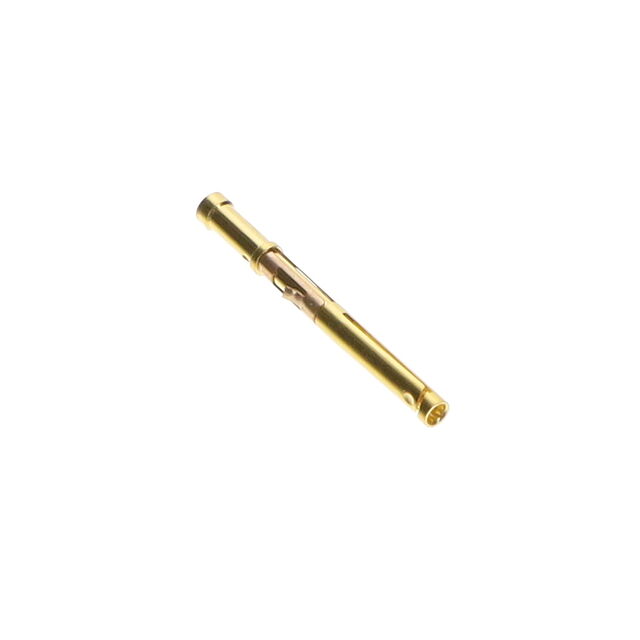

CONTACT SOCKET 22-26AWG CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EGG.0B.661.ZZM

Active

LEMO

CONTACT SOCKET 22-26AWG CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.01
		10	$ 3.83
		25	$ 3.45
		50	$ 3.20
		100	$ 2.97
		250	$ 2.69
		500	$ 2.51
		1000	$ 2.34
		2500	$ 2.14

Description

General part information

EGG.0B Series

Socket Contact 22-26 AWG Size 0.9mm Crimp Gold

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EGG.0B.661.ZZM	EGG.0B Series

Color	-	Silver, Black
Connector Type	-	Receptacle, Female Sockets, Female Sockets, Insert, Receptacle Housing
Contact Finish	Gold	Gold
Contact Finish - Mating	-	Gold
Contact Finish Thickness - Mating	-	59 Áin
Contact Finish Thickness - Mating	-	1.5 Ám
Contact Material	Bronze	Bronze
Contact Shape	-	Circular
Contact Size	0.9 mm	0.5 - 0.9 mm
Contact Termination	Crimp	Crimp
Contact Type	Socket	Socket, Crimp and Solder Cup, Crimp
Current Rating (Amps)	-	2.5 - 10 A
Fastening Type	-	Push-Pull, Detent Lock
Features	-	Insert Only, Requires Shell
Housing Color	-	Silver
Ingress Protection	-	IP50
Insert Material	-	Polyetheretherketone (PEEK)
Material Flammability Rating	-	UL94 V-0
Mounting Feature	-	Bulkhead - Rear Side Nut
Mounting Type	-	Through Hole, Panel Mount
Note	-	Note: Contacts Not Included; Insert Only, Requires Shell, Contacts Not Included
Number of Positions	-	2 - 7
Operating Temperature	-	-55 °C
Operating Temperature	-	250 °C
Orientation	-	G
Primary Material	-	Metal
Shell Finish	-	Chrome
Shell Material	-	Brass
Shell Size - Insert	-	302 - 701
Shielding	-	Shielded, Unshielded
Termination	-	Crimp, Solder
Type	Signal, Machined	Signal, Machined, For Female Sockets
Wire Gauge or Range - AWG [Max]	26 AWG	24 - 32 AWG
Wire Gauge or Range - AWG [Min]	22 AWG	20 - 28 AWG
Wire Gauge or Range - mm˛	-	0.25 mm˛
Wire Gauge or Range - mm˛	-	0.5 mm˛
Wire Gauge or Range - mm² [Max]	0.34 mm²	0.09 - 0.5 mm²
Wire Gauge or Range - mm² [Min]	0.14 mm²	0.04 - 0.25 mm²

EGG.0B Series

CIRCULAR PUSH PULL CONNECTORS RECP SIZE 0 4-PIN FEMALE SLDR

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Current Rating (Amps)	Connector Type	Insert Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Orientation	Shell Finish	Material Flammability Rating	Number of Positions	Ingress Protection	Color	Shell Material	Mounting Feature	Shell Size - Insert	Contact Material	Primary Material	Contact Finish - Mating	Fastening Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Contact Termination	Contact Type	Contact Size	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Type	Contact Finish	Termination	Features	Mounting Type
LEMO EGG.0B.304.CLL	-55 °C	250 °C	Shielded	7 A	Receptacle, Female Sockets	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	G	Chrome	UL94 V-0	4	IP50	Silver	Brass	Bulkhead - Rear Side Nut	304	Bronze	Metal	Gold	Push-Pull
LEMO EGG.0B.655.ZZM																		Bronze				22 AWG	26 AWG	Crimp	Socket	0.7 mm	0.14 mm²	0.34 mm²	Machined, Signal	Gold
LEMO EGG.0B.305.CYM	-55 °C	250 °C	Shielded	6.5 A	Receptacle, Female Sockets	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	G	Chrome	UL94 V-0		IP50	Silver	Brass	Bulkhead - Rear Side Nut	305	Bronze	Metal	Gold	Push-Pull										Crimp
LEMO EGG.0B.307.ZLN	-55 °C	250 °C	Shielded	2.5 A	Female Sockets, Insert	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	G		UL94 V-0	7	IP50				307	Bronze		Gold											Solder	Insert Only, Requires Shell
LEMO EGG.0B.302.CLN	-55 °C	250 °C	Shielded	10 A	Receptacle, Female Sockets	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	G	Chrome	UL94 V-0	2	IP50	Silver	Brass	Bulkhead - Rear Side Nut	302	Bronze	Metal	Gold	Push-Pull										Solder		Panel Mount, Through Hole
LEMO EGG.0B.656.ZZM																		Bronze				28 AWG	32 AWG	Crimp	Socket	0.7 mm	0.04 mm²	0.09 mm²	Machined, Signal	Gold
LEMO EGG.0B.305.CLL	-55 °C	250 °C	Shielded	6.5 A	Receptacle, Female Sockets	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	G	Chrome	UL94 V-0		IP50	Silver	Brass	Bulkhead - Rear Side Nut	305	Bronze	Metal	Gold	Push-Pull
LEMO EGG.0B.701.CJL	-55 °C	250 °C	Shielded		Receptacle, Female Sockets	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	G	Chrome	UL94 V-0	2	IP50	Silver	Brass	Bulkhead - Rear Side Nut	701	Bronze	Metal	Gold	Push-Pull
LEMO EGG.0B.302.ZYM	-55 °C	250 °C	Shielded	10 A	Female Sockets, Insert	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	G		UL94 V-0	2	IP50				302	Bronze		Gold											Crimp	Insert Only, Requires Shell
LEMO EGG.0B.661.ZZM																		Bronze				22 AWG	26 AWG	Crimp	Socket	0.9 mm	0.14 mm²	0.34 mm²	Machined, Signal	Gold
