M50-3132045

Active

Harwin Inc.

CONN, RCPT, 20POS, 1ROW, 1.27MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet M50-3000345 +2

M50-3132045

Active

Harwin Inc.

CONN, RCPT, 20POS, 1ROW, 1.27MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet M50-3000345 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M50-3132045

Applications	General Purpose, Medical, Telecommunications
Connector Type	Receptacle, Bottom or Top Entry
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	12 µin
Contact Finish Thickness - Mating	0.3 µm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.079 in
Insulation Height	2 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Mated Stacking Heights	3.8 mm, 3.6 mm, 3.1 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Termination	Solder
Voltage Rating	500 VAC

M50-313 Series

Part	Contact Material	Number of Rows	Features	Number of Positions Loaded	Contact Finish - Mating	Mounting Type	Number of Positions	Mated Stacking Heights	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Connector Type	Insulation Color	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Voltage Rating	Fastening Type	Termination	Insulation Material	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Material Flammability Rating
Harwin Inc. M50-3130845R	Phosphor Bronze	1	Pick and Place	All	Gold	Surface Mount	8	3.1 mm 3.6 mm 3.8 mm	Female Socket	-40 °C	105 ░C	Square	Receptacle Bottom or Top Entry	Black	Gold	12 µin	0.3 µm	General Purpose Medical Telecommunications	500 VAC	Push-Pull	Solder	Nylon 6T Polyamide (PA6T)	0.05 in	1.27 mm	0.079 in	2 mm	UL94 V-0
Harwin Inc. M50-3130345	Phosphor Bronze	1		All	Gold	Surface Mount		3.1 mm 3.6 mm 3.8 mm	Female Socket	-40 °C	105 ░C	Square	Receptacle Bottom or Top Entry	Black	Gold	12 µin	0.3 µm	General Purpose Medical Telecommunications	500 VAC	Push-Pull	Solder	Nylon 6T Polyamide (PA6T)	0.05 in	1.27 mm	0.079 in	2 mm	UL94 V-0
Harwin Inc. M50-3130445	Phosphor Bronze	1		All	Gold	Surface Mount	4	3.1 mm 3.6 mm 3.8 mm	Female Socket	-40 °C	105 ░C	Square	Receptacle Bottom or Top Entry	Black	Gold	12 µin	0.3 µm	General Purpose Medical Telecommunications	500 VAC	Push-Pull	Solder	Nylon 6T Polyamide (PA6T)	0.05 in	1.27 mm	0.079 in	2 mm	UL94 V-0
Harwin Inc. M50-3130645	Phosphor Bronze	1		All	Gold	Surface Mount	6	3.1 mm 3.6 mm 3.8 mm	Female Socket	-40 °C	105 ░C	Square	Receptacle Bottom or Top Entry	Black	Gold	12 µin	0.3 µm	General Purpose Medical Telecommunications	500 VAC	Push-Pull	Solder	Nylon 6T Polyamide (PA6T)	0.05 in	1.27 mm	0.079 in	2 mm	UL94 V-0
Harwin Inc. M50-3130545	Phosphor Bronze	1		All	Gold	Surface Mount		3.1 mm 3.6 mm 3.8 mm	Female Socket	-40 °C	105 ░C	Square	Receptacle Bottom or Top Entry	Black	Gold	12 µin	0.3 µm	General Purpose Medical Telecommunications	500 VAC	Push-Pull	Solder	Nylon 6T Polyamide (PA6T)	0.05 in	1.27 mm	0.079 in	2 mm	UL94 V-0
Harwin Inc. M50-3130345R	Phosphor Bronze	1	Pick and Place	All	Gold	Surface Mount		3.1 mm 3.6 mm 3.8 mm	Female Socket	-40 °C	105 ░C	Square	Receptacle Bottom or Top Entry	Black	Gold	12 µin	0.3 µm	General Purpose Medical Telecommunications	500 VAC	Push-Pull	Solder	Nylon 6T Polyamide (PA6T)	0.05 in	1.27 mm	0.079 in	2 mm	UL94 V-0
Harwin Inc. M50-3132045	Phosphor Bronze	1		All	Gold	Surface Mount	20	3.1 mm 3.6 mm 3.8 mm	Female Socket	-40 °C	105 ░C	Square	Receptacle Bottom or Top Entry	Black	Gold	12 µin	0.3 µm	General Purpose Medical Telecommunications	500 VAC	Push-Pull	Solder	Nylon 6T Polyamide (PA6T)	0.05 in	1.27 mm	0.079 in	2 mm	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 3.03
		22	$ 2.75
		110	$ 2.42
		506	$ 2.06
		1012	$ 1.76
		5016	$ 1.57
Newark	Each	10	$ 2.53
		50	$ 2.18
		100	$ 2.02
		250	$ 1.86
		500	$ 1.75
		1000	$ 1.65
		2500	$ 1.55

Description

General part information

M50-313 Series

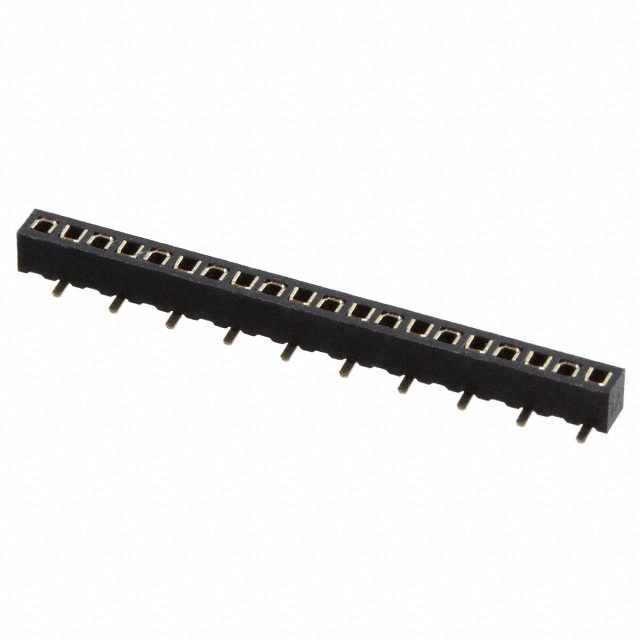

20 Position Receptacle, Bottom or Top Entry Connector 0.050" (1.27mm) Surface Mount Gold
