M50-3130845R

Active

Harwin Inc.

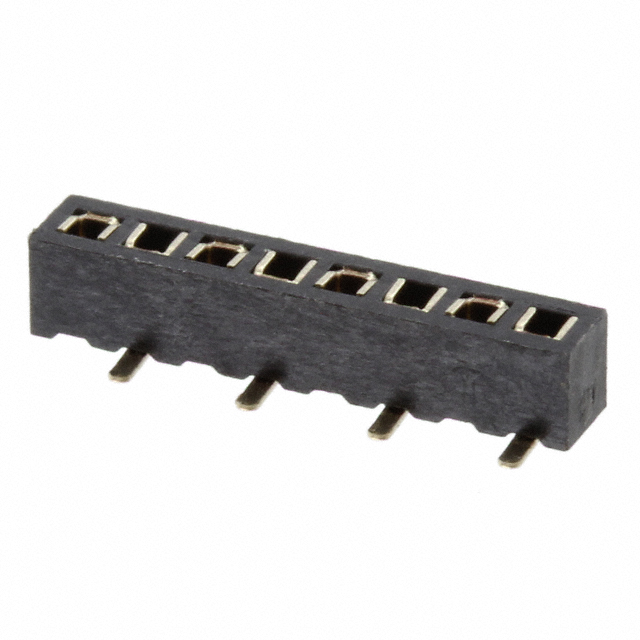

8 POS. FEMALE SIL VERTICAL SMT CONN. (T+R) ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM50-3000345 M50,M52 Series Spec Sheet +2

M50-3130845R

Active

Harwin Inc.

8 POS. FEMALE SIL VERTICAL SMT CONN. (T+R) ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM50-3000345 M50,M52 Series Spec Sheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M50-3130845R

Applications	General Purpose, Medical, Telecommunications
Connector Type	Receptacle, Bottom or Top Entry
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	12 µin
Contact Finish Thickness - Mating	0.3 µm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	0.079 in
Insulation Height	2 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Mated Stacking Heights	3.8 mm, 3.6 mm, 3.1 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Termination	Solder
Voltage Rating	500 VAC

M50-313 Series

Part	Contact Material	Number of Rows	Features	Number of Positions Loaded	Contact Finish - Mating	Mounting Type	Number of Positions	Mated Stacking Heights	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Connector Type	Insulation Color	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Voltage Rating	Fastening Type	Termination	Insulation Material	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Material Flammability Rating
Harwin Inc. M50-3130845R	Phosphor Bronze	1	Pick and Place	All	Gold	Surface Mount	8	3.1 mm 3.6 mm 3.8 mm	Female Socket	-40 °C	105 ░C	Square	Receptacle Bottom or Top Entry	Black	Gold	12 µin	0.3 µm	General Purpose Medical Telecommunications	500 VAC	Push-Pull	Solder	Nylon 6T Polyamide (PA6T)	0.05 in	1.27 mm	0.079 in	2 mm	UL94 V-0
Harwin Inc. M50-3130345	Phosphor Bronze	1		All	Gold	Surface Mount		3.1 mm 3.6 mm 3.8 mm	Female Socket	-40 °C	105 ░C	Square	Receptacle Bottom or Top Entry	Black	Gold	12 µin	0.3 µm	General Purpose Medical Telecommunications	500 VAC	Push-Pull	Solder	Nylon 6T Polyamide (PA6T)	0.05 in	1.27 mm	0.079 in	2 mm	UL94 V-0
Harwin Inc. M50-3130445	Phosphor Bronze	1		All	Gold	Surface Mount	4	3.1 mm 3.6 mm 3.8 mm	Female Socket	-40 °C	105 ░C	Square	Receptacle Bottom or Top Entry	Black	Gold	12 µin	0.3 µm	General Purpose Medical Telecommunications	500 VAC	Push-Pull	Solder	Nylon 6T Polyamide (PA6T)	0.05 in	1.27 mm	0.079 in	2 mm	UL94 V-0
Harwin Inc. M50-3130645	Phosphor Bronze	1		All	Gold	Surface Mount	6	3.1 mm 3.6 mm 3.8 mm	Female Socket	-40 °C	105 ░C	Square	Receptacle Bottom or Top Entry	Black	Gold	12 µin	0.3 µm	General Purpose Medical Telecommunications	500 VAC	Push-Pull	Solder	Nylon 6T Polyamide (PA6T)	0.05 in	1.27 mm	0.079 in	2 mm	UL94 V-0
Harwin Inc. M50-3130545	Phosphor Bronze	1		All	Gold	Surface Mount		3.1 mm 3.6 mm 3.8 mm	Female Socket	-40 °C	105 ░C	Square	Receptacle Bottom or Top Entry	Black	Gold	12 µin	0.3 µm	General Purpose Medical Telecommunications	500 VAC	Push-Pull	Solder	Nylon 6T Polyamide (PA6T)	0.05 in	1.27 mm	0.079 in	2 mm	UL94 V-0
Harwin Inc. M50-3130345R	Phosphor Bronze	1	Pick and Place	All	Gold	Surface Mount		3.1 mm 3.6 mm 3.8 mm	Female Socket	-40 °C	105 ░C	Square	Receptacle Bottom or Top Entry	Black	Gold	12 µin	0.3 µm	General Purpose Medical Telecommunications	500 VAC	Push-Pull	Solder	Nylon 6T Polyamide (PA6T)	0.05 in	1.27 mm	0.079 in	2 mm	UL94 V-0
Harwin Inc. M50-3132045	Phosphor Bronze	1		All	Gold	Surface Mount	20	3.1 mm 3.6 mm 3.8 mm	Female Socket	-40 °C	105 ░C	Square	Receptacle Bottom or Top Entry	Black	Gold	12 µin	0.3 µm	General Purpose Medical Telecommunications	500 VAC	Push-Pull	Solder	Nylon 6T Polyamide (PA6T)	0.05 in	1.27 mm	0.079 in	2 mm	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.60
		10	$ 1.40
		100	$ 1.25
		500	$ 1.04
		1000	$ 0.89
	Digi-Reel®	1	$ 1.60
		10	$ 1.40
		100	$ 1.25
		500	$ 1.04
		1000	$ 0.89
	Tape & Reel (TR)	2000	$ 0.86
		4000	$ 0.83
		6000	$ 0.79
		10000	$ 0.77
Newark	Each (Supplied on Full Reel)	2000	$ 0.94
		4000	$ 0.90

Description

General part information

M50-313 Series

8 Position Receptacle, Bottom or Top Entry Connector 0.050" (1.27mm) Surface Mount Gold
