M50-3130645
ActiveHarwin Inc.

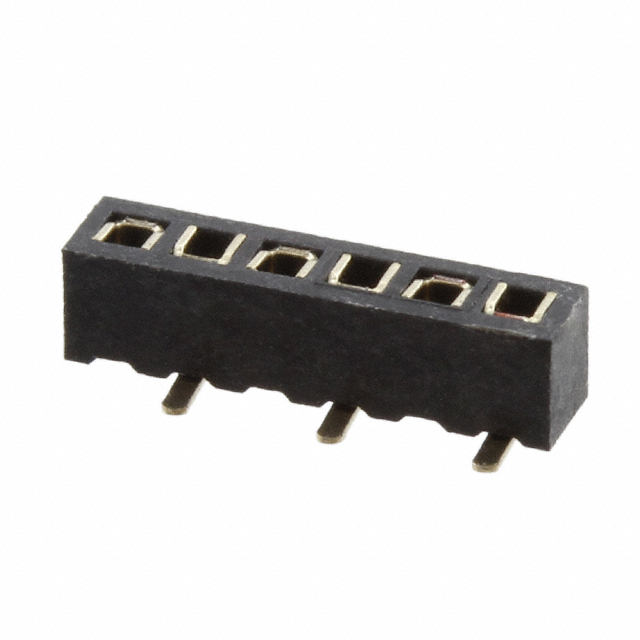

CONN RCPT 6POS 0.05 GOLD SMD
Deep-Dive with AI
Search across all available documentation for this part.
M50-3130645
ActiveHarwin Inc.
CONN RCPT 6POS 0.05 GOLD SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M50-3130645 |
|---|---|
| Applications | General Purpose, Medical, Telecommunications |
| Connector Type | Receptacle, Bottom or Top Entry |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 12 µin |
| Contact Finish Thickness - Mating | 0.3 µm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.079 in |
| Insulation Height | 2 mm |
| Insulation Material | Nylon 6T, Polyamide (PA6T) |
| Mated Stacking Heights | 3.8 mm, 3.6 mm, 3.1 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Termination | Solder |
| Voltage Rating | 500 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.08 | |
| 72 | $ 0.86 | |||
| 144 | $ 0.82 | |||
| 504 | $ 0.67 | |||
| 1008 | $ 0.60 | |||
| 5040 | $ 0.52 | |||
| 10008 | $ 0.50 | |||
Description
General part information
M50-313 Series
6 Position Receptacle, Bottom or Top Entry Connector 0.050" (1.27mm) Surface Mount Gold
