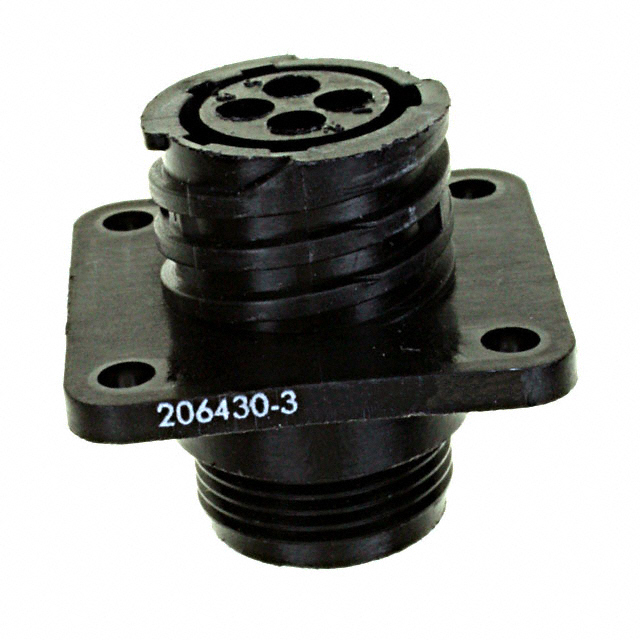

206430-3
ActiveTE Connectivity Raychem Cable Protection
CPC RECPT ASSEMBLY SIZE 11-4
Deep-Dive with AI
Search across all available documentation for this part.
206430-3
ActiveTE Connectivity Raychem Cable Protection
CPC RECPT ASSEMBLY SIZE 11-4
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 206430-3 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp |
| Housing Color | Black |
| Ingress Protection | Environment Resistant |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Orientation | A |
| Shell Size - Insert | 11-4 |
| Shielding | Unshielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.30 | |
| 10 | $ 5.22 | |||
| 25 | $ 4.84 | |||
| 50 | $ 4.58 | |||
| 100 | $ 4.33 | |||
| 250 | $ 4.02 | |||
| 500 | $ 3.80 | |||
| 1000 | $ 3.59 | |||
| 2500 | $ 3.35 | |||
Description
General part information
AMP Circular Plastic Connectors Series
Standard Circular Connector SLD CPC RCPT ASSY 17-16 STD SX
