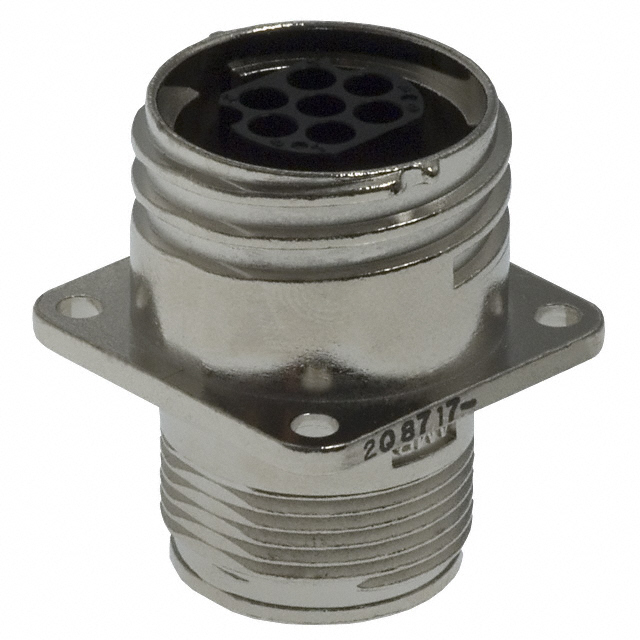

208717-1

Active

TE Connectivity Raychem Cable Protection

METAL SHELL CIRCULAR PLASTIC CONNECTORS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet CIRCULAR PLASTIC CONNECTOR REPORT +6

208717-1

Active

TE Connectivity Raychem Cable Protection

METAL SHELL CIRCULAR PLASTIC CONNECTORS

Deep-Dive with AI

DocumentsDatasheet CIRCULAR PLASTIC CONNECTOR REPORT +6

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	208717-1

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Housing Color	Silver
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	7
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc
Shell Size - Insert [Max]	14
Shell Size - Insert [Min]	7
Shielding	Shielded
Type	For Female Sockets

AMP Circular Plastic Connectors Series

Standard Circular Connector SLD CPC RCPT ASSY 17-16 STD SX

...

Part	Type	Mounting Feature	Shell Size - Insert	Contact Shape	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Insert Material	Material Flammability Rating	Contact Type	Note	Shell Material	Orientation	Contact Size	Shielding	Number of Positions	Features	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Mounting Type	Ingress Protection	Shell Finish	Pin or Socket	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [Min]	Wire Gauge [Max]	Contact Termination	Contact Material	Contact Finish	For Use With/Related Products	Cable Exit	Cable Opening [custom]	Cable Opening [custom]	Material	Thread Size	Color	Shell Size - Insert	Includes	Diameter - Outside [diameter]	Diameter - Outside [diameter]
TE Connectivity Raychem Cable Protection 206433-3	For Female Sockets	Flange	11-8	Circular	Receptacle Housing	105 ░C	-55 °C	Black	Thermoplastic	UL94 V-0	Crimp	Contacts Not Included	Polyamide (PA66) Nylon 6/6 Glass Filled	Keyed	20	Unshielded	8
TE Connectivity Raychem Cable Protection 206837-2	For Female Sockets			Circular	Plug Housing	105 ░C	-55 °C	Black		UL94 V-0	Crimp	Contacts Not Included	Polyamide (PA6) Nylon 6 Glass Filled	A	16	Unshielded	24	Coupling Nut	24	23	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 211825-1	For Male Pins	Flange	23-13M	Circular Rectangular	Receptacle Housing	105 ░C	-55 °C	Black	Thermoplastic	UL94 V-0	Crimp	Contacts Not Included		Keyed		Unshielded	13
TE Connectivity Raychem Cable Protection 206430-3	For Female Sockets	Flange	11-4	Circular	Receptacle Housing	105 ░C	-55 °C	Black	Thermoplastic	UL94 V-0	Crimp	Contacts Not Included		A	16	Unshielded	4					Environment Resistant
TE Connectivity Raychem Cable Protection 211767-2	For Male Pins	Flange	17-9	Circular	Receptacle Housing	105 ░C	-55 °C	Black	Thermoplastic	UL94 V-0	Crimp	Contacts Not Included		A	16	Unshielded	9
TE Connectivity Raychem Cable Protection 206486-2	For Male Pins			Circular	Receptacle Housing	105 ░C	-55 °C	Black	Thermoplastic	UL94 V-0	Crimp	Contacts Not Included		Keyed	20	Unshielded	9		9	11	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection 208717-1	For Female Sockets	Flange		Circular	Receptacle Housing	125 °C	-55 °C	Silver	Thermoplastic	UL94 V-0	Crimp	Contacts Not Included	Zinc	Keyed	16	Shielded	7		14	7			Nickel
TE Connectivity Raychem Cable Protection 213603-5	Stamped																							Pin	50 µin	1.27 µm	14 AWG	18 AWG	Crimp	Brass	Tin
TE Connectivity Raychem Cable Protection 182641-1	For Female Sockets	Flange	17-14	Circular	Receptacle Housing	105 ░C	-55 °C	Black	Thermoplastic	UL94 V-0	Crimp	Contacts Not Included		Keyed	16	Unshielded	14
TE Connectivity Raychem Cable Protection 206966-9	Backshell Cable Clamp									UL94 V-0								Clamp Screws														CPC Connectors	180 °	0.453 in	11.51 mm	Thermoplastic	3/4-20 UNEF	Black	13	2 Screws 5 pcs - 3 pc Cable Clamp	0.95 in	24.13 mm
