211825-1
ActiveTE Connectivity Raychem Cable Protection

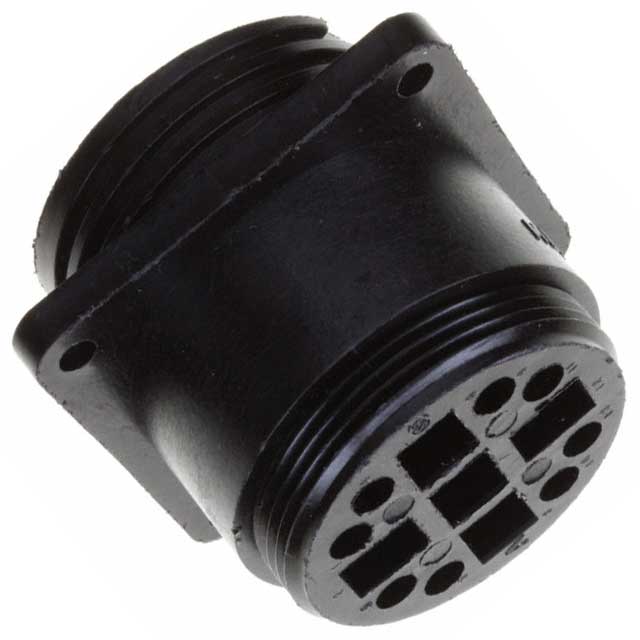

CPC RECPT ASSEMBLY SIZE 23-13
Deep-Dive with AI
Search across all available documentation for this part.
211825-1
ActiveTE Connectivity Raychem Cable Protection
CPC RECPT ASSEMBLY SIZE 23-13
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 211825-1 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular, Rectangular |
| Contact Type | Crimp |
| Housing Color | Black |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Note | Contacts Not Included |
| Number of Positions | 13 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Keyed |
| Shell Size - Insert | 23-13M |
| Shielding | Unshielded |
| Type | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.19 | |
| 10 | $ 10.36 | |||
| 25 | $ 9.71 | |||
| 50 | $ 9.25 | |||
| 100 | $ 8.81 | |||
| 250 | $ 8.26 | |||
| 500 | $ 7.86 | |||
| 1000 | $ 7.49 | |||
Description
General part information
AMP Circular Plastic Connectors Series
Standard Circular Connector SLD CPC RCPT ASSY 17-16 STD SX
