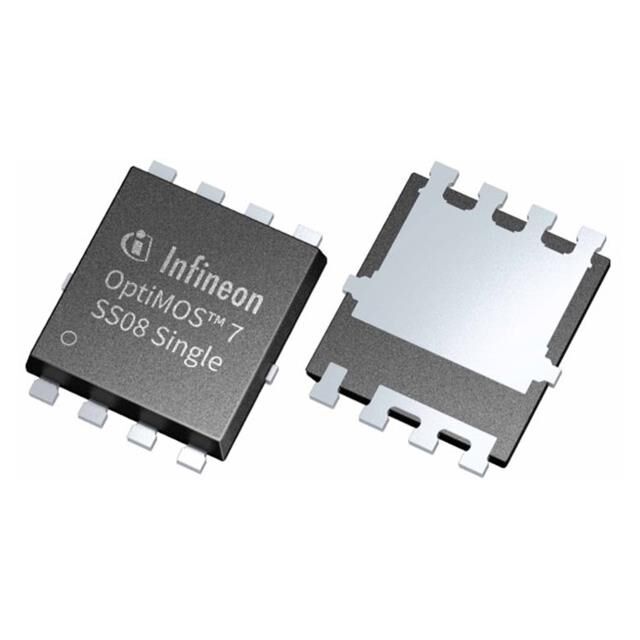

IAUC120N06S5N017ATMA1

Active

Infineon Technologies

IAUC120N06S5N017 IS AN AUTOMOTIVE MOSFET OFFERING 60V, N-CH, 1.7 MΩ MAX, SSO8 (5X6), OPTIMOS™ 5, AEC-Q101 QUALIFIED, ROHS COMPLIANT, 100% AVALANCHE TESTED.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IAUC120N06S5N017ATMA1

Active

Infineon Technologies

IAUC120N06S5N017 IS AN AUTOMOTIVE MOSFET OFFERING 60V, N-CH, 1.7 MΩ MAX, SSO8 (5X6), OPTIMOS™ 5, AEC-Q101 QUALIFIED, ROHS COMPLIANT, 100% AVALANCHE TESTED.

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IAUC120N06S5N017ATMA1

Current - Continuous Drain (Id) @ 25°C	120 A
Drain to Source Voltage (Vdss)	60 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	95.9 nC
Grade	Automotive
Input Capacitance (Ciss) (Max) @ Vds	6952 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	8-PowerTDFN
Power Dissipation (Max)	167 W
Qualification	AEC-Q101
Rds On (Max) @ Id, Vgs	1.7 mOhm
Supplier Device Package	PG-TDSON-8-43
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	3.4 V

IAUC120 Series

Part	Qualification	Mounting Type	Supplier Device Package	Power Dissipation (Max)	Drain to Source Voltage (Vdss)	Drive Voltage (Max Rds On, Min Rds On)	Gate Charge (Qg) (Max) @ Vgs	Input Capacitance (Ciss) (Max) @ Vds	Rds On (Max) @ Id, Vgs	Current - Continuous Drain (Id) @ 25°C	Grade	Technology	FET Type	Vgs (Max)	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Vgs(th) (Max) @ Id	Gate Charge (Qg) (Max) @ Vgs [Max]	Rds On (Max) @ Id, Vgs [Max]
Infineon Technologies IAUC120N04S6L012ATMA1	AEC-Q101	Surface Mount	PG-TDSON-8	115 W	40 V	4.5 V 10 V	80 nC	4832 pF	1.21 mOhm	120 A	Automotive	MOSFET (Metal Oxide)	N-Channel	16 V	8-PowerTDFN	-55 °C	175 ░C	2 V
Infineon Technologies IAUC120N04S6L005ATMA1	AEC-Q101	Surface Mount	PG-TDSON-8-53	187 W	40 V	4.5 V 10 V		11203 pF		120 A	Automotive	MOSFET (Metal Oxide)	N-Channel	16 V	8-PowerTDFN	-55 °C	175 ░C	2 V	177 nC
Infineon Technologies IAUC120N04S6N006ATMA1	AEC-Q101	Surface Mount	PG-TDSON-8-53	187 W	40 V		151 nC	10117 pF		120 A	Automotive	MOSFET (Metal Oxide)	N-Channel	20 V	8-PowerTDFN	-55 °C	175 ░C	3 V		0.6 mOhm
Infineon Technologies IAUC120N06S5N017ATMA1	AEC-Q101	Surface Mount	PG-TDSON-8-43	167 W	60 V		95.9 nC	6952 pF	1.7 mOhm	120 A	Automotive	MOSFET (Metal Oxide)	N-Channel	20 V	8-PowerTDFN	-55 °C	175 ░C	3.4 V
Infineon Technologies IAUC120N04S6L009ATMA1	AEC-Q101	Surface Mount	PG-TDSON-8-34	150 W	40 V	4.5 V 10 V	128 nC	7806 pF	960 mOhm	150 A	Automotive	MOSFET (Metal Oxide)	N-Channel	16 V	8-PowerTDFN	-55 °C	175 ░C	2 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.61
		10	$ 1.62
		100	$ 1.35
		500	$ 1.18
	Digi-Reel®	1	$ 2.61
		10	$ 1.62
		100	$ 1.35
		500	$ 1.18
	Tape & Reel (TR)	5000	$ 0.96
Newark	Each (Supplied on Full Reel)	5000	$ 1.00

Description

General part information

IAUC120 Series

N-Channel 60 V 120A (Tj) 167W (Tc) Surface Mount PG-TDSON-8-43
