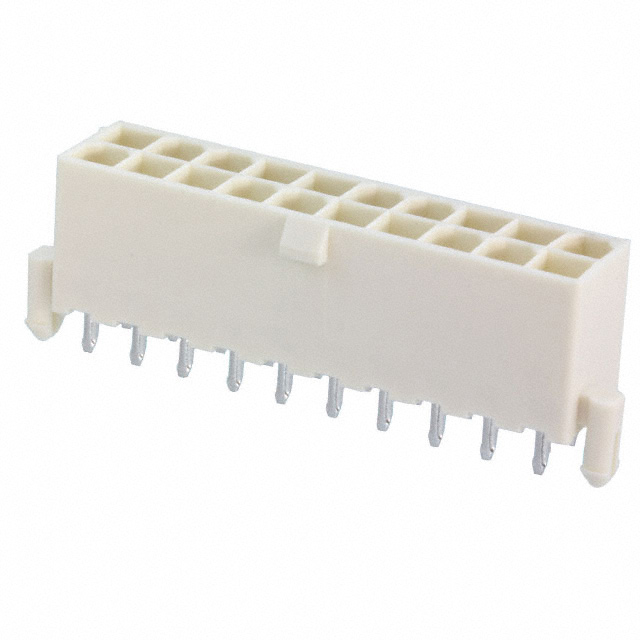

2-2029265-0
ActiveTE Connectivity Raychem Cable Protection
20P VAL-U-LOK VRTHDR W/PGS GW
Deep-Dive with AI
Search across all available documentation for this part.
2-2029265-0
ActiveTE Connectivity Raychem Cable Protection
20P VAL-U-LOK VRTHDR W/PGS GW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-2029265-0 |
|---|---|
| Applications | General Purpose, Industrial, Lighting |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Post | 3.5 mm |
| Contact Length - Post | 0.138 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 9 A |
| Fastening Type | Locking Ramp |
| Features | Board Lock, Glow Wire Compliant |
| Insulation Color | White |
| Insulation Height | 12.8 mm |
| Insulation Height | 0.504 in |
| Insulation Material | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 4.2 mm |
| Pitch - Mating | 0.165 in |
| Row Spacing - Mating | 4.2 mm |
| Row Spacing - Mating | 0.165 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.47 | |
| 10 | $ 2.04 | |||
| 80 | $ 1.72 | |||
| 440 | $ 1.50 | |||
| 945 | $ 1.41 | |||
| 4900 | $ 1.23 | |||
Description
General part information
VAL-U-LOK Series
Headers & Wire Housings 18P R/A HDR SCRW MNT UL-94-V0 BLUE
