1-2029265-6
ActiveTE Connectivity Raychem Cable Protection

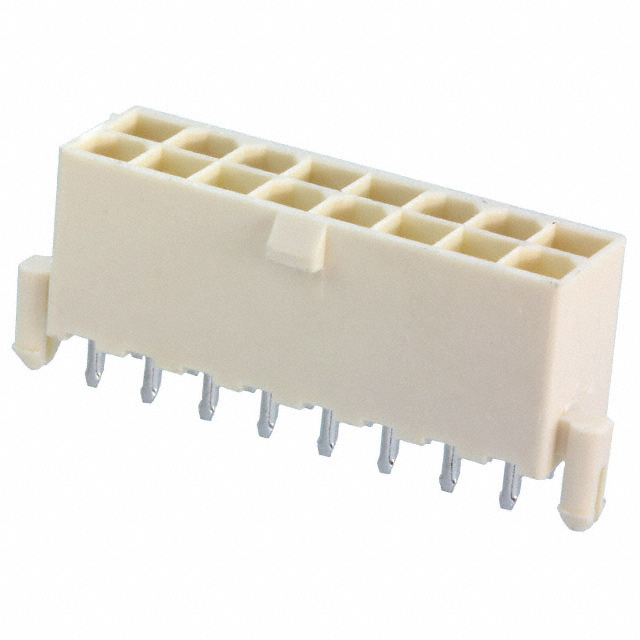

16P VAL-U-LOK VRTHDR W/PGS GW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2029265-6 |
|---|---|
| Applications | General Purpose, Industrial, Lighting |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Post | 3.5 mm |
| Contact Length - Post | 0.138 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Locking Ramp |
| Features | Board Lock, Glow Wire Compliant |
| Insulation Color | White |
| Insulation Height | 12.8 mm |
| Insulation Height | 0.504 in |
| Insulation Material | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 16 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 4.2 mm |
| Pitch - Mating | 0.165 in |
| Row Spacing - Mating | 4.2 mm |
| Row Spacing - Mating | 0.165 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 600 VAC |
