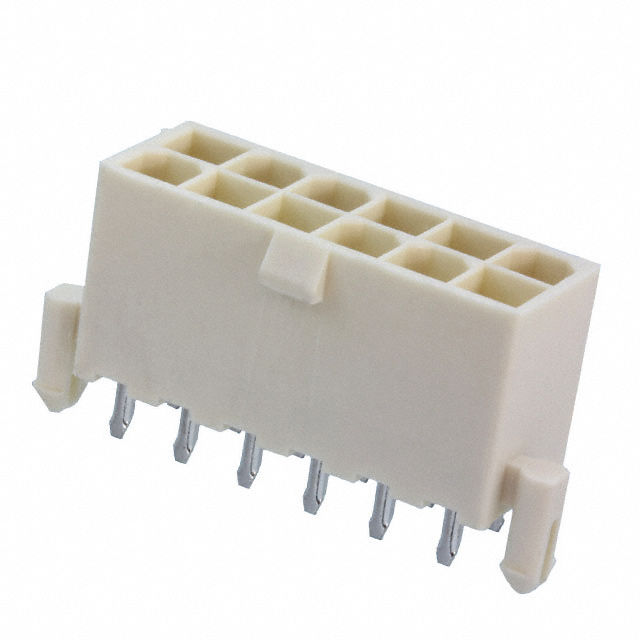

1-2029265-2

Active

TE Connectivity Raychem Cable Protection

CONN HEADER VERT 12POS 4.2MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1-2029265-2

Applications	General Purpose, Industrial, Lighting
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Features	Board Lock, Glow Wire Compliant
Insulation Color	White
Insulation Height	12.8 mm
Insulation Height	0.504 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	4.2 mm
Pitch - Mating	0.165 in
Row Spacing - Mating	4.2 mm
Row Spacing - Mating	0.165 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	600 VAC

VAL-U-LOK Series

Headers & Wire Housings 18P R/A HDR SCRW MNT UL-94-V0 BLUE

Part	Features	Number of Rows	Contact Finish - Post	Number of Positions	Shrouding	Material Flammability Rating	Contact Material	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Contact Type	Contact Length - Post	Contact Length - Post	Voltage Rating	Style	Current Rating (Amps)	Insulation Color	Mounting Type	Connector Type	Insulation Material	Insulation Height	Insulation Height	Termination	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish	Pin or Socket	Contact Finish Thickness	Contact Finish Thickness	Number of Positions
TE Connectivity Raychem Cable Protection 2029265-6	Board Lock Glow Wire Compliant	2	Tin	6	Shrouded - 4 Wall	UL94 V-0	Brass	Square	4.2 mm	0.165 in	Locking Ramp	Male Pin	3.5 mm	0.138 in	600 VAC	Board to Cable/Wire	9 A	White	Through Hole	Header	Nylon Polyamide (PA)	12.8 mm	0.504 in	Solder	All	4.2 mm	0.165 in	General Purpose Industrial Lighting	-40 °C	105 ░C
TE Connectivity Raychem Cable Protection 1586316-4																															Crimp	22 AWG	26 AWG	Gold	Pin	0.76 Ám	30 Áin
TE Connectivity Raychem Cable Protection 1-2029265-6	Board Lock Glow Wire Compliant	2	Tin		Shrouded - 4 Wall	UL94 V-0	Brass	Square	4.2 mm	0.165 in	Locking Ramp	Male Pin	3.5 mm	0.138 in	600 VAC	Board to Cable/Wire		White	Through Hole	Header	Nylon Polyamide (PA)	12.8 mm	0.504 in	Solder	All	4.2 mm	0.165 in	General Purpose Industrial Lighting	-40 °C	105 ░C								16
TE Connectivity Raychem Cable Protection 1-2029265-4	Board Lock Glow Wire Compliant	2	Tin	14	Shrouded - 4 Wall	UL94 V-0	Brass	Square	4.2 mm	0.165 in	Locking Ramp	Male Pin	3.5 mm	0.138 in	600 VAC	Board to Cable/Wire		White	Through Hole	Header	Nylon Polyamide (PA)	12.8 mm	0.504 in	Solder	All	4.2 mm	0.165 in	General Purpose Industrial Lighting	-40 °C	105 ░C
TE Connectivity Raychem Cable Protection 2-2029265-0	Board Lock Glow Wire Compliant	2	Tin	20	Shrouded - 4 Wall	UL94 V-0	Brass	Square	4.2 mm	0.165 in	Locking Ramp	Male Pin	3.5 mm	0.138 in	600 VAC	Board to Cable/Wire	9 A	White	Through Hole	Header	Nylon Polyamide (PA)	12.8 mm	0.504 in	Solder	All	4.2 mm	0.165 in	General Purpose Industrial Lighting	-40 °C	105 ░C
TE Connectivity Raychem Cable Protection 1-2029265-2	Board Lock Glow Wire Compliant	2	Tin	12	Shrouded - 4 Wall	UL94 V-0	Brass	Square	4.2 mm	0.165 in	Locking Ramp	Male Pin	3.5 mm	0.138 in	600 VAC	Board to Cable/Wire		White	Through Hole	Header	Nylon Polyamide (PA)	12.8 mm	0.504 in	Solder	All	4.2 mm	0.165 in	General Purpose Industrial Lighting	-40 °C	105 ░C
