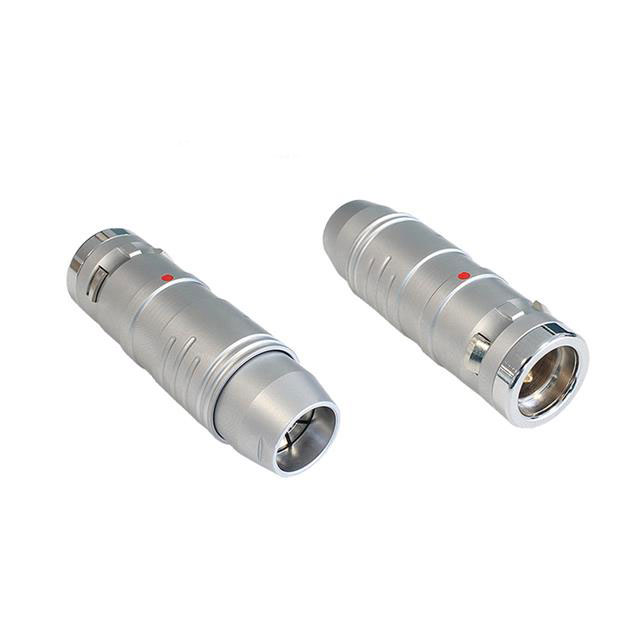

PPCFGG3K06CLAD

Active

BULGIN LIMITED

CIRCULAR CONNECTOR, PUSH PULL Y SERIES, STRAIGHT PLUG, 6 CONTACTS, SOLDER PIN, PUSH-PULL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

PPCFGG3K06CLAD

Active

BULGIN LIMITED

CIRCULAR CONNECTOR, PUSH PULL Y SERIES, STRAIGHT PLUG, 6 CONTACTS, SOLDER PIN, PUSH-PULL

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PPCFGG3K06CLAD

Backshell Material, Plating	Brass, Chrome
Cable Opening [Max] [custom]	7 mm
Cable Opening [Max] [custom]	0.276 in
Cable Opening [Min] [custom]	0.26 in
Cable Opening [Min] [custom]	6.6 mm
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Material	Brass
Current Rating (Amps)	17 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP66
Insert Material	Polyphenylene Sulfide (PPS)
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-50 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shielding	Shielded

PPCFGG Series

Part	Ingress Protection	Mounting Type	Shell Material	Shell Finish	Contact Material	Orientation	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Current Rating (Amps)	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Color	Features	Contact Finish - Mating	Backshell Material, Plating	Shielding	Connector Type	Primary Material	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Cable Opening [Max] [custom]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]
BULGIN LIMITED PPCFGG2B18CLAD	IP50	Free Hanging (In-Line)	Brass	Chrome	Brass	G	7.3 mm	0.315 in	0.287 in	8 mm	5.5 Amps	Push-Pull	-50 °C	200 °C	Polyphenylene Sulfide (PPS)	Silver	Backshell	Gold	Brass Chrome	Shielded	Male Pins Plug	Metal	18	3 µin	0.076 µm
BULGIN LIMITED PPCFGG2B05CLAD	IP50	Free Hanging (In-Line)	Brass	Chrome	Brass	G	4.3 mm	0.197 in	0.169 in	5 mm	14 A	Push-Pull	-50 °C	200 °C	Polyphenylene Sulfide (PPS)	Silver	Backshell	Gold	Brass Chrome	Shielded	Male Pins Plug	Metal		3 µin	0.076 µm
BULGIN LIMITED PPCFGG2K14CLAD	IP66	Free Hanging (In-Line)	Brass	Chrome	Brass	G	6.6 mm	0.276 in	0.26 in		6.5 A	Push-Pull	-50 °C	200 °C	Polyphenylene Sulfide (PPS)	Silver	Backshell	Gold	Brass Chrome	Shielded	Male Pins Plug	Metal	14	3 µin	0.076 µm	7 mm
BULGIN LIMITED PPCFGG2K12CLAD	IP66	Free Hanging (In-Line)	Brass	Chrome	Brass	G					7 A	Push-Pull	-50 °C	200 °C	Polyphenylene Sulfide (PPS)	Silver	Backshell	Gold	Brass Chrome	Shielded	Male Pins Plug	Metal	12	3 µin	0.076 µm		0.22 in 0.236 in	5.6 mm 6 mm
BULGIN LIMITED PPCFGG2B02CLAD	IP50	Free Hanging (In-Line)	Brass	Chrome	Brass	G	4.3 mm	0.197 in	0.169 in	5 mm	30 A	Push-Pull	-50 °C	200 °C	Polyphenylene Sulfide (PPS)	Silver	Backshell	Gold	Brass Chrome	Shielded	Male Pins Plug	Metal	2	3 µin	0.076 µm
BULGIN LIMITED PPCFGG1B03CLAD	IP50	Free Hanging (In-Line)	Brass	Chrome	Brass	G	4.3 mm	0.197 in	0.169 in	5 mm	12 A	Push-Pull	-50 °C	200 °C	Polyphenylene Sulfide (PPS)	Silver	Backshell	Gold	Brass Chrome	Shielded	Male Pins Plug	Metal		3 µin	0.076 µm
BULGIN LIMITED PPCFGG3K05CLAD	IP66	Free Hanging (In-Line)	Brass	Chrome	Brass	G	6.6 mm	0.276 in	0.26 in		19 A	Push-Pull	-50 °C	200 °C	Polyphenylene Sulfide (PPS)	Silver	Backshell	Gold	Brass Chrome	Shielded	Male Pins Plug	Metal		3 µin	0.076 µm	7 mm
BULGIN LIMITED PPCFGG3B06CLAD	IP50	Free Hanging (In-Line)	Brass	Chrome	Brass	G					17 A	Push-Pull	-50 °C	200 °C	Polyphenylene Sulfide (PPS)	Silver	Backshell	Gold	Brass Chrome	Shielded	Male Pins Plug	Metal	6	3 µin	0.076 µm				6.3 mm 7 mm	0.248 in 0.276 in
BULGIN LIMITED PPCFGG3K06CLAD	IP66	Free Hanging (In-Line)	Brass	Chrome	Brass	G	6.6 mm	0.276 in	0.26 in		17 A	Push-Pull	-50 °C	200 °C	Polyphenylene Sulfide (PPS)	Silver	Backshell	Gold	Brass Chrome	Shielded	Male Pins Plug	Metal	6	3 µin	0.076 µm	7 mm
BULGIN LIMITED PPCFGG1K02CLAD	IP66	Free Hanging (In-Line)	Brass	Chrome	Brass	G					10 A	Push-Pull	-50 °C	200 °C	Polyphenylene Sulfide (PPS)	Silver	Backshell	Gold	Brass Chrome	Shielded	Male Pins Plug	Metal	2	3 µin	0.076 µm						4.6 mm	5 mm	0.181 in	0.197 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 97.73

Description

General part information

PPCFGG Series

6 Position Circular Connector Plug, Male Pins Solder Cup
