PPCFGG2K12CLAD
ActiveBULGIN LIMITED

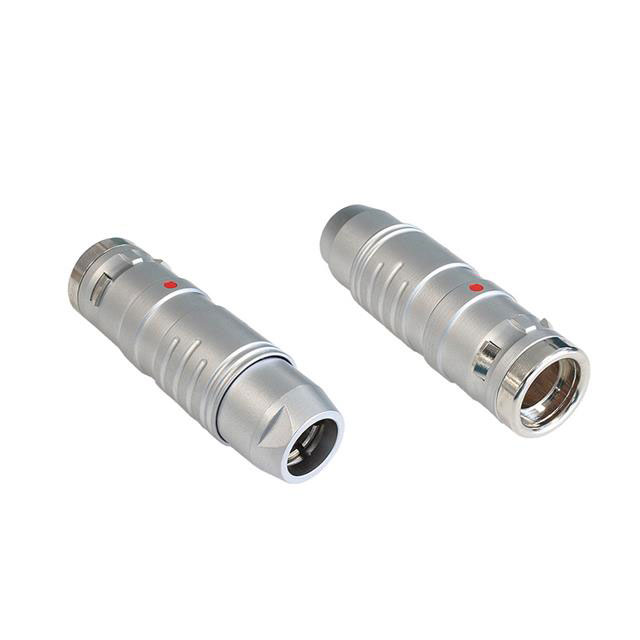

CIRCULAR CONNECTOR, PUSH PULL Y SERIES, STRAIGHT PLUG, 12 CONTACTS, SOLDER PIN, PUSH-PULL
Deep-Dive with AI
Search across all available documentation for this part.
PPCFGG2K12CLAD
ActiveBULGIN LIMITED
CIRCULAR CONNECTOR, PUSH PULL Y SERIES, STRAIGHT PLUG, 12 CONTACTS, SOLDER PIN, PUSH-PULL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PPCFGG2K12CLAD |
|---|---|
| Backshell Material, Plating | Brass, Chrome |
| Cable Opening [custom] | 0.236 in, 0.22 in |
| Cable Opening [custom] | 5.6 mm, 6 mm |
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 3 µin |
| Contact Finish Thickness - Mating | 0.076 µm |
| Contact Material | Brass |
| Current Rating (Amps) | 7 A |
| Fastening Type | Push-Pull |
| Features | Backshell |
| Ingress Protection | IP66 |
| Insert Material | Polyphenylene Sulfide (PPS) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 12 |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -50 °C |
| Orientation | G |
| Primary Material | Metal |
| Shell Finish | Chrome |
| Shell Material | Brass |
| Shielding | Shielded |
PPCFGG Series
| Part | Ingress Protection | Mounting Type | Shell Material | Shell Finish | Contact Material | Orientation | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Current Rating (Amps) | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Insert Material | Color | Features | Contact Finish - Mating | Backshell Material, Plating | Shielding | Connector Type | Primary Material | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Cable Opening [Max] [custom] | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [diameter] | Cable Opening [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BULGIN LIMITED | IP50 | Free Hanging (In-Line) | Brass | Chrome | Brass | G | 7.3 mm | 0.315 in | 0.287 in | 8 mm | 5.5 Amps | Push-Pull | -50 °C | 200 °C | Polyphenylene Sulfide (PPS) | Silver | Backshell | Gold | Brass Chrome | Shielded | Male Pins Plug | Metal | 18 | 3 µin | 0.076 µm | |||||||||
BULGIN LIMITED | IP50 | Free Hanging (In-Line) | Brass | Chrome | Brass | G | 4.3 mm | 0.197 in | 0.169 in | 5 mm | 14 A | Push-Pull | -50 °C | 200 °C | Polyphenylene Sulfide (PPS) | Silver | Backshell | Gold | Brass Chrome | Shielded | Male Pins Plug | Metal | 3 µin | 0.076 µm | ||||||||||
BULGIN LIMITED | IP66 | Free Hanging (In-Line) | Brass | Chrome | Brass | G | 6.6 mm | 0.276 in | 0.26 in | 6.5 A | Push-Pull | -50 °C | 200 °C | Polyphenylene Sulfide (PPS) | Silver | Backshell | Gold | Brass Chrome | Shielded | Male Pins Plug | Metal | 14 | 3 µin | 0.076 µm | 7 mm | |||||||||
BULGIN LIMITED | IP66 | Free Hanging (In-Line) | Brass | Chrome | Brass | G | 7 A | Push-Pull | -50 °C | 200 °C | Polyphenylene Sulfide (PPS) | Silver | Backshell | Gold | Brass Chrome | Shielded | Male Pins Plug | Metal | 12 | 3 µin | 0.076 µm | 0.22 in 0.236 in | 5.6 mm 6 mm | |||||||||||
BULGIN LIMITED | IP50 | Free Hanging (In-Line) | Brass | Chrome | Brass | G | 4.3 mm | 0.197 in | 0.169 in | 5 mm | 30 A | Push-Pull | -50 °C | 200 °C | Polyphenylene Sulfide (PPS) | Silver | Backshell | Gold | Brass Chrome | Shielded | Male Pins Plug | Metal | 2 | 3 µin | 0.076 µm | |||||||||
BULGIN LIMITED | IP50 | Free Hanging (In-Line) | Brass | Chrome | Brass | G | 4.3 mm | 0.197 in | 0.169 in | 5 mm | 12 A | Push-Pull | -50 °C | 200 °C | Polyphenylene Sulfide (PPS) | Silver | Backshell | Gold | Brass Chrome | Shielded | Male Pins Plug | Metal | 3 µin | 0.076 µm | ||||||||||
BULGIN LIMITED | IP66 | Free Hanging (In-Line) | Brass | Chrome | Brass | G | 6.6 mm | 0.276 in | 0.26 in | 19 A | Push-Pull | -50 °C | 200 °C | Polyphenylene Sulfide (PPS) | Silver | Backshell | Gold | Brass Chrome | Shielded | Male Pins Plug | Metal | 3 µin | 0.076 µm | 7 mm | ||||||||||
BULGIN LIMITED | IP50 | Free Hanging (In-Line) | Brass | Chrome | Brass | G | 17 A | Push-Pull | -50 °C | 200 °C | Polyphenylene Sulfide (PPS) | Silver | Backshell | Gold | Brass Chrome | Shielded | Male Pins Plug | Metal | 6 | 3 µin | 0.076 µm | 6.3 mm 7 mm | 0.248 in 0.276 in | |||||||||||
BULGIN LIMITED | IP66 | Free Hanging (In-Line) | Brass | Chrome | Brass | G | 6.6 mm | 0.276 in | 0.26 in | 17 A | Push-Pull | -50 °C | 200 °C | Polyphenylene Sulfide (PPS) | Silver | Backshell | Gold | Brass Chrome | Shielded | Male Pins Plug | Metal | 6 | 3 µin | 0.076 µm | 7 mm | |||||||||
BULGIN LIMITED | IP66 | Free Hanging (In-Line) | Brass | Chrome | Brass | G | 10 A | Push-Pull | -50 °C | 200 °C | Polyphenylene Sulfide (PPS) | Silver | Backshell | Gold | Brass Chrome | Shielded | Male Pins Plug | Metal | 2 | 3 µin | 0.076 µm | 4.6 mm | 5 mm | 0.181 in | 0.197 in |
