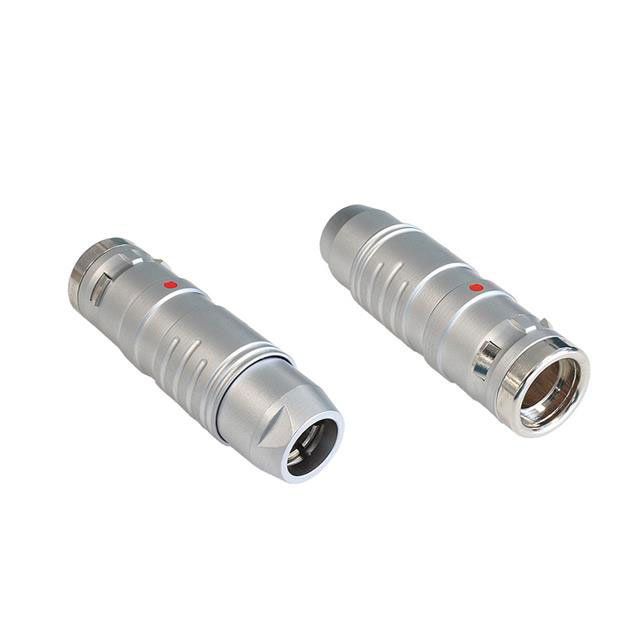

Specification	PPCFGG2K14CLAD

Backshell Material	Brass
Cable Opening (Max)	0.276 in
Cable Opening (Min)	0.26 in
Color	Silver
Connector Type	Male Pins, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3 µin
Contact Material	Brass
Current Rating	6.5 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP66
Insert Material	Polyphenylene Sulfide, PPS
Mounting Type	Free Hanging (In-Line)
Number of Positions	14
Operating Temperature (Max)	200 °C
Operating Temperature (Min)	-50 °C
Orientation	G
Plating	Chrome
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shielding	Shielded
Termination	Solder Cup

PPCFGG Series

Part	Plating	Backshell Material	Shell Material	Connector Type	Orientation	Features	Operating Temperature (Max)	Operating Temperature (Min)	Fastening Type	Shielding	Color	Contact Material	Contact Finish - Mating	Contact Finish Thickness - Mating	Mounting Type	Number of Positions	Termination	Insert Material	Shell Finish	Ingress Protection Description	Ingress Protection IP Rating	Primary Material	Cable Opening (Max)	Cable Opening (Min)	Current Rating
BULGIN LIMITED PPCFGG1K16CLAD	Chrome	Brass	Brass	Male Pins Plug	G	Backshell	200 °C	-50 °C	Push-Pull	Shielded	Silver	Brass	Gold	3 µin	Free Hanging (In-Line)	16	Solder Cup	Polyphenylene Sulfide PPS	Chrome	Dust Tight Water Resistant	IP66	Metal
BULGIN LIMITED PPCFGG2B18CLAD	Chrome	Brass	Brass	Male Pins Plug	G	Backshell	200 °C	-50 °C	Push-Pull	Shielded	Silver	Brass	Gold	3 µin	Free Hanging (In-Line)	18	Solder Cup	Polyphenylene Sulfide PPS	Chrome	Dust Protected	IP50	Metal	0.315 in	0.287 in	5.5 A
BULGIN LIMITED PPCFGG2B05CLAD	Chrome	Brass	Brass	Male Pins Plug	G	Backshell	200 °C	-50 °C	Push-Pull	Shielded	Silver	Brass	Gold	3 µin	Free Hanging (In-Line)	5	Solder Cup	Polyphenylene Sulfide PPS	Chrome	Dust Protected	IP50	Metal	0.197 in	0.169 in	14 A
BULGIN LIMITED PPCFGG2K14CLAD	Chrome	Brass	Brass	Male Pins Plug	G	Backshell	200 °C	-50 °C	Push-Pull	Shielded	Silver	Brass	Gold	3 µin	Free Hanging (In-Line)	14	Solder Cup	Polyphenylene Sulfide PPS	Chrome	Dust Tight Water Resistant	IP66	Metal	0.276 in	0.26 in	6.5 A
BULGIN LIMITED PPCFGG2K12CLAD	Chrome	Brass	Brass	Male Pins Plug	G	Backshell	200 °C	-50 °C	Push-Pull	Shielded	Silver	Brass	Gold	3 µin	Free Hanging (In-Line)	12	Solder Cup	Polyphenylene Sulfide PPS	Chrome	Dust Tight Water Resistant	IP66	Metal	0.236 in	0.22 in	7 A
BULGIN LIMITED PPCFGG2B02CLAD	Chrome	Brass	Brass	Male Pins Plug	G	Backshell	200 °C	-50 °C	Push-Pull	Shielded	Silver	Brass	Gold	3 µin	Free Hanging (In-Line)	2	Solder Cup	Polyphenylene Sulfide PPS	Chrome	Dust Protected	IP50	Metal	0.197 in	0.169 in	30 A
BULGIN LIMITED PPCFGG1B03CLAD	Chrome	Brass	Brass	Male Pins Plug	G	Backshell	200 °C	-50 °C	Push-Pull	Shielded	Silver	Brass	Gold	3 µin	Free Hanging (In-Line)	3	Solder Cup	Polyphenylene Sulfide PPS	Chrome	Dust Protected	IP50	Metal	0.197 in	0.169 in	12 A
BULGIN LIMITED PPCFGG3K05CLAD	Chrome	Brass	Brass	Male Pins Plug	G	Backshell	200 °C	-50 °C	Push-Pull	Shielded	Silver	Brass	Gold	3 µin	Free Hanging (In-Line)	5	Solder Cup	Polyphenylene Sulfide PPS	Chrome	Dust Tight Water Resistant	IP66	Metal	0.276 in	0.26 in	19 A
BULGIN LIMITED PPCFGG1B06CLAD	Chrome	Brass	Brass	Male Pins Plug	G	Backshell	200 °C	-50 °C	Push-Pull	Shielded	Silver	Brass	Gold	3 µin	Free Hanging (In-Line)	6	Solder Cup	Polyphenylene Sulfide PPS	Chrome	Dust Protected	IP50	Metal	0.197 in	0.169 in	7 A
BULGIN LIMITED PPCFGG1B04CLAD	Chrome	Brass	Brass	Male Pins Plug	G	Backshell	200 °C	-50 °C	Push-Pull	Shielded	Silver	Brass	Gold	3 µin	Free Hanging (In-Line)	4	Solder Cup	Polyphenylene Sulfide PPS	Chrome	Dust Protected	IP50	Metal	0.197 in	0.169 in	10 A
