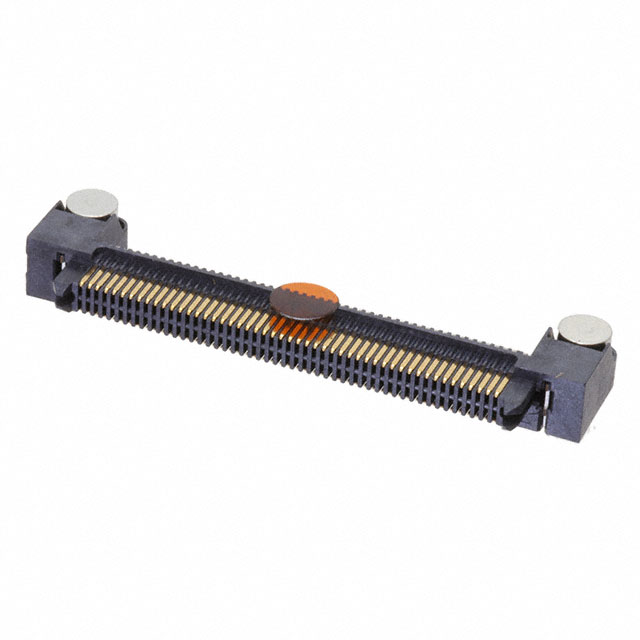

ERM8-050-01-L-D-RA-K-TR

Active

Samtec Inc.

CONN MICRO HIGH SPEED TERMINAL STRIP HDR 100 POS 0.8MM SOLDER RA SIDE ENTRY SMD EDGE RATE® T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 0.80 mm Edge Rate® Rugged High Speed Terminal, Right-Angle +2

ERM8-050-01-L-D-RA-K-TR

Active

Samtec Inc.

CONN MICRO HIGH SPEED TERMINAL STRIP HDR 100 POS 0.8MM SOLDER RA SIDE ENTRY SMD EDGE RATE® T/R

Deep-Dive with AI

DocumentsDatasheet 0.80 mm Edge Rate® Rugged High Speed Terminal, Right-Angle +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERM8-050-01-L-D-RA-K-TR

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place, Board Guide
Height Above Board	6.25 mm
Height Above Board	0.246 in
Mounting Type	Surface Mount, Right Angle
Number of Positions	100
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

ERM8-050 Series

Part	Pitch [x]	Pitch [x]	Features	Height Above Board	Height Above Board	Number of Rows	Contact Finish	Number of Positions	Connector Type	Mounting Type	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness
Samtec Inc. ERM8-050-02.0-L-DV-K-TR	0.8 mm	0.031 in	Board Guide Pick and Place	5.97 mm	0.235 in	2	Gold	100	Header Center Strip Contacts	Surface Mount	7 mm 9 mm 12 mm	10 Áin	0.25 Ám
Samtec Inc. ERM8-050-03-L-D-RA-L-K-TR	0.8 mm	0.031 in	Board Guide Latches Mounting Flange Pick and Place	6.25 mm	0.246 in	2	Gold	100	Header Center Strip Contacts	Surface Mount Right Angle		10 Áin	0.25 Ám
Samtec Inc. ERM8-050-08.0-S-DV-TR	0.8 mm	0.031 in	Board Guide	8.91 mm	0.351 in	2	Gold	100	Header Center Strip Contacts	Surface Mount	10 mm 12 mm 15 mm	30 Áin	0.76 Ám
Samtec Inc. ERM8-050-05.0-L-DV-TR	0.8 mm	0.031 in	Board Guide	8.91 mm	0.351 in	2	Gold	100	Header Center Strip Contacts	Surface Mount	10 mm 12 mm 15 mm	10 Áin	0.25 Ám
Samtec Inc. ERM8-050-08.0-L-DV-K	0.8 mm	0.031 in	Board Guide Pick and Place	8.91 mm	0.351 in	2	Gold	100	Header Center Strip Contacts	Surface Mount	10 mm 12 mm 15 mm	10 Áin	0.25 Ám
Samtec Inc. ERM8-050-01-L-D-RA-K-TR	0.8 mm	0.031 in	Board Guide Pick and Place	6.25 mm	0.246 in	2	Gold	100	Header Center Strip Contacts	Surface Mount Right Angle		10 Áin	0.25 Ám
Samtec Inc. ERM8-050-05.0-S-DV-EGP-K-TR	0.8 mm	0.031 in	Board Guide Mating Guide Pick and Place	8.91 mm	0.351 in	2	Gold	100	Header Center Strip Contacts	Surface Mount	10 mm 12 mm 15 mm	30 Áin	0.76 Ám
Samtec Inc. ERM8-050-02.0-L-DV-TR	0.8 mm	0.031 in	Board Guide	5.97 mm	0.235 in	2	Gold	100	Header Center Strip Contacts	Surface Mount	7 mm 9 mm 12 mm	10 Áin	0.25 Ám
Samtec Inc. ERM8-050-02.0-L-DV-DSS-K-TR	0.8 mm	0.031 in	Board Guide Mating Guide Pick and Place	5.97 mm	0.235 in	2	Gold	100	Differential Pair Array Male	Surface Mount	7 mm 9 mm 12 mm	10 Áin	0.25 Ám
Samtec Inc. ERM8-050-05.0-L-DV-EGP-K-TR	0.8 mm	0.031 in	Board Guide Mating Guide Pick and Place	8.91 mm	0.351 in	2	Gold	100	Header Center Strip Contacts	Surface Mount	10 mm 12 mm 15 mm	10 Áin	0.25 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 11.31
		10	$ 10.21
		25	$ 9.65
		50	$ 9.36
		100	$ 8.22
Digikey	Cut Tape (CT)	1	$ 11.30
		10	$ 10.21
		25	$ 9.65
		50	$ 9.36
		100	$ 8.22
	Tape & Reel (TR)	200	$ 8.22
		600	$ 7.79

Description

General part information

ERM8-050 Series

100 Position Connector Header, Center Strip Contacts Surface Mount, Right Angle Gold

ERM8-050-01-L-D-RA-K-TR

Deep-Dive with AI

ERM8-050-01-L-D-RA-K-TR

Deep-Dive with AI

Technical Specifications

ERM8-050 Series

Pricing

Description

ERM8-050 Series

Documents

Datasheet

0.80 mm Edge Rate® Rugged High Speed Terminal, Right-Angle

ERM8 Datasheet

ERF8 Series Other Related Documents 03

ERM8-050 Series
