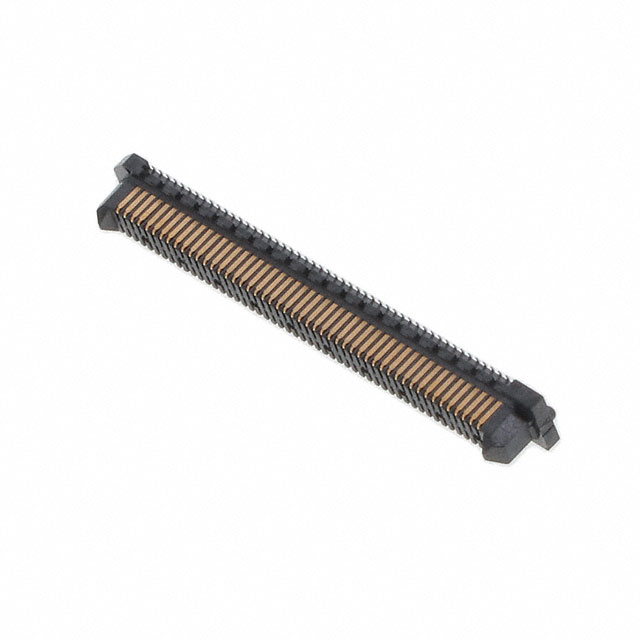

ERM8-050-02.0-L-DV-K-TR

Obsolete

Samtec Inc.

CONN MICRO HIGH SPEED TERMINAL STRIP HDR 100 POS 0.8MM SOLDER ST SMD T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ERM8 Spec Datasheet

ERM8-050-02.0-L-DV-K-TR

Obsolete

Samtec Inc.

CONN MICRO HIGH SPEED TERMINAL STRIP HDR 100 POS 0.8MM SOLDER ST SMD T/R

Deep-Dive with AI

DocumentsDatasheet ERM8 Spec Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ERM8-050-02.0-L-DV-K-TR

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place, Board Guide
Height Above Board	5.97 mm
Height Above Board	0.235 in
Mated Stacking Heights	7 mm, 12 mm, 9 mm
Mounting Type	Surface Mount
Number of Positions	100
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

ERM8-050 Series

Part	Pitch [x]	Pitch [x]	Features	Height Above Board	Height Above Board	Number of Rows	Contact Finish	Number of Positions	Connector Type	Mounting Type	Mated Stacking Heights	Contact Finish Thickness	Contact Finish Thickness
Samtec Inc. ERM8-050-02.0-L-DV-K-TR	0.8 mm	0.031 in	Board Guide Pick and Place	5.97 mm	0.235 in	2	Gold	100	Header Center Strip Contacts	Surface Mount	7 mm 9 mm 12 mm	10 Áin	0.25 Ám
Samtec Inc. ERM8-050-03-L-D-RA-L-K-TR	0.8 mm	0.031 in	Board Guide Latches Mounting Flange Pick and Place	6.25 mm	0.246 in	2	Gold	100	Header Center Strip Contacts	Surface Mount Right Angle		10 Áin	0.25 Ám
Samtec Inc. ERM8-050-08.0-S-DV-TR	0.8 mm	0.031 in	Board Guide	8.91 mm	0.351 in	2	Gold	100	Header Center Strip Contacts	Surface Mount	10 mm 12 mm 15 mm	30 Áin	0.76 Ám
Samtec Inc. ERM8-050-05.0-L-DV-TR	0.8 mm	0.031 in	Board Guide	8.91 mm	0.351 in	2	Gold	100	Header Center Strip Contacts	Surface Mount	10 mm 12 mm 15 mm	10 Áin	0.25 Ám
Samtec Inc. ERM8-050-08.0-L-DV-K	0.8 mm	0.031 in	Board Guide Pick and Place	8.91 mm	0.351 in	2	Gold	100	Header Center Strip Contacts	Surface Mount	10 mm 12 mm 15 mm	10 Áin	0.25 Ám
Samtec Inc. ERM8-050-01-L-D-RA-K-TR	0.8 mm	0.031 in	Board Guide Pick and Place	6.25 mm	0.246 in	2	Gold	100	Header Center Strip Contacts	Surface Mount Right Angle		10 Áin	0.25 Ám
Samtec Inc. ERM8-050-05.0-S-DV-EGP-K-TR	0.8 mm	0.031 in	Board Guide Mating Guide Pick and Place	8.91 mm	0.351 in	2	Gold	100	Header Center Strip Contacts	Surface Mount	10 mm 12 mm 15 mm	30 Áin	0.76 Ám
Samtec Inc. ERM8-050-02.0-L-DV-TR	0.8 mm	0.031 in	Board Guide	5.97 mm	0.235 in	2	Gold	100	Header Center Strip Contacts	Surface Mount	7 mm 9 mm 12 mm	10 Áin	0.25 Ám
Samtec Inc. ERM8-050-02.0-L-DV-DSS-K-TR	0.8 mm	0.031 in	Board Guide Mating Guide Pick and Place	5.97 mm	0.235 in	2	Gold	100	Differential Pair Array Male	Surface Mount	7 mm 9 mm 12 mm	10 Áin	0.25 Ám
Samtec Inc. ERM8-050-05.0-L-DV-EGP-K-TR	0.8 mm	0.031 in	Board Guide Mating Guide Pick and Place	8.91 mm	0.351 in	2	Gold	100	Header Center Strip Contacts	Surface Mount	10 mm 12 mm 15 mm	10 Áin	0.25 Ám
