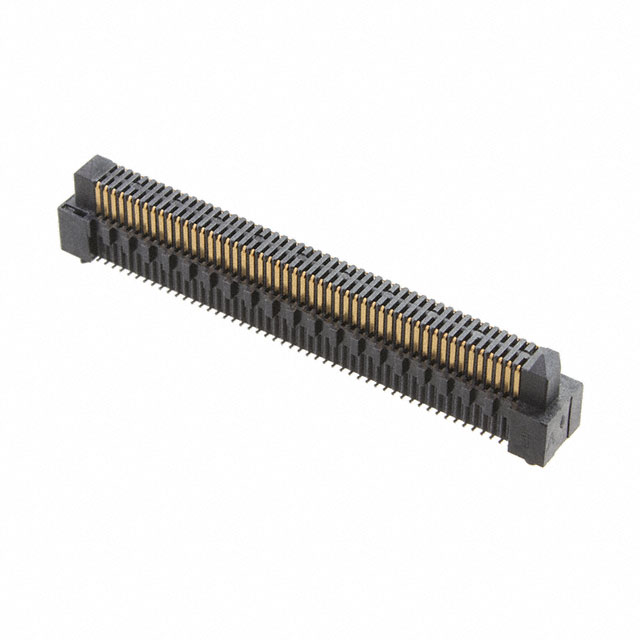

ERM8-050-05.0-L-DV-TR
ActiveSamtec Inc.
CONN HDR 100POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
ERM8-050-05.0-L-DV-TR
ActiveSamtec Inc.
CONN HDR 100POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ERM8-050-05.0-L-DV-TR |
|---|---|
| Connector Type | Header, Center Strip Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Features | Board Guide |
| Height Above Board | 8.91 mm |
| Height Above Board | 0.351 in |
| Mated Stacking Heights | 12 mm, 15 mm, 10 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 100 |
| Number of Rows | 2 |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.82 | |
| 10 | $ 6.17 | |||
| 25 | $ 5.83 | |||
| 50 | $ 5.65 | |||
| 100 | $ 4.95 | |||
| Tape & Reel (TR) | 250 | $ 4.95 | ||
| 500 | $ 4.40 | |||
Description
General part information
ERM8-050 Series
100 Position Connector Header, Center Strip Contacts Surface Mount Gold
