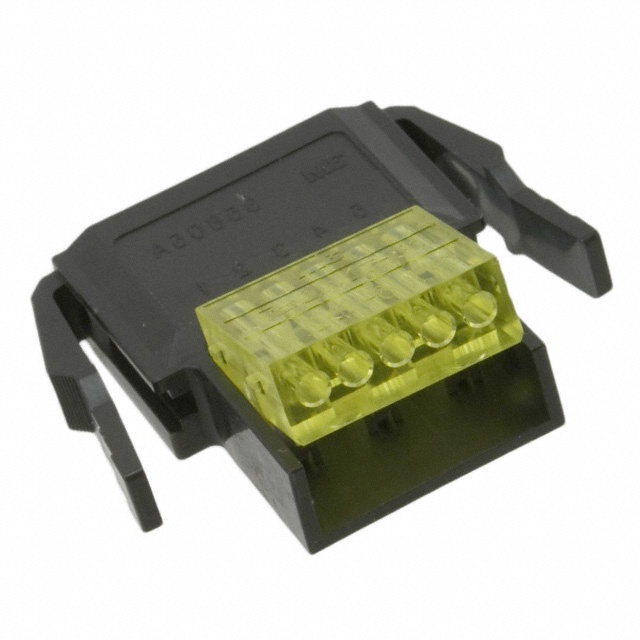

35805-6200-AP0GF

Active

3M (TC)

IDC CONNECTOR, IDC PLUG, MALE, 3 MM, 1 ROW, 5 CONTACTS, CABLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

Documents3M Power Clamp System Datasheet +1

35805-6200-AP0GF

Active

3M (TC)

IDC CONNECTOR, IDC PLUG, MALE, 3 MM, 1 ROW, 5 CONTACTS, CABLE MOUNT

Deep-Dive with AI

Documents3M Power Clamp System Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	35805-6200-AP0GF

Cable Termination	IDC
Color	Black
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	0.51 µm
Contact Finish Thickness	20 µin
Contact Type	Female Socket
Fastening Type	Latch Lock
Number of Rows	1
Pitch [x]	3 mm
Pitch [x]	0.118 in
Wire Gauge	20 AWG
Wire Type	Discrete

35805 Series

Part	Pitch [x]	Pitch [x]	Cable Termination	Mounting Type	Wire Type	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Contact Type	Contact Finish	Color	Wire Gauge	Number of Rows	Fastening Type
3M (TC) 35805-6180-A00GF	3 mm	0.118 in	IDC	Free Hanging (In-Line)	Discrete	0.51 µm	20 µin	Plug	Female Socket	Gold	Black	18 AWG	1
3M (TC) 35805-6080-A00GF	3 mm	0.118 in	IDC	Free Hanging (In-Line)	Discrete	0.51 µm	20 µin	Plug	Female Socket	Gold	Black	18 AWG	1
3M (TC) 35805-6180-AP0GF	3 mm	0.118 in	IDC		Discrete	0.51 µm	20 µin	Plug	Female Socket	Gold	Black	18 AWG	1	Latch Lock
3M (TC) 35805-6000-B0MGF	3 mm	0.118 in	IDC	Free Hanging (In-Line)	Discrete	0.51 µm	20 µin	Plug	Female Socket	Gold	Black	20 AWG	1
3M (TC) 35805-6200-A00GF	3 mm	0.118 in	IDC	Free Hanging (In-Line)	Discrete	0.51 µm	20 µin	Plug	Female Socket	Gold	Black	20 AWG	1
3M (TC) 35805-6000-BPMGF	3 mm	0.118 in	IDC		Discrete	0.51 µm	20 µin	Plug	Female Socket	Gold	Black	20 AWG	1	Latch Lock
3M (TC) 35805-6080-AP0GF	3 mm	0.118 in	IDC		Discrete	0.51 µm	20 µin	Plug	Female Socket	Gold	Black	18 AWG	1	Latch Lock
3M (TC) 35805-6200-AP0GF	3 mm	0.118 in	IDC		Discrete	0.51 µm	20 µin	Plug	Female Socket	Gold	Black	20 AWG	1	Latch Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.05
		10	$ 3.67
		25	$ 3.48
		50	$ 3.40
		100	$ 3.24
		300	$ 2.85
LCSC	Piece	1	$ 2.26
		200	$ 0.90
		500	$ 0.87
		1000	$ 0.86
Newark	Each	100	$ 5.67
		250	$ 5.00
		500	$ 4.85
		1000	$ 4.12

Description

General part information

35805 Series

3M™ power clamp wiremount plug, 358 series featuring IDC termination offer a time-saving, reliable and field-installable wiring solution. It is suitable for wiring applications using 3-4 wires 20 to 18AWG and requiring 250V, 6.0-10.0A max. Common applications are field networking systems.

Documents

Technical documentation and resources

3M Power Clamp System

Datasheet

Technical Data Sheet EN

Datasheet
