35805-6000-BPMGF

Active

3M (TC)

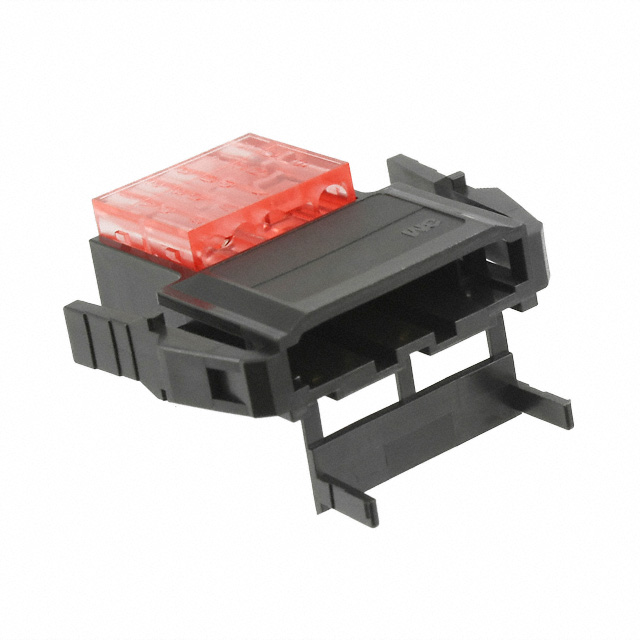

3M POWER CLAMP WIREMOUNT PLUG, 358 SERIES, 35805-6000-BPMGF

Search across all available documentation for this part.

Active

3M (TC)

3M POWER CLAMP WIREMOUNT PLUG, 358 SERIES, 35805-6000-BPMGF

Technical Specifications

Parameters and characteristics for this part

Part	Pitch [x]	Pitch [x]	Cable Termination	Mounting Type	Wire Type	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Contact Type	Contact Finish	Color	Wire Gauge	Number of Rows	Fastening Type
3M (TC) 35805-6180-A00GF	3 mm	0.118 in	IDC	Free Hanging (In-Line)	Discrete	0.51 µm	20 µin	Plug	Female Socket	Gold	Black	18 AWG	1
3M (TC) 35805-6080-A00GF	3 mm	0.118 in	IDC	Free Hanging (In-Line)	Discrete	0.51 µm	20 µin	Plug	Female Socket	Gold	Black	18 AWG	1
3M (TC) 35805-6180-AP0GF	3 mm	0.118 in	IDC		Discrete	0.51 µm	20 µin	Plug	Female Socket	Gold	Black	18 AWG	1	Latch Lock
3M (TC) 35805-6000-B0MGF	3 mm	0.118 in	IDC	Free Hanging (In-Line)	Discrete	0.51 µm	20 µin	Plug	Female Socket	Gold	Black	20 AWG	1
3M (TC) 35805-6200-A00GF	3 mm	0.118 in	IDC	Free Hanging (In-Line)	Discrete	0.51 µm	20 µin	Plug	Female Socket	Gold	Black	20 AWG	1
3M (TC) 35805-6000-BPMGF	3 mm	0.118 in	IDC		Discrete	0.51 µm	20 µin	Plug	Female Socket	Gold	Black	20 AWG	1	Latch Lock
3M (TC) 35805-6080-AP0GF	3 mm	0.118 in	IDC		Discrete	0.51 µm	20 µin	Plug	Female Socket	Gold	Black	18 AWG	1	Latch Lock
3M (TC) 35805-6200-AP0GF	3 mm	0.118 in	IDC		Discrete	0.51 µm	20 µin	Plug	Female Socket	Gold	Black	20 AWG	1	Latch Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Rectangular Plug Connector IDC Gold 20 AWG
