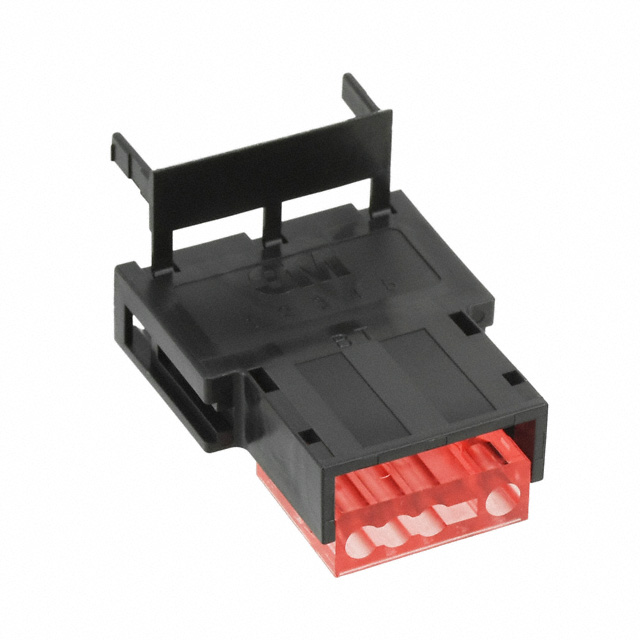

35805-6000-B0MGF

Active

3M (TC)

CONN PLUG 5POS IDC 20AWG GOLD

Search across all available documentation for this part.

Active

3M (TC)

CONN PLUG 5POS IDC 20AWG GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Pitch [x]	Pitch [x]	Cable Termination	Mounting Type	Wire Type	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Contact Type	Contact Finish	Color	Wire Gauge	Number of Rows	Fastening Type
3M (TC) 35805-6180-A00GF	3 mm	0.118 in	IDC	Free Hanging (In-Line)	Discrete	0.51 µm	20 µin	Plug	Female Socket	Gold	Black	18 AWG	1
3M (TC) 35805-6080-A00GF	3 mm	0.118 in	IDC	Free Hanging (In-Line)	Discrete	0.51 µm	20 µin	Plug	Female Socket	Gold	Black	18 AWG	1
3M (TC) 35805-6180-AP0GF	3 mm	0.118 in	IDC		Discrete	0.51 µm	20 µin	Plug	Female Socket	Gold	Black	18 AWG	1	Latch Lock
3M (TC) 35805-6000-B0MGF	3 mm	0.118 in	IDC	Free Hanging (In-Line)	Discrete	0.51 µm	20 µin	Plug	Female Socket	Gold	Black	20 AWG	1
3M (TC) 35805-6200-A00GF	3 mm	0.118 in	IDC	Free Hanging (In-Line)	Discrete	0.51 µm	20 µin	Plug	Female Socket	Gold	Black	20 AWG	1
3M (TC) 35805-6000-BPMGF	3 mm	0.118 in	IDC		Discrete	0.51 µm	20 µin	Plug	Female Socket	Gold	Black	20 AWG	1	Latch Lock
3M (TC) 35805-6080-AP0GF	3 mm	0.118 in	IDC		Discrete	0.51 µm	20 µin	Plug	Female Socket	Gold	Black	18 AWG	1	Latch Lock
3M (TC) 35805-6200-AP0GF	3 mm	0.118 in	IDC		Discrete	0.51 µm	20 µin	Plug	Female Socket	Gold	Black	20 AWG	1	Latch Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

5 Position Rectangular Plug Connector IDC Gold 20 AWG
