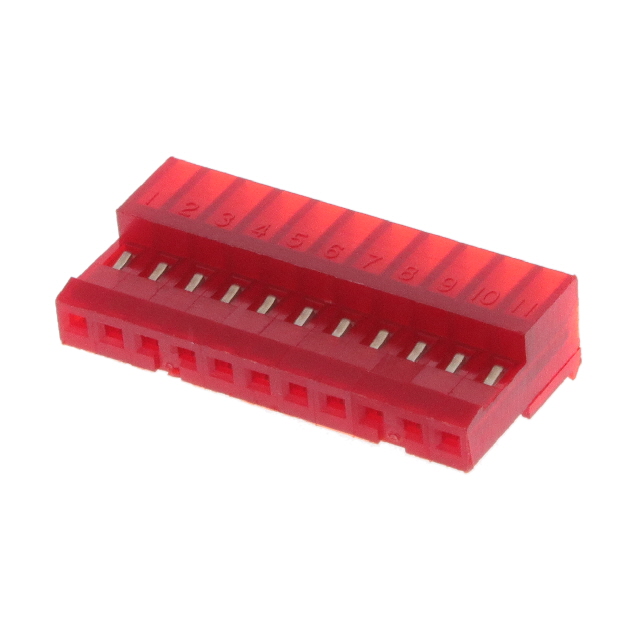

4-641237-1

Active

TE Connectivity Raychem Cable Protection

11P MTA100 CONN ASSY RED 30AU

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Application Specification - MTA 100 Connector System +5

4-641237-1

Active

TE Connectivity Raychem Cable Protection

11P MTA100 CONN ASSY RED 30AU

Deep-Dive with AI

DocumentsDatasheet Application Specification - MTA 100 Connector System +5

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4-641237-1

Cable Termination	IDC
Color	Red
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Type	Female Socket
Fastening Type	Locking Ramp
Features	Closed End
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	11
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Wire Gauge	22 AWG
Wire Type	Discrete or Ribbon Cable

MTA-100 Series

Headers & Wire Housings IDC CONTACTS 22 AWG Tin plated

Part	Number of Rows	Shrouding	Overall Contact Length	Overall Contact Length	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Material	Number of Positions	Current Rating (Amps)	Features	Pitch - Mating	Pitch - Mating	Style	Material Flammability Rating	Connector Type	Number of Positions Loaded	Mounting Type	Contact Finish - Mating	Contact Type	Fastening Type	Contact Shape	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Applications	Insulation Color	Voltage Rating	Insulation Material	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Wire Type	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Pitch [x]	Pitch [x]	Wire Gauge	Color
TE Connectivity Raychem Cable Protection 644486-2	1	Shrouded - 4 Wall	0.44 in	11.18 mm	5.08 mm	0.2 in	Copper Alloy	2	Varies by Wire Gauge	Board Guide	0.1 in	2.54 mm	Board to Cable/Wire	UL94 V-0	Header	All	Through Hole	Tin-Lead	Male Pin	Friction Lock	Square	Tin-Lead	3.56 mm	0.14 in	General Purpose	Black	250 VAC	Polyester	Solder	105 ░C	-55 °C
TE Connectivity Raychem Cable Protection 3-644486-2	1	Shrouded - 4 Wall	0.44 in	11.18 mm	5.08 mm	0.2 in	Copper Alloy	12	Varies by Wire Gauge	Board Guide	0.1 in	2.54 mm	Board to Cable/Wire	UL94 V-0	Header	All	Through Hole		Male Pin	Friction Lock	Square	Tin	3.56 mm	0.14 in	General Purpose	Black	250 VAC	Polyester	Solder	105 ░C	-55 °C
TE Connectivity Raychem Cable Protection 644486-6	1	Shrouded - 4 Wall	0.44 in	11.18 mm	5.08 mm	0.2 in	Copper Alloy	6	Varies by Wire Gauge	Board Guide	0.1 in	2.54 mm	Board to Cable/Wire	UL94 V-0	Header	All	Through Hole	Tin-Lead	Male Pin	Friction Lock	Square	Tin-Lead	3.56 mm	0.14 in	General Purpose	Black	250 VAC	Polyester	Solder	105 ░C	-55 °C
TE Connectivity Raychem Cable Protection 2-644486-2	1	Shrouded - 4 Wall	0.44 in	11.18 mm	5.08 mm	0.2 in	Copper Alloy	2	Varies by Wire Gauge	Board Guide	0.1 in	2.54 mm	Board to Cable/Wire	UL94 V-0	Header	All	Through Hole		Male Pin	Friction Lock	Square	Tin	3.56 mm	0.14 in	General Purpose	Black	250 VAC	Polyester	Solder	105 ░C	-55 °C
TE Connectivity Raychem Cable Protection 3-647047-4	1	Shrouded - 1 Wall	0.55 in	13.97 mm			Copper Alloy	4	Varies by Wire Gauge		0.1 in	2.54 mm	Board to Cable/Wire	UL94 V-0	Header	All	Through Hole		Male Pin		Square	Tin	3.43 mm	0.135 in	General Purpose	Black	250 VAC	Polyamide (PA46) Nylon 4/6	Solder	105 ░C	-55 °C	0.347 in	8.81 mm	0.29 in	7.37 mm
TE Connectivity Raychem Cable Protection 3-647047-5	1	Shrouded - 1 Wall	0.55 in	13.97 mm			Copper Alloy		Varies by Wire Gauge		0.1 in	2.54 mm	Board to Cable/Wire	UL94 V-0	Header	All	Through Hole		Male Pin		Square	Tin	3.43 mm	0.135 in	General Purpose	Black	250 VAC	Polyamide (PA46) Nylon 4/6	Solder	105 ░C	-55 °C	0.347 in	8.81 mm	0.29 in	7.37 mm
TE Connectivity Raychem Cable Protection 4-641237-1	1							11		Closed End					Receptacle		Free Hanging (In-Line) Right Angle		Female Socket	Locking Ramp																Discrete or Ribbon Cable	IDC	0.76 Ám	30 Áin	Gold	2.54 mm	0.1 in	22 AWG	Red
TE Connectivity Raychem Cable Protection 3-641237-2	1							2		Closed End					Receptacle		Free Hanging (In-Line) Right Angle		Female Socket	Locking Ramp																Discrete or Ribbon Cable	IDC	0.76 Ám	30 Áin	Gold	2.54 mm	0.1 in	22 AWG	Red
TE Connectivity Raychem Cable Protection 644564-8	1							8		Feed Through					Receptacle		Free Hanging (In-Line) Right Angle		Female Socket	Locking Ramp																Discrete or Ribbon Cable	IDC	2.03 Ám	80 Áin	Tin-Lead	2.54 mm	0.1 in	26 AWG	Blue
TE Connectivity Raychem Cable Protection 644486-3	1	Shrouded - 4 Wall	0.44 in	11.18 mm	5.08 mm	0.2 in	Copper Alloy		Varies by Wire Gauge	Board Guide	0.1 in	2.54 mm	Board to Cable/Wire	UL94 V-0	Header	All	Through Hole	Tin-Lead	Male Pin	Friction Lock	Square	Tin-Lead	3.56 mm	0.14 in	General Purpose	Black	250 VAC	Polyester	Solder	105 ░C	-55 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.44
		10	$ 3.89
		25	$ 3.79
		50	$ 3.71
		100	$ 3.59

Description

General part information

MTA-100 Series

Headers & Wire Housings IDC CONTACTS 22 AWG Tin plated
