644564-8

Obsolete

TE Connectivity Raychem Cable Protection

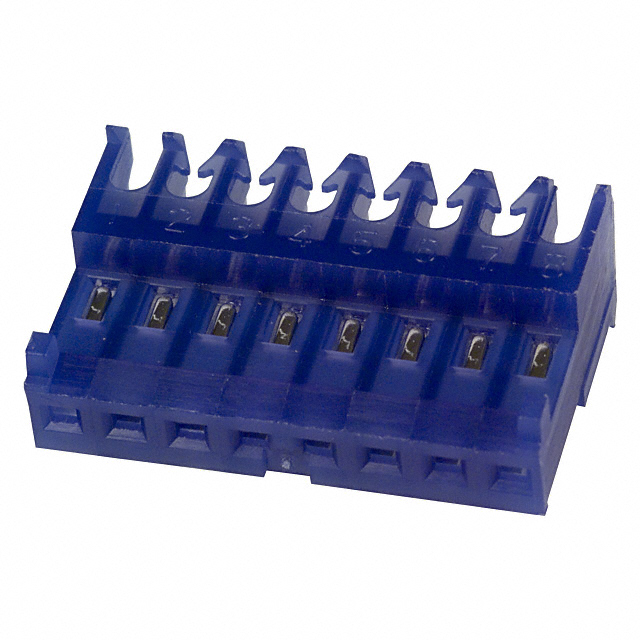

CONN RCPT 8P IDC 26AWG TIN-LEAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

644564-8

Obsolete

TE Connectivity Raychem Cable Protection

CONN RCPT 8P IDC 26AWG TIN-LEAD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	644564-8

Cable Termination	IDC
Color	Blue
Connector Type	Receptacle
Contact Finish	Tin-Lead
Contact Finish Thickness	80 Áin
Contact Finish Thickness	2.03 Ám
Contact Type	Female Socket
Fastening Type	Locking Ramp
Features	Feed Through
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	8
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Wire Gauge	26 AWG
Wire Type	Discrete or Ribbon Cable

MTA-100 Series

Headers & Wire Housings IDC CONTACTS 22 AWG Tin plated

Part	Number of Rows	Shrouding	Overall Contact Length	Overall Contact Length	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Material	Number of Positions	Current Rating (Amps)	Features	Pitch - Mating	Pitch - Mating	Style	Material Flammability Rating	Connector Type	Number of Positions Loaded	Mounting Type	Contact Finish - Mating	Contact Type	Fastening Type	Contact Shape	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Applications	Insulation Color	Voltage Rating	Insulation Material	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Wire Type	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Pitch [x]	Pitch [x]	Wire Gauge	Color
TE Connectivity Raychem Cable Protection 644486-2	1	Shrouded - 4 Wall	0.44 in	11.18 mm	5.08 mm	0.2 in	Copper Alloy	2	Varies by Wire Gauge	Board Guide	0.1 in	2.54 mm	Board to Cable/Wire	UL94 V-0	Header	All	Through Hole	Tin-Lead	Male Pin	Friction Lock	Square	Tin-Lead	3.56 mm	0.14 in	General Purpose	Black	250 VAC	Polyester	Solder	105 ░C	-55 °C
TE Connectivity Raychem Cable Protection 3-644486-2	1	Shrouded - 4 Wall	0.44 in	11.18 mm	5.08 mm	0.2 in	Copper Alloy	12	Varies by Wire Gauge	Board Guide	0.1 in	2.54 mm	Board to Cable/Wire	UL94 V-0	Header	All	Through Hole		Male Pin	Friction Lock	Square	Tin	3.56 mm	0.14 in	General Purpose	Black	250 VAC	Polyester	Solder	105 ░C	-55 °C
TE Connectivity Raychem Cable Protection 644486-6	1	Shrouded - 4 Wall	0.44 in	11.18 mm	5.08 mm	0.2 in	Copper Alloy	6	Varies by Wire Gauge	Board Guide	0.1 in	2.54 mm	Board to Cable/Wire	UL94 V-0	Header	All	Through Hole	Tin-Lead	Male Pin	Friction Lock	Square	Tin-Lead	3.56 mm	0.14 in	General Purpose	Black	250 VAC	Polyester	Solder	105 ░C	-55 °C
TE Connectivity Raychem Cable Protection 2-644486-2	1	Shrouded - 4 Wall	0.44 in	11.18 mm	5.08 mm	0.2 in	Copper Alloy	2	Varies by Wire Gauge	Board Guide	0.1 in	2.54 mm	Board to Cable/Wire	UL94 V-0	Header	All	Through Hole		Male Pin	Friction Lock	Square	Tin	3.56 mm	0.14 in	General Purpose	Black	250 VAC	Polyester	Solder	105 ░C	-55 °C
TE Connectivity Raychem Cable Protection 3-647047-4	1	Shrouded - 1 Wall	0.55 in	13.97 mm			Copper Alloy	4	Varies by Wire Gauge		0.1 in	2.54 mm	Board to Cable/Wire	UL94 V-0	Header	All	Through Hole		Male Pin		Square	Tin	3.43 mm	0.135 in	General Purpose	Black	250 VAC	Polyamide (PA46) Nylon 4/6	Solder	105 ░C	-55 °C	0.347 in	8.81 mm	0.29 in	7.37 mm
TE Connectivity Raychem Cable Protection 3-647047-5	1	Shrouded - 1 Wall	0.55 in	13.97 mm			Copper Alloy		Varies by Wire Gauge		0.1 in	2.54 mm	Board to Cable/Wire	UL94 V-0	Header	All	Through Hole		Male Pin		Square	Tin	3.43 mm	0.135 in	General Purpose	Black	250 VAC	Polyamide (PA46) Nylon 4/6	Solder	105 ░C	-55 °C	0.347 in	8.81 mm	0.29 in	7.37 mm
TE Connectivity Raychem Cable Protection 4-641237-1	1							11		Closed End					Receptacle		Free Hanging (In-Line) Right Angle		Female Socket	Locking Ramp																Discrete or Ribbon Cable	IDC	0.76 Ám	30 Áin	Gold	2.54 mm	0.1 in	22 AWG	Red
TE Connectivity Raychem Cable Protection 3-641237-2	1							2		Closed End					Receptacle		Free Hanging (In-Line) Right Angle		Female Socket	Locking Ramp																Discrete or Ribbon Cable	IDC	0.76 Ám	30 Áin	Gold	2.54 mm	0.1 in	22 AWG	Red
TE Connectivity Raychem Cable Protection 644564-8	1							8		Feed Through					Receptacle		Free Hanging (In-Line) Right Angle		Female Socket	Locking Ramp																Discrete or Ribbon Cable	IDC	2.03 Ám	80 Áin	Tin-Lead	2.54 mm	0.1 in	26 AWG	Blue
TE Connectivity Raychem Cable Protection 644486-3	1	Shrouded - 4 Wall	0.44 in	11.18 mm	5.08 mm	0.2 in	Copper Alloy		Varies by Wire Gauge	Board Guide	0.1 in	2.54 mm	Board to Cable/Wire	UL94 V-0	Header	All	Through Hole	Tin-Lead	Male Pin	Friction Lock	Square	Tin-Lead	3.56 mm	0.14 in	General Purpose	Black	250 VAC	Polyester	Solder	105 ░C	-55 °C
