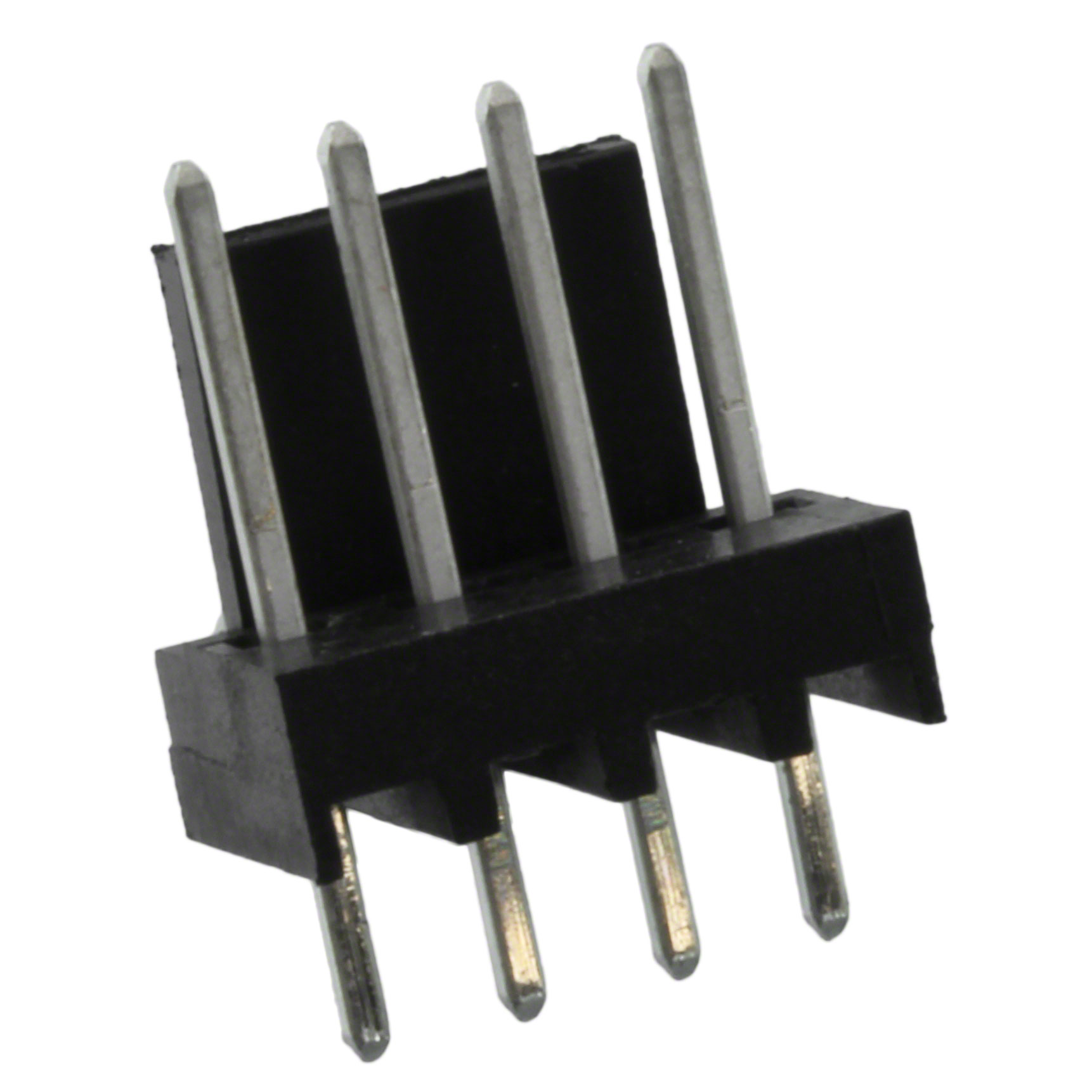

3-647047-4

Obsolete

TE Connectivity Raychem Cable Protection

CONN WIRE TO BOARD HDR 4 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BAG/BOX

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3-647047-4

Obsolete

TE Connectivity Raychem Cable Protection

CONN WIRE TO BOARD HDR 4 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE BAG/BOX

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3-647047-4

Applications	General Purpose
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.29 in
Contact Length - Mating	7.37 mm
Contact Length - Post [x]	0.135 in
Contact Length - Post [x]	3.43 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Insulation Color	Black
Insulation Height	0.347 in
Insulation Height	8.81 mm
Insulation Material	Polyamide (PA46), Nylon 4/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.55 in
Overall Contact Length	13.97 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

MTA-100 Series

Headers & Wire Housings IDC CONTACTS 22 AWG Tin plated

Part	Number of Rows	Shrouding	Overall Contact Length	Overall Contact Length	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Material	Number of Positions	Current Rating (Amps)	Features	Pitch - Mating	Pitch - Mating	Style	Material Flammability Rating	Connector Type	Number of Positions Loaded	Mounting Type	Contact Finish - Mating	Contact Type	Fastening Type	Contact Shape	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Applications	Insulation Color	Voltage Rating	Insulation Material	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Wire Type	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Pitch [x]	Pitch [x]	Wire Gauge	Color
TE Connectivity Raychem Cable Protection 644486-2	1	Shrouded - 4 Wall	0.44 in	11.18 mm	5.08 mm	0.2 in	Copper Alloy	2	Varies by Wire Gauge	Board Guide	0.1 in	2.54 mm	Board to Cable/Wire	UL94 V-0	Header	All	Through Hole	Tin-Lead	Male Pin	Friction Lock	Square	Tin-Lead	3.56 mm	0.14 in	General Purpose	Black	250 VAC	Polyester	Solder	105 ░C	-55 °C
TE Connectivity Raychem Cable Protection 3-644486-2	1	Shrouded - 4 Wall	0.44 in	11.18 mm	5.08 mm	0.2 in	Copper Alloy	12	Varies by Wire Gauge	Board Guide	0.1 in	2.54 mm	Board to Cable/Wire	UL94 V-0	Header	All	Through Hole		Male Pin	Friction Lock	Square	Tin	3.56 mm	0.14 in	General Purpose	Black	250 VAC	Polyester	Solder	105 ░C	-55 °C
TE Connectivity Raychem Cable Protection 644486-6	1	Shrouded - 4 Wall	0.44 in	11.18 mm	5.08 mm	0.2 in	Copper Alloy	6	Varies by Wire Gauge	Board Guide	0.1 in	2.54 mm	Board to Cable/Wire	UL94 V-0	Header	All	Through Hole	Tin-Lead	Male Pin	Friction Lock	Square	Tin-Lead	3.56 mm	0.14 in	General Purpose	Black	250 VAC	Polyester	Solder	105 ░C	-55 °C
TE Connectivity Raychem Cable Protection 2-644486-2	1	Shrouded - 4 Wall	0.44 in	11.18 mm	5.08 mm	0.2 in	Copper Alloy	2	Varies by Wire Gauge	Board Guide	0.1 in	2.54 mm	Board to Cable/Wire	UL94 V-0	Header	All	Through Hole		Male Pin	Friction Lock	Square	Tin	3.56 mm	0.14 in	General Purpose	Black	250 VAC	Polyester	Solder	105 ░C	-55 °C
TE Connectivity Raychem Cable Protection 3-647047-4	1	Shrouded - 1 Wall	0.55 in	13.97 mm			Copper Alloy	4	Varies by Wire Gauge		0.1 in	2.54 mm	Board to Cable/Wire	UL94 V-0	Header	All	Through Hole		Male Pin		Square	Tin	3.43 mm	0.135 in	General Purpose	Black	250 VAC	Polyamide (PA46) Nylon 4/6	Solder	105 ░C	-55 °C	0.347 in	8.81 mm	0.29 in	7.37 mm
TE Connectivity Raychem Cable Protection 3-647047-5	1	Shrouded - 1 Wall	0.55 in	13.97 mm			Copper Alloy		Varies by Wire Gauge		0.1 in	2.54 mm	Board to Cable/Wire	UL94 V-0	Header	All	Through Hole		Male Pin		Square	Tin	3.43 mm	0.135 in	General Purpose	Black	250 VAC	Polyamide (PA46) Nylon 4/6	Solder	105 ░C	-55 °C	0.347 in	8.81 mm	0.29 in	7.37 mm
TE Connectivity Raychem Cable Protection 4-641237-1	1							11		Closed End					Receptacle		Free Hanging (In-Line) Right Angle		Female Socket	Locking Ramp																Discrete or Ribbon Cable	IDC	0.76 Ám	30 Áin	Gold	2.54 mm	0.1 in	22 AWG	Red
TE Connectivity Raychem Cable Protection 3-641237-2	1							2		Closed End					Receptacle		Free Hanging (In-Line) Right Angle		Female Socket	Locking Ramp																Discrete or Ribbon Cable	IDC	0.76 Ám	30 Áin	Gold	2.54 mm	0.1 in	22 AWG	Red
TE Connectivity Raychem Cable Protection 644564-8	1							8		Feed Through					Receptacle		Free Hanging (In-Line) Right Angle		Female Socket	Locking Ramp																Discrete or Ribbon Cable	IDC	2.03 Ám	80 Áin	Tin-Lead	2.54 mm	0.1 in	26 AWG	Blue
TE Connectivity Raychem Cable Protection 644486-3	1	Shrouded - 4 Wall	0.44 in	11.18 mm	5.08 mm	0.2 in	Copper Alloy		Varies by Wire Gauge	Board Guide	0.1 in	2.54 mm	Board to Cable/Wire	UL94 V-0	Header	All	Through Hole	Tin-Lead	Male Pin	Friction Lock	Square	Tin-Lead	3.56 mm	0.14 in	General Purpose	Black	250 VAC	Polyester	Solder	105 ░C	-55 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	44	$ 1.44

Description

General part information

MTA-100 Series

Headers & Wire Housings IDC CONTACTS 22 AWG Tin plated
